Norsat RSLNBIMKU11T5 – 1:1 Ku Multi-Band LNB Redundant Switch System

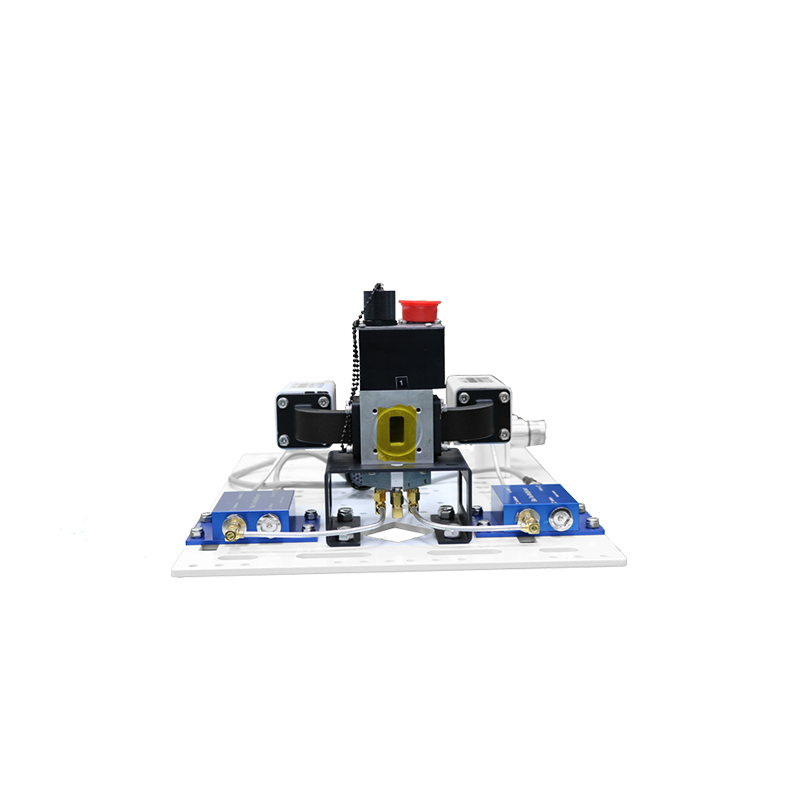

Norsat RSLNBIMKU11T5 Ku-Band 1:1 LNB Redundant Switch System

The Norsat RSLNBIMKU11T5 is a Ku-Band 1:1 LNB redundant switch system engineered to ensure uninterrupted SATCOM operation. Supporting internal reference multi-band LNBs, it automatically switches between primary and backup units with a fast 120 ms response. Optimized for Tx/Rx with 50 m IFL, it delivers reliable performance in demanding environments.

Band: Ku-Band

Redundancy: 1:1

Switchover Time: 120 ms max
Supported LNBs: Internal reference, multi-band (sold separately)
Tx/Rx Configuration: Tx/Rx with 50 m IFL
Input Connector: WR-75
Output Connector: N-Type
Insertion Loss: ≤0.5 dB max
Input VSWR: LNB dependent
Power: 90–264 VAC, 47–63 Hz
Environmental: -40°C to +60°C operating; <100% humidity
Dimensions: 483 x 159 x 295 mm; Weight: 9 kg
Packaging: 660 x 610 x 736 mm; 54.8 kg
Made in Canada; ECCN: EAR99; HS Code: 8517690000
