Norsat RSLNBXSKA12T3 – 1:2 Ka-Band LNB Redundant Switch System

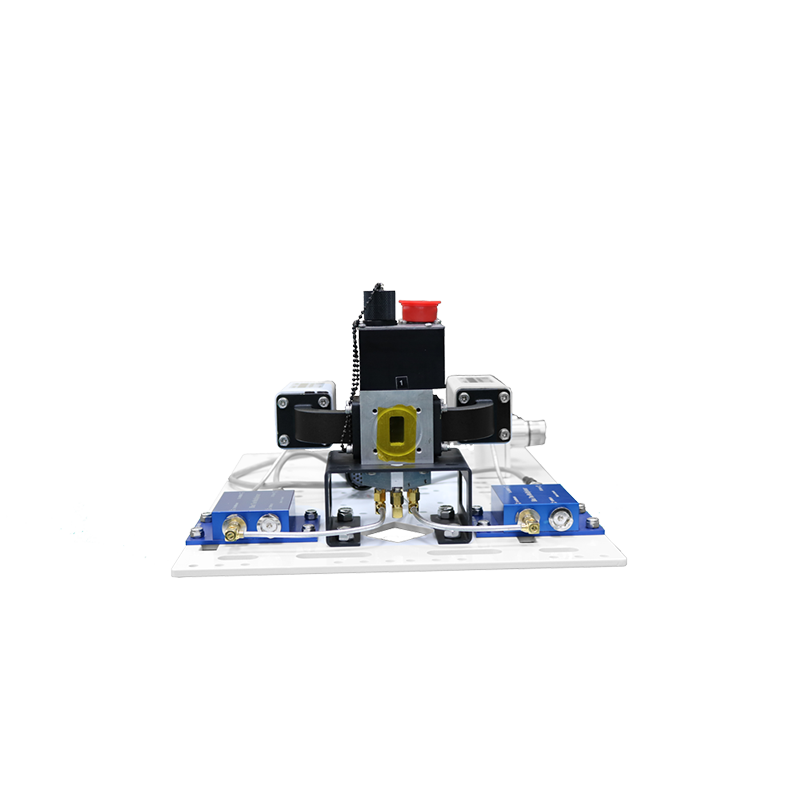

Norsat RSLNBXSKA12T3 Ka-Band 1:2 LNB Redundant Switch System

The Norsat RSLNBXSKA12T3 is a Ka-Band 1:2 LNB redundant switch system designed for continuous SATCOM service. Supporting external reference single-band LNBs, it provides automatic switchover between one primary and two backups with a fast 120 ms response. Optimized for Tx/Rx with 30 m IFL, it ensures reliable operation in demanding conditions.

Band: Ka-Band

Redundancy: 1:2

Switchover Time: 120 ms max
Supported LNBs: External reference, single-band (sold separately)
Tx/Rx Configuration: Tx/Rx with 30 m IFL
Input Connector: WR-42
Output Connector: N-Type
Insertion Loss: ≤0.5 dB max
Input VSWR: LNB dependent
Power: 90–264 VAC, 47–63 Hz
Environmental: -40°C to +60°C operating; <100% humidity
Dimensions: 483 x 159 x 295 mm; Weight: 9 kg
Packaging: 584 x 661 x 686 mm; 54.8 kg
Made in Canada; ECCN: EAR99; HS Code: 8517690000
