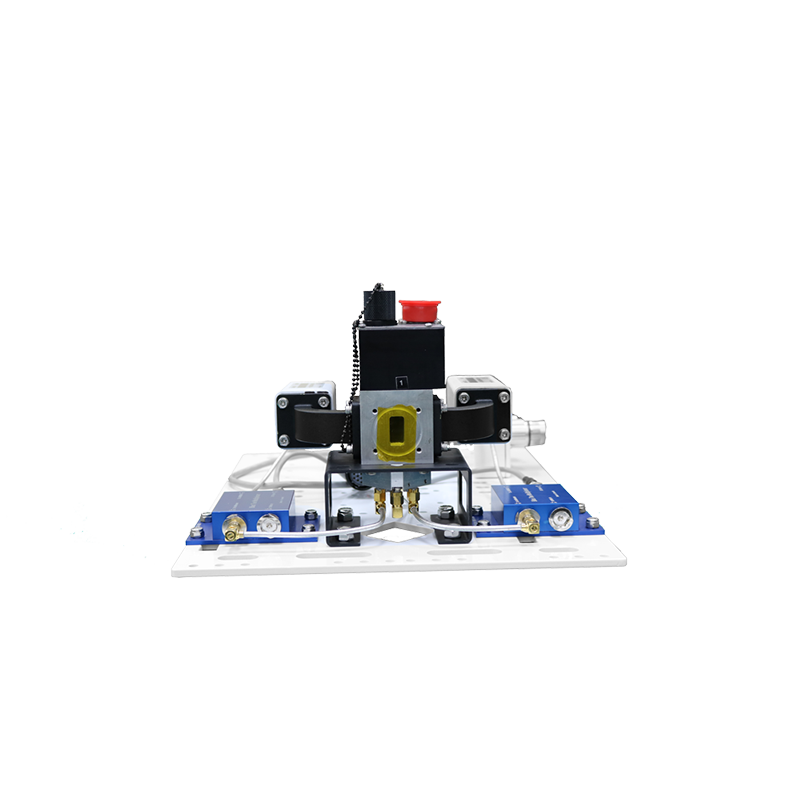

Norsat RSLNBISKA12R5 – 1:2 Ka-Band LNB Redundant Switch System

Norsat RSLNBISKA12R5 Ka-Band 1:2 LNB Redundant Switch System

The Norsat RSLNBISKA12R5 is a Ka-Band 1:2 LNB redundant switch system designed to ensure uninterrupted SATCOM service. Supporting internal reference single-band LNBs, it automatically switches between one primary and two backup units with a fast 120 ms response. Optimized for Rx-only operation with 50 m IFL, it provides reliable performance in mission-critical deployments.

Band: Ka-Band

Redundancy: 1:2
Switchover Time: 120 ms max
Supported LNBs: Internal reference, single-band (sold separately)
Tx/Rx Configuration: Rx-only, 50 m IFL
Input Connector: WR-42
Output Connector: N-Type
Insertion Loss: ≤0.5 dB max
Input VSWR: LNB dependent
Power: 90–264 VAC, 47–63 Hz
Environmental: -40°C to +60°C operating; <100% humidity
Dimensions: 483 x 159 x 295 mm; Weight: 9 kg
Packaging: 584 x 661 x 686 mm; 54.8 kg
Made in Canada; ECCN: EAR99; HS Code: 8517690000
