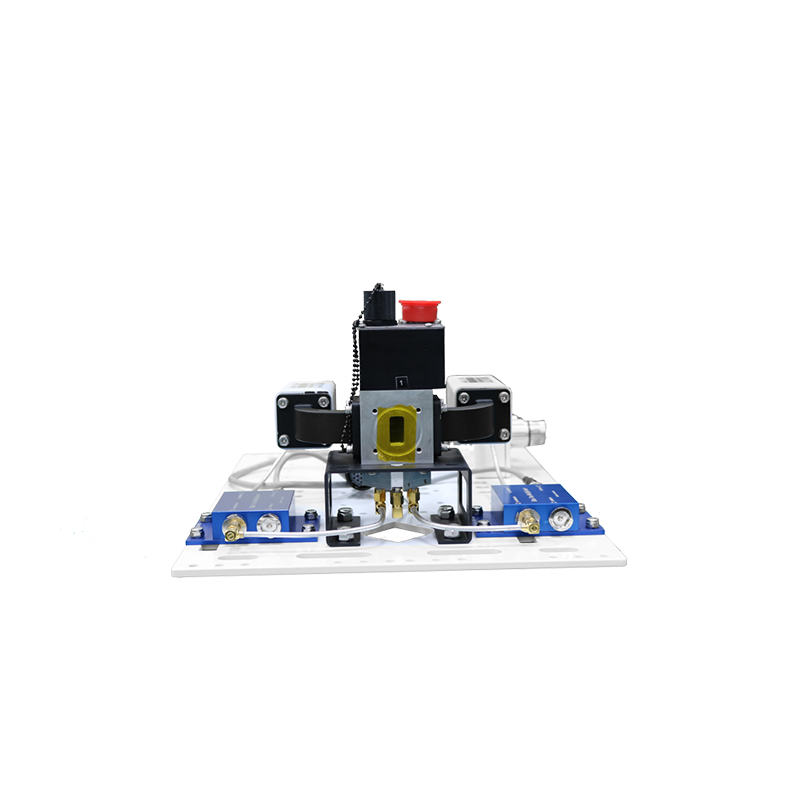

Norsat RSLNBISKU12T10 – 1:2 Ku-Band LNB Redundant Switch System

Norsat RSLNBISKU12T10 Ku-Band 1:2 LNB Redundant Switch System

The Norsat RSLNBISKU12T10 is a Ku-Band 1:2 LNB redundant switch system engineered for uninterrupted SATCOM service. Supporting internal reference single-band LNBs, it provides automatic switchover between one primary and two backup units with a maximum 120 ms response time. Optimized for Tx/Rx operation with 100 m IFL, it ensures dependable performance in demanding environments.

Band: Ku-Band

Redundancy: 1:2

Switchover Time: 120 ms max
Supported LNBs: Internal reference, single-band (sold separately)
Tx/Rx Configuration: Tx/Rx with 100 m IFL
Input Connector: WR-75
Output Connector: N-Type
Insertion Loss: ≤0.5 dB max
Input VSWR: LNB dependent
Power: 90–264 VAC, 47–63 Hz
Environmental: -40°C to +60°C operating; <100% humidity
Dimensions: 483 x 159 x 295 mm; Weight: 9 kg
Packaging: 584 x 661 x 686 mm; 54.8 kg
Made in Canada; ECCN: EAR99; HS Code: 8517690000
