Norsat 1009XHCF – Ku-Band Single-Band External Reference PLL LNB, F-Type (75Ω)

Norsat 1009XHCF Single-Band Ku-Band External Reference LNB

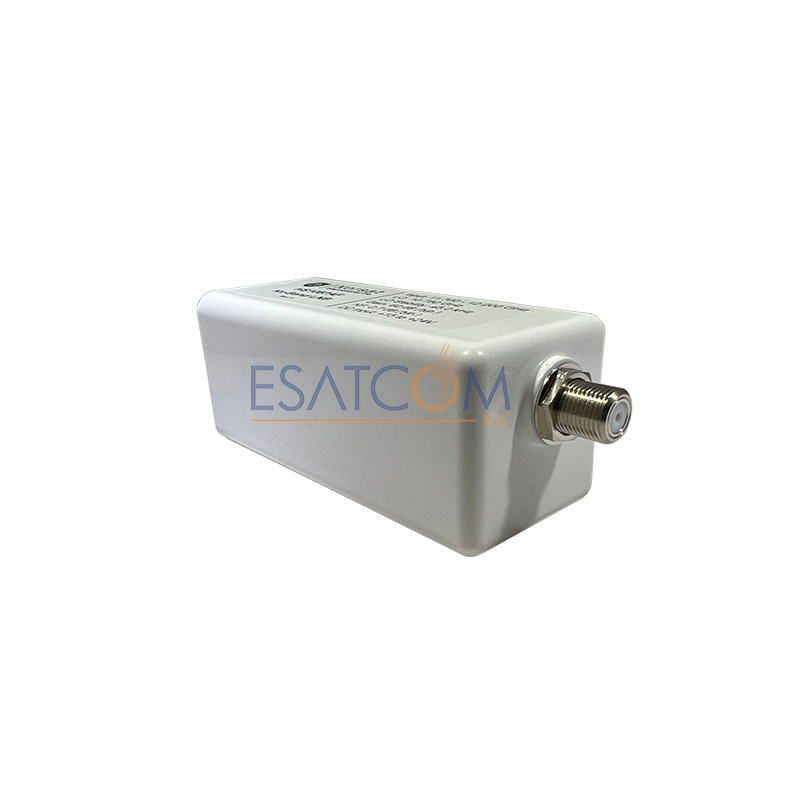

The Norsat 1009XHCF is a single-band Ku-Band PLL LNB with 10 MHz external reference input, typ. 0.9 dB noise figure, and stable high gain. Covering 10.95–11.70 GHz with a 10.0 GHz LO, it ensures precise frequency stability and dependable SATCOM performance. It features a 75 Ohm F-type output and rugged WR-75 waveguide input.

Frequency Band: 10.95–11.70 GHz
Output Frequency: 950–1700 MHz
Local Oscillator: 10.0 GHz
LO Stability: External Reference (10 MHz, -10 to 0 dBm)
Noise Figure: typ. 0.9 dB, max. 1.0 dB
Gain: typ. 60 dB (55–65 dB range), ≤4 dB p-p flatness
Output Connector: F-Type, 75 Ohm
Input: WR-75 waveguide grooved
Power: +15 to +24 VDC, 300 mA max
Environmental: -40°C to +60°C
Dimensions: 110 x 42 x 42 mm; Weight: 0.3 kg
Made in Republic of Korea; ECCN: EAR99
