Norsat X1000HAF – X-Band Single-Band PLL LNB, F-Type (75Ω)
$1,980.00
• Input Band: 7.25–7.75 GHz
• LO Stability: ±10 kHz
• Noise Figure: 0.7 dB
• Output Connector: F-type, 75 Ω
Security policy
Delivery policy
Return policy

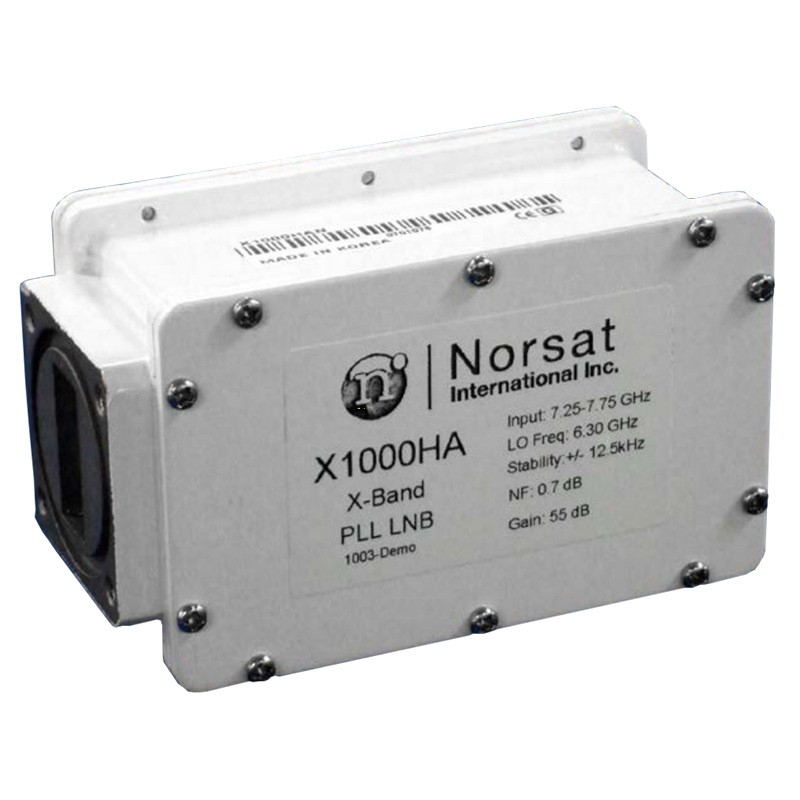

Norsat X1000HAF Single-Band X-Band PLL LNB
The Norsat X1000HAF is a single-band X-Band PLL LNB with ±10 kHz LO stability and a typ. 0.7 dB noise figure, engineered for reliable downlinking across 7.25–7.75 GHz. It features a 75 Ohm F-type output, WR-112 waveguide input, and rugged waterproof construction for dependable SATCOM operation.
Frequency Band: 7.25–7.75 GHz
Output Frequency: 950–1450 MHz
Local Oscillator: 6.30 GHz
LO Stability: ±10 kHz
Noise Figure: typ. 0.7 dB, max. 0.8 dB
Gain: typ. 55 dB (50–62 dB range)
Input VSWR: 2.3:1 max
Output VSWR: 2.5:1 max
Phase Noise: -75 dBc/Hz @1 kHz, -85 dBc/Hz @10 kHz, -95 dBc/Hz @100 kHz
Output Connector: F-Type, 75 Ohm (waterproof)
Input: WR-112 waveguide grooved (waterproof)
Power: +12 to +24 VDC, 300 mA max
Environmental: -40°C to +60°C, 0–95% humidity
Dimensions: 137 x 70 x 59 mm; Weight: not specified
Made in Republic of Korea; ECCN: EAR99
X1000HAF
- Frequency Band
- X-Band
- Frequency Range
- 7.25 – 7.75 GHz
- Number of Bands
- Single-Band
- Output Band
- Band 1: 950 – 1450 MHz
- LO Frequency
- 6.30 GHz
- LO Stability
- ±10 kHz
- Noise Figure
- 0.7 dB
- Typical Gain
- 55 dB
- Input Interface
- WR-112 Waveguide Grooved
- Output Connector
- F Type 75 Ohm
