Norsat 1008XDFN – Ku-Band Dual-Band External Reference LNB, N-Type (50Ω)
$1,080.00
Covers 10.70–12.75 GHz in two sub-bands:
• Band 1: 10.70–11.70 GHz
• Band 2: 11.70–12.75 GHz
• LO Reference: External 10 MHz
• Noise Figure: 0.8 dB
• Output Connector: N-type, 50 Ω
Security policy
Delivery policy
Return policy

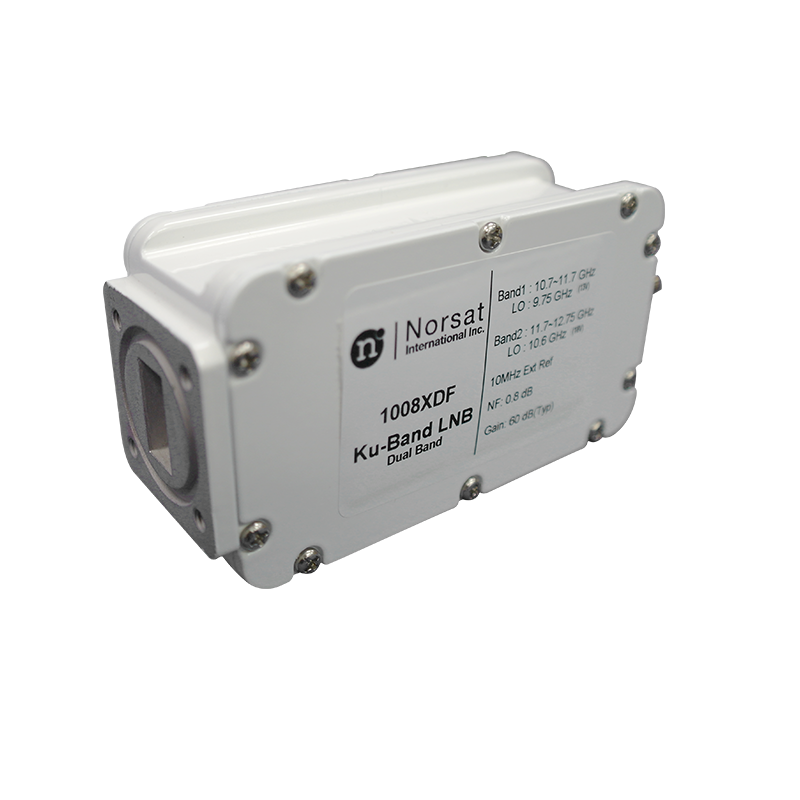

Norsat 1008XDFN Ku-Band Dual-Band External Reference LNB
The Norsat 1008XDFN is a dual-band Ku-Band external reference LNB built for high-performance SATCOM applications. It offers low noise, stable dual local oscillators, and wide coverage across 10.70–12.75 GHz for dependable satellite downlinking.
Band: Ku-Band (Dual-Band)
Input Frequencies: 10.70–11.70 GHz (Band 1), 11.70–12.75 GHz (Band 2)
Output Frequencies: 950–1950 MHz (Band 1), 1100–2150 MHz (Band 2)
LO Frequencies: 9.75 GHz, 10.60 GHz
LO Stability: External 10 MHz reference, -5 to +5 dBm
Noise Figure: typ. 0.8 dB, max. 0.9 dB
Gain: typ. 60 dB (55–65 dB range), ≤5 dB flatness
Output P1dB: +5 dBm min.
Input Connector: WR-75 waveguide, waterproof
Output Connector: N-Type, 50 Ohm, waterproof
Control: 13 V (Band 1), 18 V (Band 2)
Power: +12 to +24 VDC, 350 mA max
Environmental: -40°C to +60°C operation; IP67 rated
Dimensions: 128 × 60 × 42 mm; Weight: 0.4 kg
Country of Origin: Republic of Korea; ECCN: EAR99; HS Code: 8517690000
1008XDFN
- Type
- Single LNBs
- Frequency Band
- Ku-Band
- Frequency Range
- 10.70 – 12.75 GHz
- Number of Bands
- 2-Band
- Sub-Band
- Band 1: 10.7–11.7 GHz
- Sub-Band
- Band 2: 11.7–12.75 GHz
- Output Band
- Band 1: 950 – 1950 MHz
- Output Band
- Band 2: 1100 – 2150 MHz
- LO Frequency
- Multiple LO
- LO Stability
- External Reference
- Noise Figure
- 0.8 dB
- Typical Gain
- 60 dB
- Input Interface
- WR-75 waveguide grooved
- Output Connector
- N Type 50 Ohm
