Norsat 1008XUF – Ku-Band Quad-Band External Reference LNB, F-Type (75Ω)
$1,144.00
Covers 10.70–12.75 GHz in four sub-bands:
• Band 1: 10.70–11.70 GHz
• Band 2: 10.95–11.70 GHz
• Band 3: 11.70–12.75 GHz
• Band 4: 12.25–12.75 GHz
• LO Reference: External 10 MHz
• Noise Figure: 0.8 dB
• Output Connector: F-type, 75 Ω
Security policy
Delivery policy
Return policy

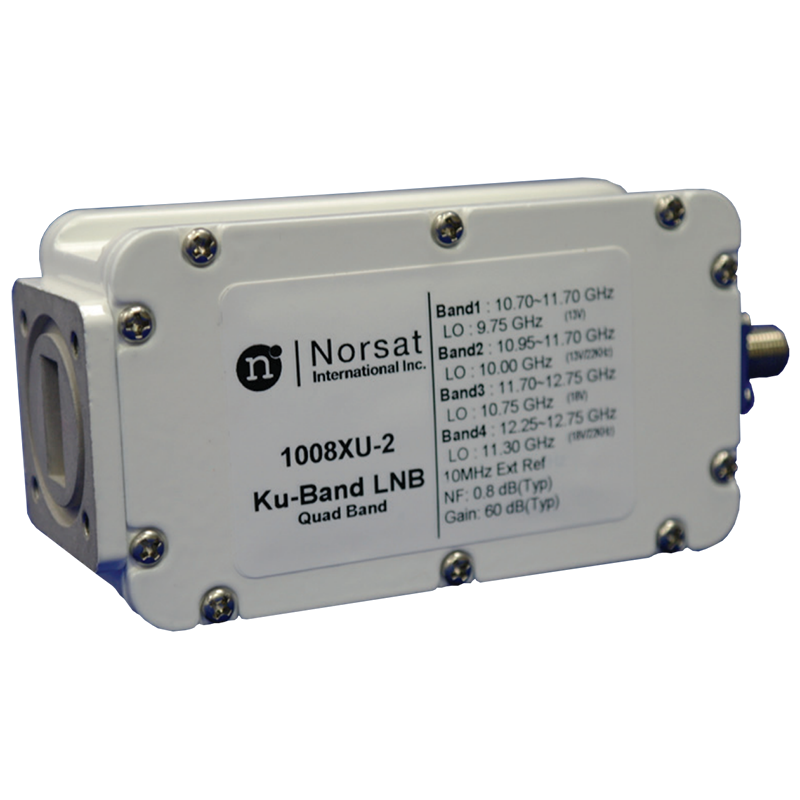

Norsat 1008XUF Ku-Band Quad-Band External Reference LNB
The Norsat 1008XUF is a quad-band Ku-Band external reference LNB designed for reliable SATCOM downlinking. With four switchable local oscillators, 0.8 dB typ. noise figure, and IP67 protection, it delivers high performance across 10.70–12.75 GHz for professional satellite communications.
Band: Ku-Band (Quad-Band)
Input Frequencies: 10.70–11.70 GHz, 10.95–11.70 GHz, 11.70–12.75 GHz, 12.25–12.75 GHz
Output Frequencies: 950–1950 MHz, 950–1700 MHz, 950–2000 MHz, 950–1450 MHz
LO Frequencies: 9.75 / 10.00 / 10.75 / 11.30 GHz
LO Stability: External 10 MHz reference (-5 to +5 dBm)
Noise Figure: typ. 0.8 dB, max. 1.0 dB
Gain: typ. 60 dB (55–65 dB), ≤5 dB flatness
Output P1dB: +5 dBm min.
Control: 13V/18V with or without 22 kHz tone
Input Connector: WR-75 waveguide, waterproof
Output Connector: F-Type, 75 Ohm, waterproof
Power: +12 to +24 VDC, 350 mA max
Environmental: -40°C to +60°C operation; IP67 rated
Dimensions: 128 × 60 × 42 mm; Weight: 0.4 kg
Country of Origin: Republic of Korea
ECCN: EAR99; HS Code: 8517690000
1008XUF
- Type
- Single LNBs
- Frequency Band
- Ku-Band
- Frequency Range
- 10.70 – 12.75 GHz
- Number of Bands
- 4-Band
- Sub-Band
- Band 4: 12.25–12.75 GHz
- Sub-Band
- Band 3: 11.7–12.75 GHz
- Sub-Band
- Band 2: 10.95–11.7 GHz
- Sub-Band
- Band 1: 10.7–11.7 GHz
- Output Band
- Band 1: 950 – 1950 MHz
- Output Band
- Band 2: 950 – 1700 MHz
- Output Band
- Band 4: 950 – 1450 MHz
- Output Band
- Band 3: 950 – 2000 MHz
- LO Frequency
- Multiple LO
- LO Stability
- External Reference
- Noise Figure
- 0.8 dB
- Typical Gain
- 60 dB
- Input Interface
- WR-75 waveguide grooved
- Output Connector
- F Type 75 Ohm
