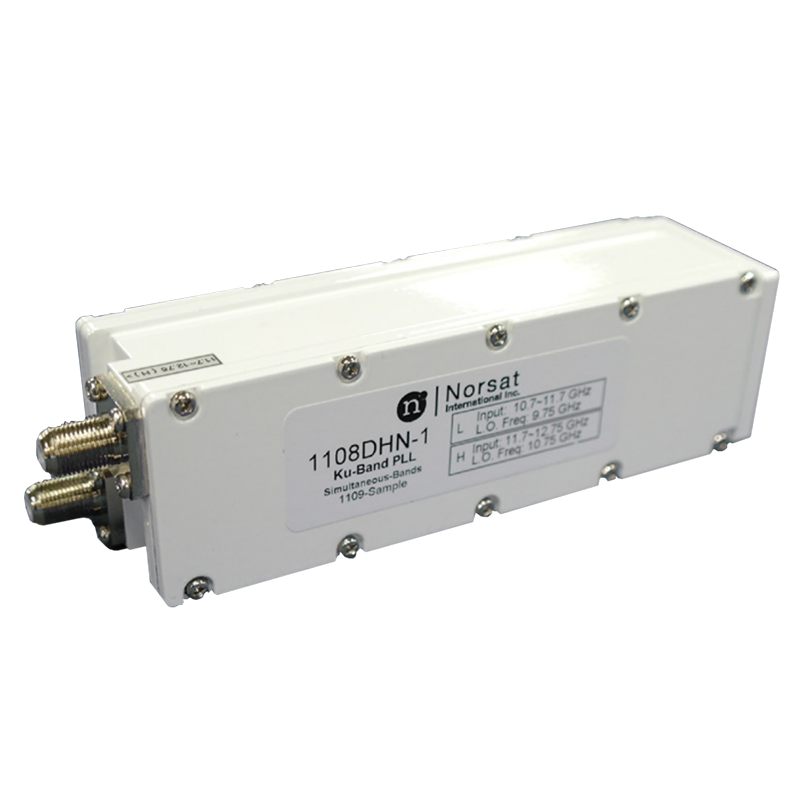

Norsat 1108DHN-1 – Ku-Band Simultaneous Dual-Band PLL LNB, N-Type (50Ω)

Norsat 1108DHN-1 Ku-Band Simultaneous Band PLL LNB
The Norsat 1108DHN-1 is a high-performance Ku-Band simultaneous band PLL LNB with ±10 kHz stability. It covers 10.70–12.75 GHz with dual LO operation, low 0.8 dB typ. noise figure, and rugged IP67 protection for dependable SATCOM downlinking.

Band: Ku-Band (Simultaneous Low/High)

Input Frequencies: 10.70–11.70 GHz (Low), 11.70–12.75 GHz (High)
Output Frequencies: 950–1950 MHz (Low), 950–2000 MHz (High)
LO Frequencies: 9.75 GHz (Low), 10.75 GHz (High)
LO Stability: ±10 kHz
Noise Figure: typ. 0.8 dB, max. 0.85 dB
Conversion Gain: typ. 55 dB (50–62 dB), ≤4 dB flatness
Output P1dB: +5 dBm min.
Input VSWR: ≤2.2:1; Output VSWR: ≤2.0:1
Phase Noise: -70 dBc/Hz @1kHz, -80 dBc/Hz @10kHz, -95 dBc/Hz @100kHz
Input Connector: WR-75 waveguide
Output Connector: N-Type, 50 Ohm
Power: +12 to +24 VDC, 450 mA max per band
Environmental: -40°C to +60°C operating; IP67 rated
Dimensions: 155 × 42 × 40 mm; Weight: 0.45 kg
Country of Origin: Republic of Korea
ECCN: EAR99; HS Code: 8517690000
