Norsat 3120RF – C-Band Single-Band PLL LNB, F-Type (75Ω)
$440.00
• Input Band: 3.7 – 4.2 GHz
• LO Stability: ±5 kHz
• Noise Temperature: 20K
• Output Connector: F-type, 75 Ω
Security policy
Delivery policy
Return policy

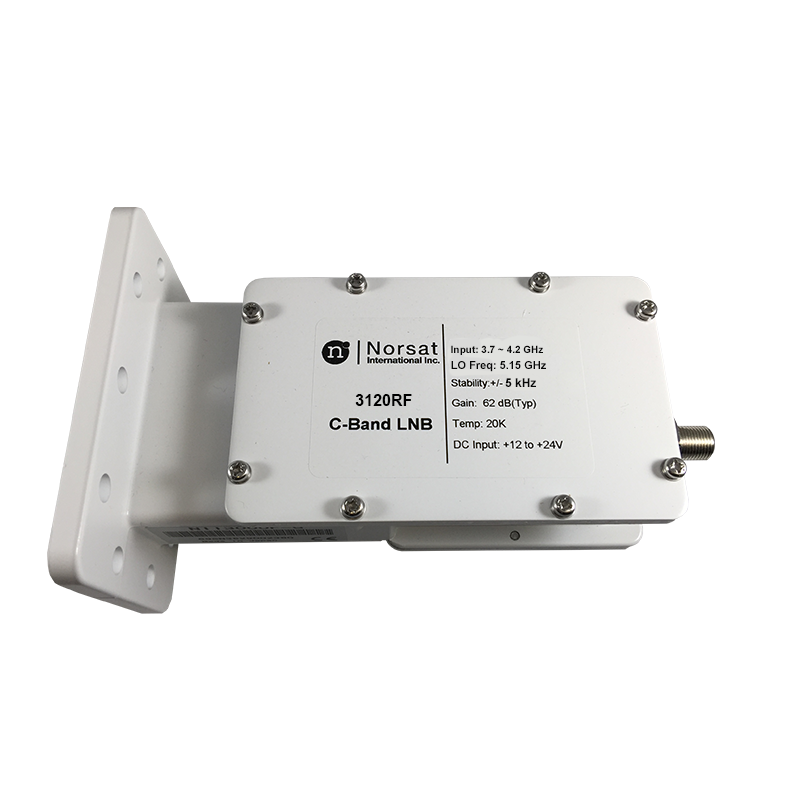

Norsat 3120RF C-Band Single-Band PLL LNB
The Norsat 3120RF is a high-stability C-Band single-band PLL LNB with ±5 kHz LO stability and 20 K typ. noise temperature. Covering 3.70–4.20 GHz, it delivers low-noise, high-gain performance with rugged IP67 protection for professional SATCOM applications.
Band: C-Band
Input Frequency: 3.7 – 4.2 GHz
Output Frequency: 950 – 1450 MHz
LO Frequency: 5.15 GHz
LO Stability: ±5 kHz
Noise Temperature: typ. 20 K, max. 25 K
Gain: typ. 60 dB (55–70 dB), ≤4 dB flatness
Output P1dB: +8 dBm min.
Phase Noise: -73 dBc/Hz @1 kHz, -83 dBc/Hz @10 kHz, -93 dBc/Hz @100 kHz
Input Connector: CPR 229G waveguide grooved
Output Connector: F-Type, 75 Ohm
Power: +12 to +24 VDC
Environmental: -40°C to +60°C operation; -40°C to +80°C storage; IP67 rated
Dimensions: 180 × 100 × 70 mm; Weight: 0.575 kg
Country of Origin: Republic of Korea
ECCN: EAR99; HS Code: 8517690000
3120RF
- Type
- Single LNBs
- Frequency Band
- C-Band
- Frequency Range
- 3.7 – 4.2 GHz
- Number of Bands
- Single-Band
- Output Band
- Band 1: 950 – 1450 MHz
- LO Frequency
- 5.15 GHz
- LO Stability
- ±10 kHz
- Noise Figure
- 0.29 dB
- Typical Gain
- 60 dB
- Input Interface
- CPR 229G Waveguide Grooved
- Output Connector
- F Type 75 Ohm
Specific References
• Input Band: 3.7 – 4.2 GHz
• LO Stability: ±5 kHz
• Noise Temperature: 20K
• Output Connector: F-type, 75 Ω
