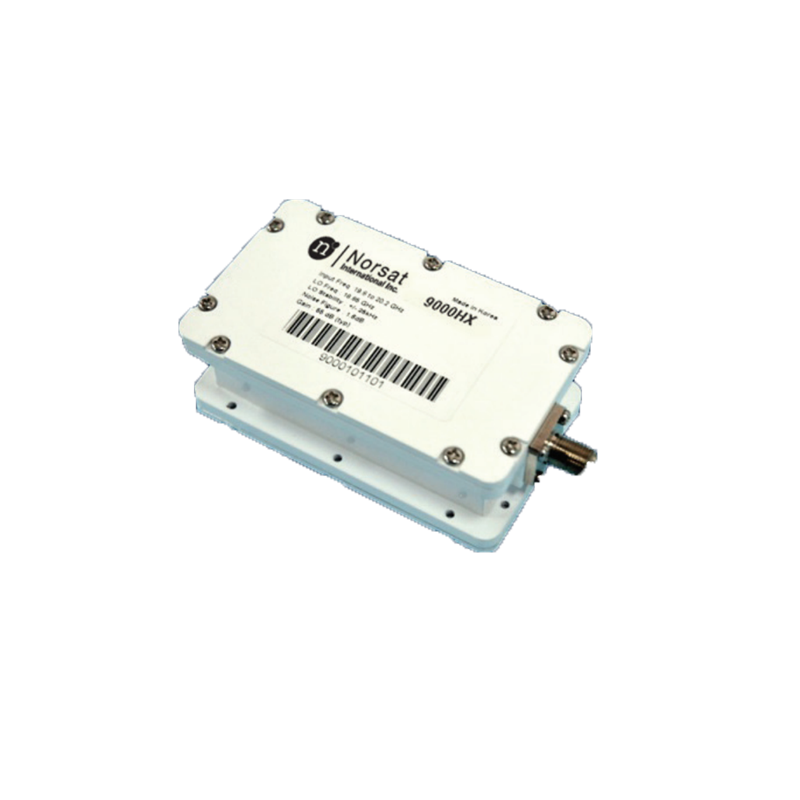

Norsat 9000HX-O3B-AN – Ka-Band Auto-Reference PLL LNB, N-Type (50Ω)

Norsat 9000HX-O3B-AN Ka-Band Auto-Reference LNB
The Norsat 9000HX-O3B-AN is a Ka-Band auto-reference LNB engineered for O3b satellite networks. With ±25 kHz PLL stability, typ. 1.3 dB noise figure, and automatic external 10 MHz reference support, it delivers reliable performance across 17.852–18.588 GHz for high-capacity SATCOM systems.

Band: Ka-Band
Input Frequencies: 17.852–18.588 GHz

IF Frequency: 1052–1788 MHz

LO Frequency: 16.8 GHz

LO Stability: ±25 kHz in PLL mode (auto external ref support)
Noise Figure: typ. 1.3 dB, max. 1.6 dB @ CF
Gain: typ. 58 dB (55–65 dB range), ≤3 dB flatness
Output P1dB: +5 dBm min.
Phase Noise: -70 dBc/Hz @1 kHz, -80 dBc/Hz @10 kHz
Input Connector: WR-42 waveguide (waterproof)
Output Connectors: N-Type 50 Ohm (waterproof)
VSWR: Input ≤2.0:1, Output ≤2.0:1
Power: +11 to +26 VDC, 300 mA max

Environmental: -40°C to +60°C operating; -40°C to +80°C storage
Dimensions: 140 × 66 × 39 mm; Weight: 0.50 kg
External Reference: 10 MHz sine-wave, -10 to 0 dBm
Made by Norsat; ECCN: EAR99
