Norsat 9000X5N – Ka-Band 5-Band External Reference LNB, N-Type (50Ω)
$4,121.00
Covers 17.20–22.20 GHz in five sub-bands:
• Band 1: 17.20 - 18.20 GHz
• Band 2: 18.20 - 19.20 GHz
• Band 3: 19.20 - 20.20 GHz
• Band 4: 20.20 - 21.20 GHz
• Band 5: 21.20 - 22.20 GHz
• LO Reference: External 10 MHz
• Noise Figure: 2.5 dB
• Output Connector: N Type 50 Ohm
• Integrated Waveguide Isolator: No
• Voltage/tone control: 13/18/22 V DC with 22 kHz Tone Switching
Security policy
Delivery policy
Return policy

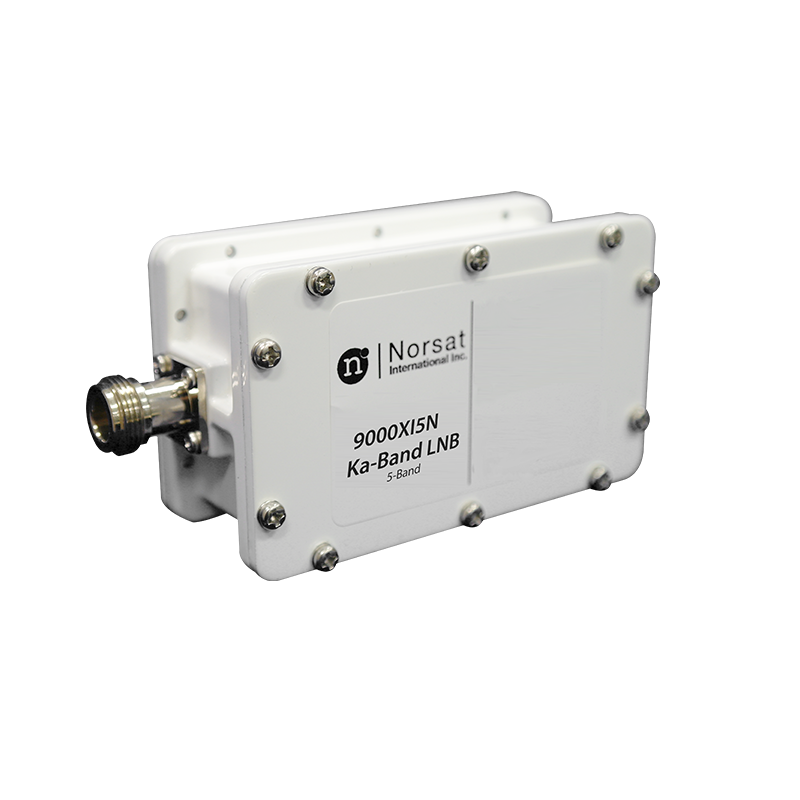

Norsat 9000X5N Ka-Band Five-Band External Reference LNB
The Norsat 9000X5N is a five-band Ka-Band external reference LNB designed for precision SATCOM downlinking. With five switchable LOs, typ. 2.5 dB noise figure, and IP67 protection, it provides reliable, stable performance across 17.20–22.20 GHz for demanding satellite networks.
Band: Ka-Band (Five-Band)
Input Frequencies:
• Band 1: 17.20–18.20 GHz
• Band 2: 18.20–19.20 GHz
• Band 3: 19.20–20.20 GHz
• Band 4: 20.20–21.20 GHz
• Band 5: 21.20–22.20 GHz
Output Frequency: 950–1950 MHz (all bands)
LO Frequencies: 16.25 / 17.25 / 18.25 / 19.25 / 20.25 GHz
LO Stability: External 10 MHz reference (-5 to +5 dBm)
Noise Figure: typ. 2.5 dB, max. 2.9 dB
Conversion Gain: typ. 60 dB (55–65 dB), ≤4 dB flatness
Output P1dB: +10 dBm min.
Control: 13 V / no tone, 13 V + 22 kHz, 18 V / no tone, 18 V + 22 kHz, 22 V / no tone
Input Connector: WR-42 waveguide, grooved
Output Connector: N-Type, 50 Ohm
Power: +12 to +24 VDC, 500 mA max
Environmental: -40°C to +60°C operating; IP67 rated
Dimensions: 137 × 67 × 39 mm; Weight: 0.55 kg
Country of Origin: Republic of Korea
ECCN: EAR99; HS Code: 8517690000
9000X5N
- Type
- Single LNBs
- Frequency Band
- Ka-Band
- Frequency Range
- 17.2–22.2 GHz
- Number of Bands
- 5-Band
- Sub-Band
- Band 5: 21.2–22.2 GHz
- Sub-Band
- Band 4: 20.2–21.2 GHz
- Sub-Band
- Band 3: 19.2–20.2 GHz
- Sub-Band
- Band 2: 18.2–19.2 GHz
- Sub-Band
- Band 1: 17.2–18.2 GHz
- Output Band
- Band 1: 950 – 1950 MHz
- Output Band
- Band 2: 950 – 1950 MHz
- Output Band
- Band 3: 950 – 1950 MHz
- Output Band
- Band 4: 950 – 1950 MHz
- Output Band
- Band 5: 950 – 1950 MHz
- LO Frequency
- Multiple LO
- LO Stability
- External Reference
- Noise Figure
- 2.5 dB
- Typical Gain
- 60 dB
- Input Interface
- WR-42 Waveguide Grooved
- Output Connector
- N Type 50 Ohm
Specific References
Covers 17.20–22.20 GHz in five sub-bands:
• Band 1: 17.20 - 18.20 GHz
• Band 2: 18.20 - 19.20 GHz
• Band 3: 19.20 - 20.20 GHz
• Band 4: 20.20 - 21.20 GHz
• Band 5: 21.20 - 22.20 GHz
• LO Reference: External 10 MHz
• Noise Figure: 2.5 dB
• Output Connector: N Type 50 Ohm
• Integrated Waveguide Isolator: No
• Voltage/tone control: 13/18/22 V DC with 22 kHz Tone Switching
