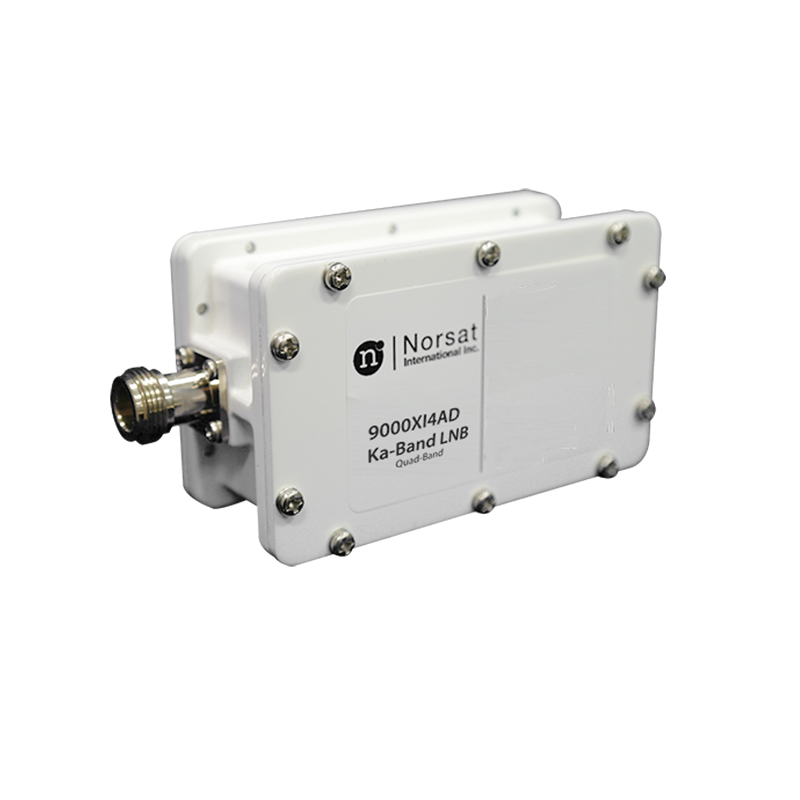

Norsat 9000XI4ECF – Ka-Band Quad-Band External Reference LNB, F-Type (75Ω)
$4,013.00
Covers 17.20–21.20 GHz in four sub-bands:
• Band 1: 17.20 - 18.20 GHz
• Band 2: 18.20 - 19.20 GHz
• Band 3: 19.20 - 20.20 GHz
• Band 4: 20.20 - 21.20 GHz
• LO Reference: External 10 MHz
• Noise Figure: 1.5 dB
• Output Connector: F Type 75 Ohm
• Integrated Waveguide Isolator: Yes
• Voltage/tone control: 13/18 V DC with 22 kHz Tone Switching
Security policy
Delivery policy
Return policy
Norsat 9000XI4ECF Ka-Band Quad-Band External Reference LNB
The Norsat 9000XI4ECF is a Ka-Band quad-band external reference LNB with integrated isolator for precision SATCOM downlinking. Covering 17.20–21.20 GHz with four switchable LOs, it provides typ. 1.5 dB noise figure, high gain, and IP67 protection for reliable field performance.
Band: Ka-Band (Quad-Band)
Input Frequencies: 17.20–18.20 GHz, 18.20–19.20 GHz, 19.20–20.20 GHz, 20.20–21.20 GHz
Output Frequencies: 950–1950 MHz (all bands)
LO Frequencies: 16.25 / 17.25 / 18.25 / 19.25 GHz
LO Stability: External 10 MHz reference (-5 to +5 dBm)
Noise Figure: typ. 1.5 dB, max. 1.8 dB
Conversion Gain: typ. 60 dB (55–65 dB), ≤4 dB flatness
Output P1dB: +10 dBm min.
Phase Noise: External reference dependent
Control: 13 V (no tone), 13 V + 22 kHz, 18 V (no tone), 18 V + 22 kHz
Input Connector: WR-42 waveguide, grooved
Output Connector: F-Type, 75 Ohm
Isolator: Integrated
Power: +12 to +24 VDC, 350 mA max
Environmental: -40°C to +60°C operating; IP67 rated
Dimensions: 156 × 67 × 39 mm; Weight: 0.56 kg
Country of Origin: Republic of Korea
ECCN: EAR99; HS Code: 8517690000
9000XI4ECF
- Type
- Single LNBs
- Frequency Band
- Ka-Band
- Frequency Range
- 17.20 – 21.20 GHz
- Number of Bands
- 4-Band
- Sub-Band
- Band 4: 20.2–21.2 GHz
- Sub-Band
- Band 3: 19.2–20.2 GHz
- Sub-Band
- Band 2: 18.2–19.2 GHz
- Sub-Band
- Band 1: 17.2–18.2 GHz
- Output Band
- Band 1: 950 – 1950 MHz
- Output Band
- Band 2: 950 – 1950 MHz
- Output Band
- Band 3: 950 – 1950 MHz
- Output Band
- Band 4: 950 – 1950 MHz
- LO Frequency
- Multiple LO
- LO Stability
- External Reference
- Noise Figure
- 1.5 dB
- Typical Gain
- 60 dB
- Input Interface
- WR-42 Waveguide Grooved
- Output Connector
- F Type 75 Ohm
Specific References
Covers 17.20–21.20 GHz in four sub-bands:
• Band 1: 17.20 - 18.20 GHz
• Band 2: 18.20 - 19.20 GHz
• Band 3: 19.20 - 20.20 GHz
• Band 4: 20.20 - 21.20 GHz
• LO Reference: External 10 MHz
• Noise Figure: 1.5 dB
• Output Connector: F Type 75 Ohm
• Integrated Waveguide Isolator: Yes
• Voltage/tone control: 13/18 V DC with 22 kHz Tone Switching
