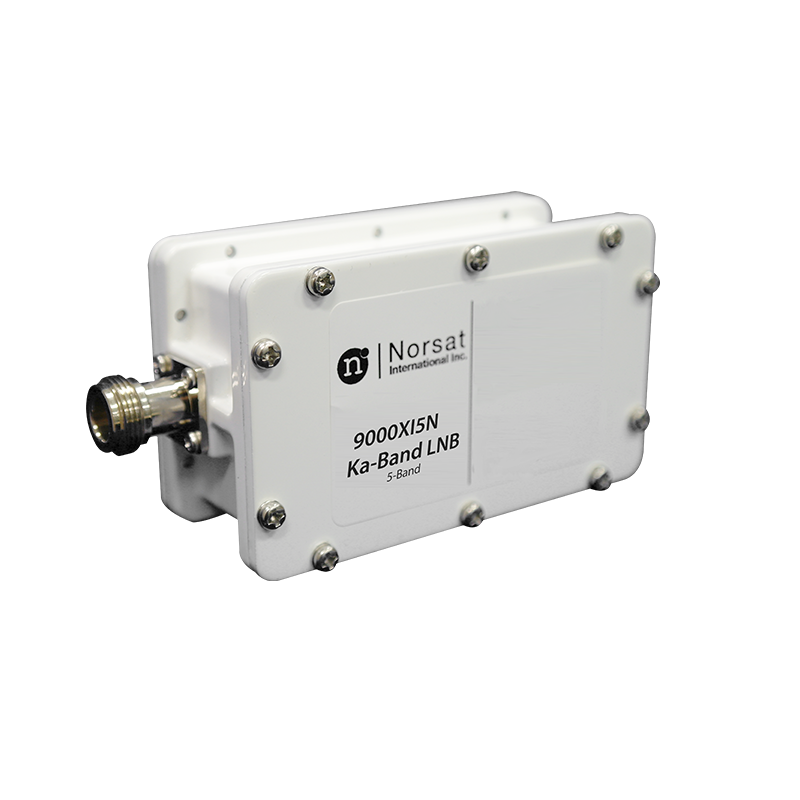

Norsat 9000XI5N – Ka-Band 5-Band External Reference LNB, N-Type (50Ω)
$4,805.00
Covers 17.20–22.20 GHz in five sub-bands:
• Band 1: 17.20 - 18.20 GHz
• Band 2: 18.20 - 19.20 GHz
• Band 3: 19.20 - 20.20 GHz
• Band 4: 20.20 - 21.20 GHz
• Band 5: 21.20 - 22.20 GHz
• LO Reference: External 10 MHz
• Noise Figure: 2.6 dB
• Output Connector: N Type 50 Ohm
• Integrated Waveguide Isolator: Yes
• Voltage/tone control: 13/18/22 V DC with 22 kHz Tone Switching
Security policy
Delivery policy
Return policy
Norsat 9000XI5N Ka-Band Five-Band External Reference LNB
The Norsat 9000XI5N is a Ka-Band five-band external reference LNB with integrated isolator for stable SATCOM performance. It covers 17.20–22.20 GHz with five switchable LOs, typ. 2.6 dB noise figure, and rugged IP67 protection, ensuring reliability in demanding field conditions.
Band: Ka-Band (Five-Band)
Input Frequencies:
• Band 1: 17.20–18.20 GHz
• Band 2: 18.20–19.20 GHz
• Band 3: 19.20–20.20 GHz
• Band 4: 20.20–21.20 GHz
• Band 5: 21.20–22.20 GHz
Output Frequencies: 950–1950 MHz (all bands)
LO Frequencies: 16.25 / 17.25 / 18.25 / 19.25 / 20.25 GHz
LO Stability: External 10 MHz reference (-5 to +5 dBm)
Noise Figure: typ. 2.6 dB, max. 3.0 dB
Conversion Gain: typ. 60 dB (55–65 dB), ≤4 dB flatness
Output P1dB: +10 dBm min.
Control: 13V / no tone, 13V + 22 kHz, 18V / no tone, 18V + 22 kHz, 22V / no tone
Input Connector: WR-42 waveguide, grooved
Output Connector: N-Type, 50 Ohm
Isolator: Integrated
Power: +12 to +24 VDC, 500 mA max
Environmental: -40°C to +60°C operating; IP67 rated
Dimensions: 156 × 67 × 39 mm; Weight: 0.55 kg
Country of Origin: Republic of Korea
ECCN: EAR99; HS Code: 8517690000
9000XI5N
- Type
- Single LNBs
- Frequency Band
- Ka-Band
- Frequency Range
- 17.2–22.2 GHz
- Number of Bands
- 5-Band
- Sub-Band
- Band 5: 21.2–22.2 GHz
- Sub-Band
- Band 4: 20.2–21.2 GHz
- Sub-Band
- Band 3: 19.2–20.2 GHz
- Sub-Band
- Band 2: 18.2–19.2 GHz
- Sub-Band
- Band 1: 17.2–18.2 GHz
- Output Band
- Band 1: 950 – 1950 MHz
- Output Band
- Band 2: 950 – 1950 MHz
- Output Band
- Band 3: 950 – 1950 MHz
- Output Band
- Band 4: 950 – 1950 MHz
- Output Band
- Band 5: 950 – 1950 MHz
- LO Frequency
- Multiple LO
- LO Stability
- External Reference
- Noise Figure
- 2.6 dB
- Typical Gain
- 60 dB
- Input Interface
- WR-42 Waveguide Grooved
- Output Connector
- N Type 50 Ohm
