Norsat 9000XABF – Ka-Band Dual-Band External Reference LNB, F-Type (75Ω)

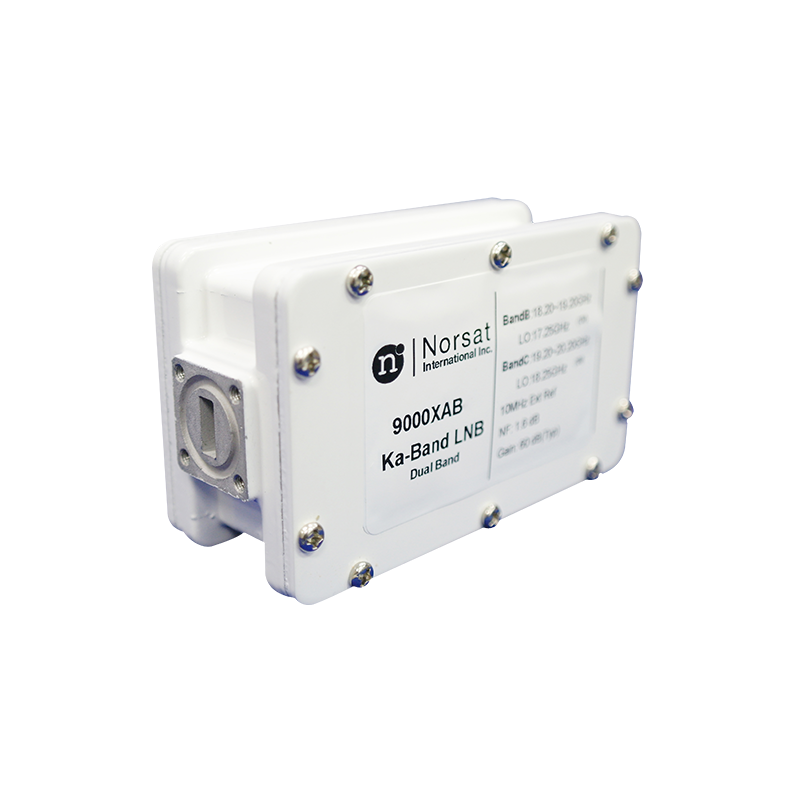

Norsat 9000XABF Ka-Band Dual-Band External Reference LNB

The Norsat 9000XABF is a Ka-Band dual-band external reference LNB built for precision SATCOM downlinking. Covering 18.20–20.20 GHz across two bands with ±25 kHz external reference stability, it offers typ. 1.3 dB noise figure, 60 dB gain, and rugged IP67 protection.

Band: Ka-Band (Dual-Band)

Input Frequencies: 18.20–19.20 GHz (Band 1), 19.20–20.20 GHz (Band 2)

Output Frequencies: 950–1950 MHz (both bands)
LO Frequencies: 17.25 GHz (Band 1), 18.25 GHz (Band 2)
LO Stability: External 10 MHz reference (-5 to +5 dBm)
Noise Figure: typ. 1.3 dB, max. 1.6 dB
Conversion Gain: typ. 60 dB (55–65 dB), ≤5 dB flatness
Output P1dB: +5 dBm min.
Control: 13 V (Band 1), 18 V (Band 2), no tone
Input Connector: WR-42 waveguide, grooved
Output Connector: F-Type, 75 Ohm
Isolator: No
Power: +12 to +24 VDC, 400 mA max
Environmental: -40°C to +60°C operating; -40°C to +80°C storage; IP67 rated
Dimensions: 120 × 60 × 45 mm; Weight: 0.42 kg
Country of Origin: Republic of Korea
ECCN: EAR99; HS Code: 8517690000
