Norsat 9000XTABCN – Ka-Band Triple-Band External Reference LNB, N-Type (50Ω)
$2,244.00
Covers 18.20–21.20 GHz in three sub-bands:
• Band 1: 18.20 - 19.20 GHz
• Band 2: 19.20 - 20.20 GHz
• Band 3: 20.20 - 21.20 GHz
• LO Reference: External 10 MHz
• Noise Figure: 1.3 dB
• Output Connector: N Type 50 Ohm
• Voltage/tone control: 13/18 V DC with 22 kHz Tone Switching
Security policy
Delivery policy
Return policy

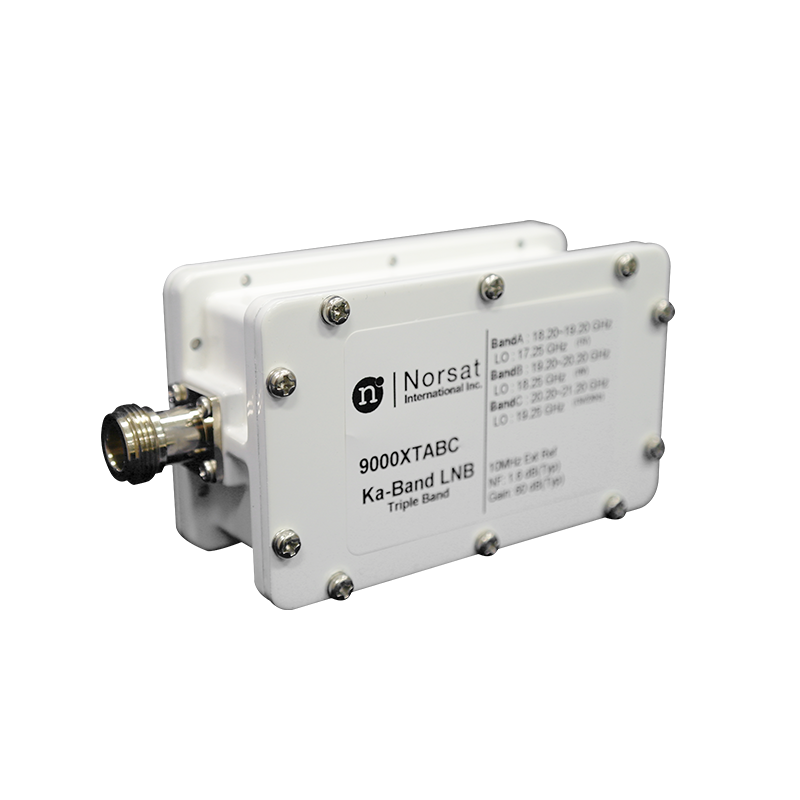

Norsat 9000XTABCN Ka-Band Triple-Band External Reference LNB
The Norsat 9000XTABCN is a Ka-Band triple-band external reference LNB engineered for high-performance SATCOM downlinking. Covering 18.20–21.20 GHz across three switchable bands, it delivers typ. 1.3 dB noise figure, external 10 MHz reference stability, and rugged IP67 protection for reliable field use.
Band: Ka-Band (Triple-Band)
Input Frequencies: 18.20–19.20 GHz, 19.20–20.20 GHz, 20.20–21.20 GHz
Output Frequencies: 950–1950 MHz (all bands)
LO Frequencies: 17.25 / 18.25 / 19.25 GHz
LO Stability: External 10 MHz reference (-5 to +5 dBm)
Noise Figure: typ. 1.3 dB, max. 1.6 dB
Conversion Gain: typ. 58 dB (55–65 dB range), ≤5 dB flatness
Output P1dB: +3 dBm min.
Control: 13 V / no tone, 18 V / no tone, 13 V + 22 kHz tone
Input Connector: WR-42 waveguide, grooved
Output Connector: N-Type, 50 Ohm
Power: +12 to +24 VDC, 400 mA max
Environmental: -40°C to +60°C operating; IP67 rated
Dimensions: 120 × 60 × 45 mm; Weight: 0.42 kg
Country of Origin: Republic of Korea
ECCN: EAR99; HS Code: 8517690000
9000XTABCN
- Type
- Single LNBs
- Frequency Band
- Ka-Band
- Frequency Range
- 18.20 – 21.20 GHz
- Number of Bands
- 3-Band
- Sub-Band
- Band 1: 18.2–19.2 GHz
- Sub-Band
- Band 2: 19.2–20.2 GHz
- Sub-Band
- Band 3: 20.2–21.2 GHz
- Output Band
- Band 1: 950 – 1950 MHz
- Output Band
- Band 2: 950 – 1950 MHz
- Output Band
- Band 3: 950 – 1950 MHz
- LO Frequency
- Multiple LO
- LO Stability
- External Reference
- Noise Figure
- 1.3 dB
- Typical Gain
- 58 dB
- Input Interface
- WR-42 Waveguide Grooved
- Output Connector
- N Type 50 Ohm
Specific References
Covers 18.20–21.20 GHz in three sub-bands:
• Band 1: 18.20 - 19.20 GHz
• Band 2: 19.20 - 20.20 GHz
• Band 3: 20.20 - 21.20 GHz
• LO Reference: External 10 MHz
• Noise Figure: 1.3 dB
• Output Connector: N Type 50 Ohm
• Voltage/tone control: 13/18 V DC with 22 kHz Tone Switching
