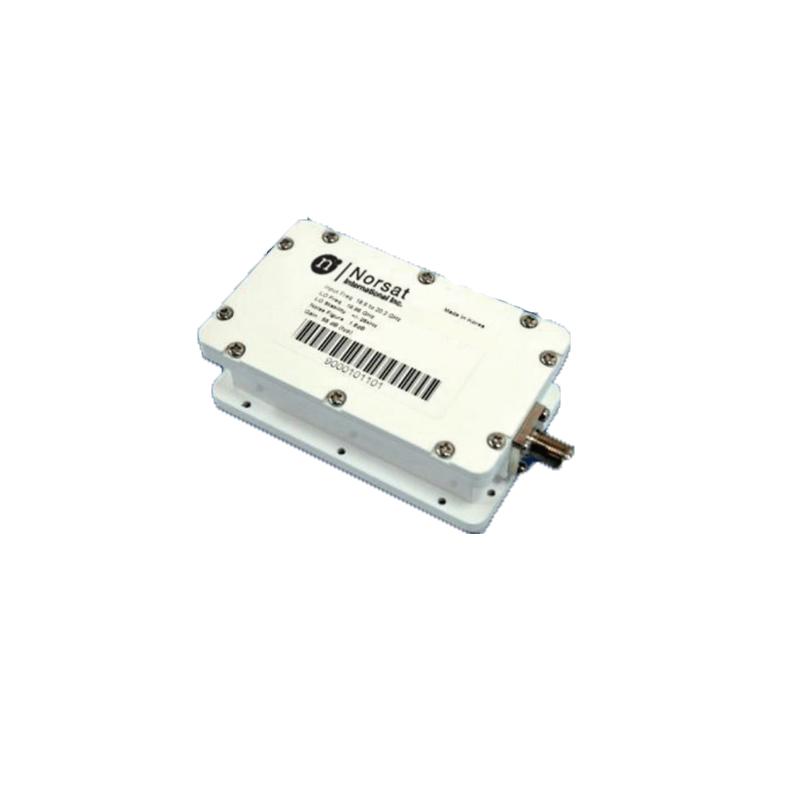

Norsat 9016XAEBE-3F Ka-Band Dual-Band External Reference LNB

The Norsat 9016XAEBE-3F is a Ka-Band dual-band external reference LNB engineered for precision SATCOM downlinking. With switchable 17.70 – 18.95 and 18.95–20.20 GHz bands, ±25 kHz external reference stability, and a low 1.3 dB typ. noise figure, it ensures reliable performance in demanding environments.

Band: Ka-Band (Dual-Band)
Input Frequencies: 17.70–18.95 GHz (Band 1), 18.95–20.20 GHz (Band 2)
Output Frequencies: 950–2200 MHz (both bands)
LO Frequencies: 16.75 GHz (Band 1), 18.00 GHz (Band 2)
LO Stability: External 10 MHz reference (-5 to +5 dBm)
Noise Figure: typ. 1.3 dB, max. 1.6 dB
Conversion Gain: typ. 58 dB (55–65 dB), ≤5 dB flatness
Output P1dB: +5 dBm min.
Control: 13 V (Band 1), 18 V (Band 2), no tone
Input Connector: WR-42 waveguide, grooved
Output Connector: F-Type, 75 Ohm
Power: +12 to +19 VDC, 350 mA max
Environmental: -40°C to +60°C operating; IP67 rated
Dimensions: 128 × 70 × 38 mm; Weight: 0.50 kg
Country of Origin: Republic of Korea
ECCN: EAR99; HS Code: 8517690000
