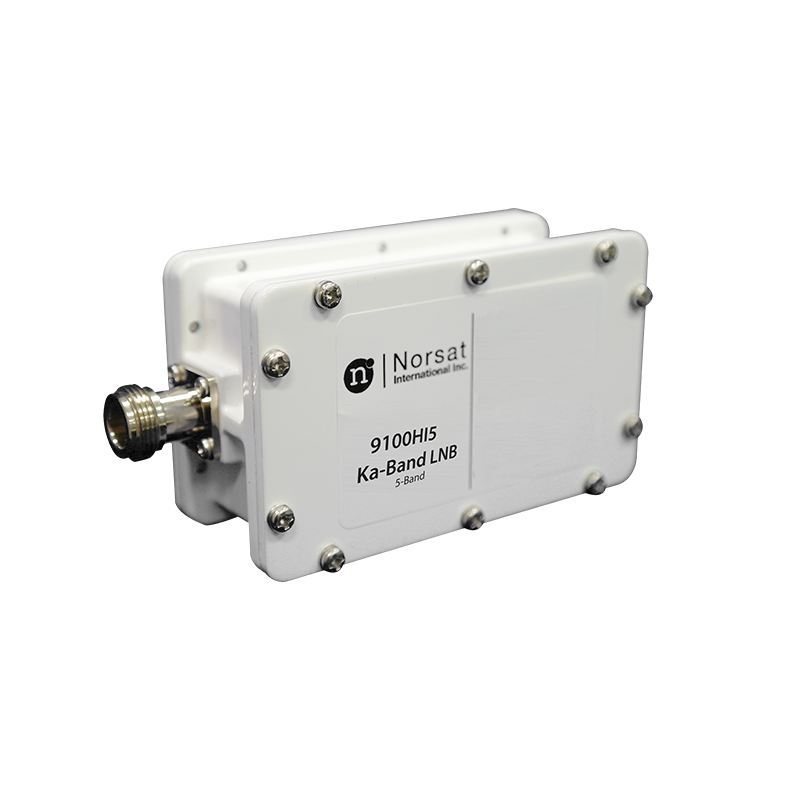

Norsat 9100HI5F – Ka-Band 5-Band PLL LNB, F-Type (75Ω)
$5,205.00
Covers 17.20–22.20 GHz in five sub-bands:
• Band 1: 17.20 - 18.20 GHz
• Band 2: 18.20 - 19.20 GHz
• Band 3: 19.20 - 20.20 GHz
• Band 4: 20.20 - 21.20 GHz
• Band 5: 21.20 - 22.20 GHz
• LO Stability: ±10 kHz
• Noise Figure: 2.6 dB
• Output Connector: F Type 75 Ohm
• Integrated Waveguide Isolator: Yes
• Voltage/tone control: 13/18/22 V DC with 22 kHz Tone Switching
Security policy
Delivery policy
Return policy
Norsat 9100HI5F Ka-Band Five-Band PLL LNB with Isolator
The Norsat 9100HI5F is a Ka-Band five-band PLL LNB with integrated isolator for enhanced stability and reliability. It covers 17.20–22.20 GHz with five switchable LOs, typ. 2.6 dB noise figure, and ±10 kHz PLL stability, making it ideal for demanding SATCOM applications.
Band: Ka-Band (Five-Band)
Input Frequencies:
• Band 1: 17.20–18.20 GHz
• Band 2: 18.20–19.20 GHz
• Band 3: 19.20–20.20 GHz
• Band 4: 20.20–21.20 GHz
• Band 5: 21.20–22.20 GHz
Output Frequencies: 950–1950 MHz (all bands)
LO Frequencies: 16.25 / 17.25 / 18.25 / 19.25 / 20.25 GHz
LO Stability: ±10 kHz (PLL)
Noise Figure: typ. 2.6 dB, max. 3.0 dB
Conversion Gain: typ. 60 dB (55–65 dB), ≤4 dB flatness
Output P1dB: +10 dBm min.
Phase Noise: -70 dBc/Hz @1 kHz, -78 dBc/Hz @10 kHz, -93 dBc/Hz @100 kHz
Control: 13 V / no tone, 13 V + 22 kHz, 18 V / no tone, 18 V + 22 kHz, 22 V / no tone
Input Connector: WR-42 waveguide, grooved
Output Connector: F-Type, 75 Ohm
Isolator: Integrated
Power: +12 to +24 VDC, 500 mA max
Environmental: -40°C to +60°C operating; -40°C to +80°C storage; IP67 rated
Dimensions: 137 × 67 × 39 mm; Weight: 0.55 kg
Country of Origin: Republic of Korea
ECCN: EAR99; HS Code: 8517690000
9100HI5F
- Type
- Single LNBs
- Frequency Band
- Ka-Band
- Frequency Range
- 17.2–22.2 GHz
- Number of Bands
- 5-Band
- Sub-Band
- Band 4: 20.2–21.2 GHz
- Sub-Band
- Band 3: 19.2–20.2 GHz
- Sub-Band
- Band 2: 18.2–19.2 GHz
- Sub-Band
- Band 1: 17.2–18.2 GHz
- Output Band
- Band 1: 950 – 1950 MHz
- Output Band
- Band 2: 950 – 1950 MHz
- Output Band
- Band 3: 950 – 1950 MHz
- Output Band
- Band 4: 950 – 1950 MHz
- LO Frequency
- Multiple LO
- LO Stability
- ±10 kHz
- Noise Figure
- 2.6 dB
- Typical Gain
- 60 dB
- Input Interface
- WR-42 Waveguide Grooved
- Output Connector
- F Type 75 Ohm
Specific References
Covers 17.20–22.20 GHz in five sub-bands:
• Band 1: 17.20 - 18.20 GHz
• Band 2: 18.20 - 19.20 GHz
• Band 3: 19.20 - 20.20 GHz
• Band 4: 20.20 - 21.20 GHz
• Band 5: 21.20 - 22.20 GHz
• LO Stability: ±10 kHz
• Noise Figure: 2.6 dB
• Output Connector: F Type 75 Ohm
• Integrated Waveguide Isolator: Yes
• Voltage/tone control: 13/18/22 V DC with 22 kHz Tone Switching
