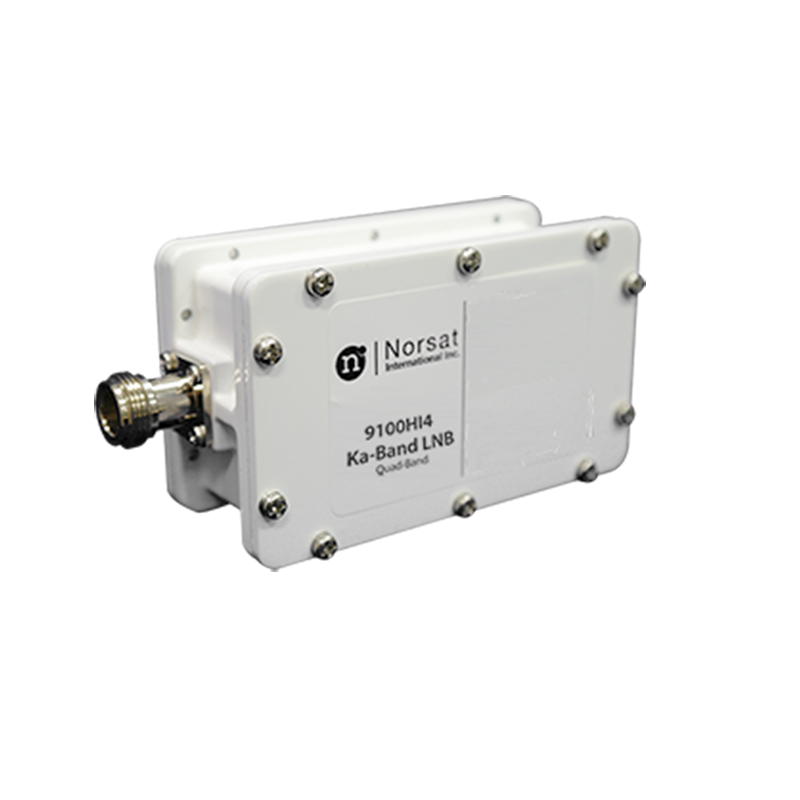

Norsat 9100HI4ECN – Ka-Band Quad-Band PLL LNB, N-Type (50Ω)
$4,048.00
Covers 17.20 – 21.20 GHz in four sub-bands:
• Band 1: 17.20 – 18.20 GHz
• Band 2: 18.20 – 19.20 GHz
• Band 3: 19.20 – 20.20 GHz
• Band 4: 20.20 – 21.20 GHz
• LO Stability: ±10 kHz
• Noise Figure: 1.5 dB
• Output Connector: N Type 50 Ohm
• Voltage/tone control: 13/18 V DC with 22 kHz Tone Switching
Security policy
Delivery policy
Return policy
Norsat 9100HI4ECN Ka-Band Quad-Band PLL LNB with Isolator
The Norsat 9100HI4ECN is a Ka-Band quad-band PLL LNB with integrated isolator for enhanced stability and performance. Covering 17.20–21.20 GHz with four switchable LOs, it delivers ±10 kHz stability, typ. 1.5 dB noise figure, and rugged IP67 protection for reliable SATCOM downlinking.
Band: Ka-Band (Quad-Band)
Input Frequencies: 17.20–18.20 GHz, 18.20–19.20 GHz, 19.20–20.20 GHz, 20.20–21.20 GHz
Output Frequencies: 950–1950 MHz (all bands)
LO Frequencies: 16.25 / 17.25 / 18.25 / 19.25 GHz
LO Stability: ±10 kHz (PLL)
Noise Figure: typ. 1.5 dB, max. 2.0 dB
Conversion Gain: typ. 60 dB (55–65 dB range), ≤4 dB flatness
Output P1dB: +10 dBm min.
Phase Noise: -95 dBc/Hz @100 kHz offset
Control: 13 V (no tone), 13 V + 22 kHz tone, 18 V (no tone), 18 V + 22 kHz tone
Input Connector: WR-42 waveguide, grooved
Output Connector: N-Type, 50 Ohm
Isolator: Integrated
Power: +12 to +24 VDC, 350 mA max
Environmental: -40°C to +60°C operating; -40°C to +80°C storage; IP67 rated
Dimensions: 156 × 67 × 39 mm; Weight: 0.56 kg
Country of Origin: Republic of Korea
ECCN: EAR99; HS Code: 8517690000
9100HI4ECN
- Type
- Single LNBs
- Frequency Band
- Ka-Band
- Frequency Range
- 17.20 – 21.20 GHz
- Number of Bands
- 4-Band
- Sub-Band
- Band 4: 20.2–21.2 GHz
- Sub-Band
- Band 3: 19.2–20.2 GHz
- Sub-Band
- Band 2: 18.2–19.2 GHz
- Sub-Band
- Band 1: 17.2–18.2 GHz
- Output Band
- Band 1: 950 – 1950 MHz
- Output Band
- Band 2: 950 – 1950 MHz
- Output Band
- Band 3: 950 – 1950 MHz
- Output Band
- Band 4: 950 – 1950 MHz
- LO Frequency
- Multiple LO
- LO Stability
- ±10 kHz
- Noise Figure
- 1.5 dB
- Typical Gain
- 60 dB
- Input Interface
- WR-42 Waveguide Grooved
- Output Connector
- N Type 50 Ohm
Specific References
Covers 17.20 – 21.20 GHz in four sub-bands:
• Band 1: 17.20 – 18.20 GHz
• Band 2: 18.20 – 19.20 GHz
• Band 3: 19.20 – 20.20 GHz
• Band 4: 20.20 – 21.20 GHz
• LO Stability: ±10 kHz
• Noise Figure: 1.5 dB
• Output Connector: N Type 50 Ohm
• Voltage/tone control: 13/18 V DC with 22 kHz Tone Switching
