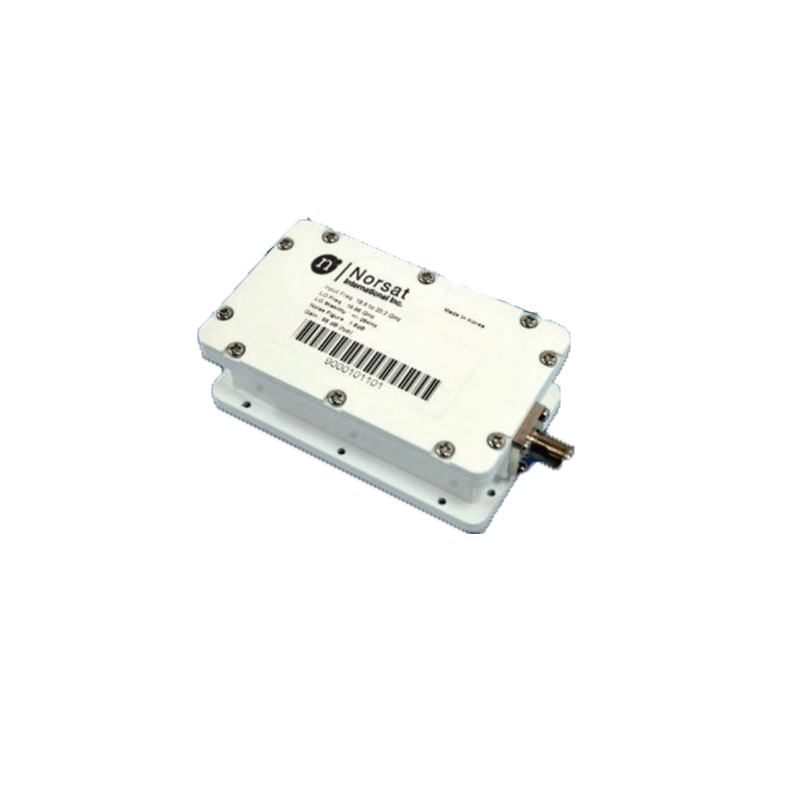

Norsat 9200HT-3F – Ka-Band Triple-Band PLL LNB, F-Type (75Ω)
$4,400.00
Covers 17.30 – 20.30 GHz in three sub-bands:
• Band 1: 17.30 - 18.30 GHz
• Band 2: 18.30 - 19.30 GHz
• Band 3: 19.30 - 20.30 GHz
• LO Stability: ±25 kHz
• Noise Figure: 1.6 dB
• Output Connector: F Type 75 Ohm
• Voltage/tone control: 13/18 V DC with 22 kHz Tone Switching
Security policy
Delivery policy
Return policy
Norsat 9200HT-3F Ka-Band Triple-Band PLL LNB
The Norsat 9200HT-3F is a Ka-Band triple-band PLL LNB engineered for high-performance SATCOM downlinking. Covering 17.30–20.30 GHz across three switchable bands, it provides ±25 kHz LO stability, typ. 1.6 dB noise figure, and rugged IP67 protection for dependable operation in demanding conditions.
Band: Ka-Band (Triple-Band)
Input Frequencies:
• Band 1: 17.30–18.30 GHz
• Band 2: 18.30–19.30 GHz
• Band 3: 19.30–20.30 GHz
Output Frequencies: 950–1950 MHz (all bands)
LO Frequencies: 16.35 / 17.35 / 18.35 GHz
LO Stability: ±25 kHz (PLL)
Noise Figure: typ. 1.6 dB, max. 2.0 dB
Conversion Gain: typ. 65 dB (58–70 dB range), ±2 dB flatness
Output P1dB: +5 dBm min.
Control: 13 V (Band 1), 18 V (Band 2), 13 V + 22 kHz tone (Band 3)
Input Connector: WR-42 waveguide, grooved
Output Connector: F-Type, 75 Ohm
Phase Noise: -70 dBc/Hz @1 kHz; -80 dBc/Hz @10 kHz; -90 dBc/Hz @100 kHz
Power: +11 to +26 VDC, 400 mA max
Environmental: -40°C to +60°C operation; -40°C to +80°C storage; IP67 rated
Dimensions: 133 × 70 × 39 mm; Weight: 0.5 kg
Country of Origin: Republic of Korea
ECCN: EAR99; HS Code: 8517690000
9200HT-3F
- Type
- Single LNBs
- Frequency Band
- Ka-Band
- Frequency Range
- 17.30 – 20.20 GHz
- Number of Bands
- 3-Band
- Sub-Band
- Band 1: 17.3–18.3 GHz
- Sub-Band
- Band 2: 18.3–19.3 GHz
- Sub-Band
- Band 3: 19.3–20.3 GHz
- Output Band
- Band 1: 950 – 1950 MHz
- Output Band
- Band 2: 950 – 1950 MHz
- Output Band
- Band 3: 950 – 1950 MHz
- LO Frequency
- Multiple LO
- LO Stability
- ±25 kHz
- Noise Figure
- 1.6 dB
- Typical Gain
- 65 dB
- Input Interface
- WR-42 Waveguide Grooved
- Output Connector
- F Type 75 Ohm
Specific References
Covers 17.30 – 20.30 GHz in three sub-bands:
• Band 1: 17.30 - 18.30 GHz
• Band 2: 18.30 - 19.30 GHz
• Band 3: 19.30 - 20.30 GHz
• LO Stability: ±25 kHz
• Noise Figure: 1.6 dB
• Output Connector: F Type 75 Ohm
• Voltage/tone control: 13/18 V DC with 22 kHz Tone Switching
