Norsat Q1000HF – Q-Band Single-Band PLL LNB, F-Type (75Ω)

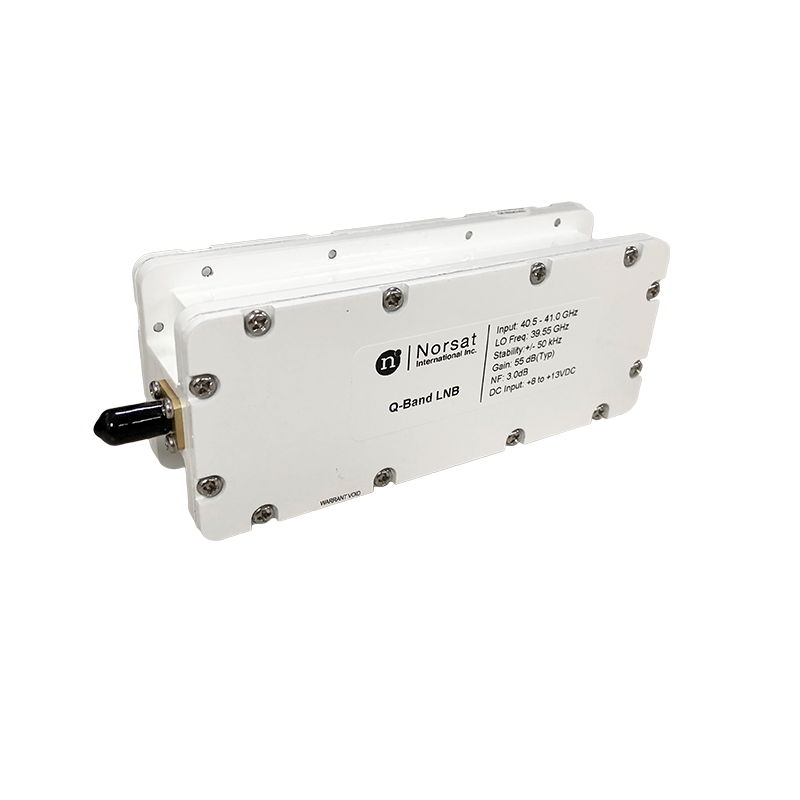

Norsat Q1000HF Q-Band Single-Band PLL LNB

The Norsat Q1000HF is a Q-Band single-band PLL LNB engineered for advanced satellite communications. Covering 40.50–41.00 GHz with ±50 kHz stability, it delivers robust performance with a max. 3.0 dB noise figure, high conversion gain, and rugged IP-rated construction for reliable operation in challenging environments.

Band: Q-Band (Single-Band)
Input Frequency: 40.50–41.00 GHz
Output Frequency: 950–1450 MHz
LO Frequency: 39.55 GHz
LO Stability: ±50 kHz (PLL)
Noise Figure: max. 3.0 dB
Conversion Gain: 50–60 dB, ≤3 dB flatness
Output P1dB: +5 dBm min.
Phase Noise: -90 dBc/Hz @100 kHz
Input Connector: WR-22 waveguide, grooved
Output Connector: F-Type, 75 Ohm
Power: +8 to +13 VDC, 1000 mA max
Environmental: -40°C to +50°C operating, -40°C to +80°C storage
Dimensions: 146 × 55 × 39 mm; Weight: 0.7 kg
Country of Origin: Republic of Korea
ECCN: EAR99; HS Code: 8517690000
