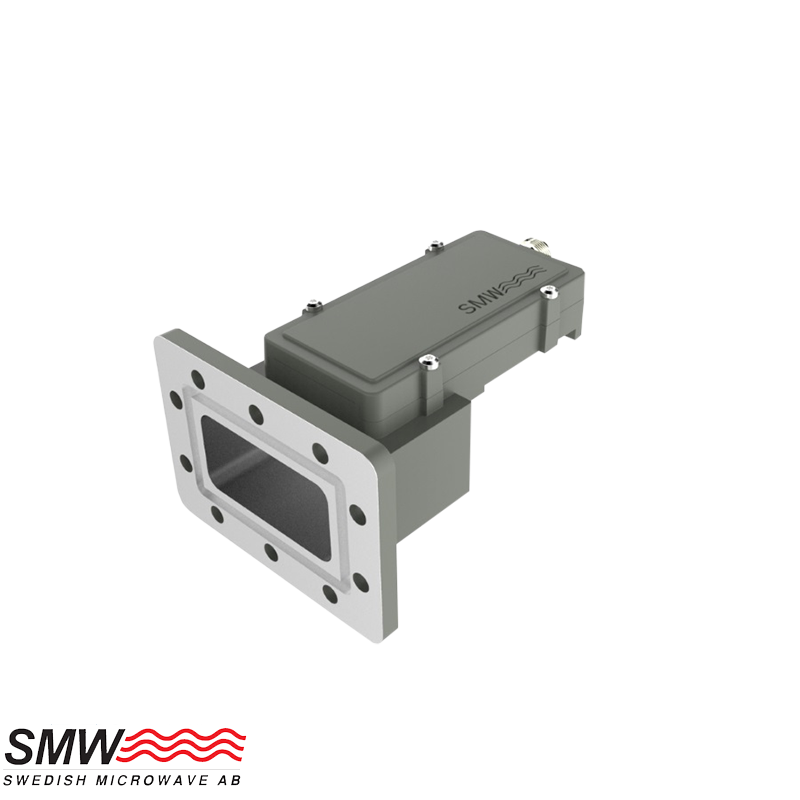

SMW C LNB 3.40-4.80 GHz 1 Band
• Integrated filter
• Available band / LO Frequency / Output Frequency:
3.4–4.2 GHz / 5.15 GHz / 950–1750 MHz
3.4–4.8 GHz / 5.75 GHz / 950–2350 MHz
3.6–4.8 GHz / 5.75 GHz / 950–2150 MHz
3.625–4.2 GHz / 5.15 GHz / 950–1525 MHz
3.7–4.2 GHz / 5.15 GHz / 950–1450 MHz
3.8–4.2 GHz / 5.30 GHz / 1100–1500 MHz
4.5–4.8 GHz / 5.75 GHz / 950–1250 MHz
4.5–4.8 GHz / 5.95 GHz / 1150–1450 MHz
• Available Output Connector Types: N, F or SMA
Security policy
Delivery policy
Return policy
SMW C LNB 3.40–4.80 GHz 1 Band Single-Band PLL LNB
The SMW C LNB 3.40–4.80 GHz 1 Band is a high-performance C-Band PLL LNB with integrated filters for interference protection from 5G and WiMAX. Engineered for professional SATCOM and DVB-S2X applications, it offers low phase noise, high output power, and flexible reference options (internal or external 10 MHz).
Input Frequency: 3.40 – 4.80 GHz (various sub-band models available)
Local Oscillator (LO): 5.15 / 5.30 / 5.75 / 5.95 GHz (model dependent)
Output Frequency: 950 – 2350 MHz (band dependent)
LO Stability:
±0.5 ppm internal (–20 to +70 °C),
±1 ppm internal (–40 to +80 °C);
External 10 MHz ref –15 to +5 dBm via output or SMA port
Noise Figure: typ. 0.69 dB (≈ 50 K)
Gain: typ. 60 dB (min. 55 dB), ± 2 dB flatness
Output P1dB: +15 dBm typ.
Output IP3: +25 dBm typ.
Input VSWR: ≤ 2.5:1; Output VSWR: ≤ 2.1:1
Image Rejection: ≥ 40 dB
Out-of-Band Rejection: ≥ 20 dB
Phase Noise: –62 dBc/Hz @100 Hz; –80 @1 kHz; –88 @10 kHz; –95 @100 kHz
Group Delay: ± 1 ns max.
Power Supply: +12 to +18 V DC, 430 mA typ. via output port
Input Connector: WR-229 / CPR-229G waveguide
Output Connector: F-type (75 Ω), N-type or SMA (50 Ω)
Operating Temperature: –40 to +80 °C
Dimensions: 142 × 99 × 70 mm (F/SMA); 148 × 99 × 70 mm (N)
Weight: 380 g (F/SMA); 396 g (N)
MTBF: > 489 000 hours (GF condition, MIL-HDBK-217F)
Includes: Mounting hardware and O-ring
Country of Origin: Sweden
SMW C LNB 3.40-4.80 GHz 1 Band
- Type
- Single LNBs
- Frequency Band
- C-Band
- Frequency Range
- 3.4 – 4.8 GHz
- Number of Bands
- Single-Band
- Input Band
- 3.7–4.2 GHz
- Input Band
- 3.625–4.2 GHz
- Input Band
- 4.5–4.8 GHz
- Input Band
- 3.8–4.2 GHz
- Input Band
- 3.6–4.8 GHz
- Input Band
- 3.4–4.8 GHz
- Input Band
- 3.4–4.2 GHz
- LO Frequency
- 5.15 GHz
- LO Frequency
- 5.95 GHz
- LO Frequency
- 5.75 GHz
- LO Frequency
- 5.30 GHz
- LO Stability
- External Reference
- LO Stability
- ±2.5 kHz
- LO Stability
- ±5 kHz
- Noise Figure
- 0.69 dB
- Typical Gain
- 60 dB
- Input Interface
- CPR 229G Waveguide Grooved
- Output Connector
- F Type 75 Ohm
- Output Connector
- N Type 50 Ohm
- Output Connector
- SMA Type 50 Ohm
Specific References
• Integrated filter
• Available band / LO Frequency / Output Frequency:
3.4–4.2 GHz / 5.15 GHz / 950–1750 MHz
3.4–4.8 GHz / 5.75 GHz / 950–2350 MHz
3.6–4.8 GHz / 5.75 GHz / 950–2150 MHz
3.625–4.2 GHz / 5.15 GHz / 950–1525 MHz
3.7–4.2 GHz / 5.15 GHz / 950–1450 MHz
3.8–4.2 GHz / 5.30 GHz / 1100–1500 MHz
4.5–4.8 GHz / 5.75 GHz / 950–1250 MHz
4.5–4.8 GHz / 5.95 GHz / 1150–1450 MHz
• Available Output Connector Types: N, F or SMA
