SMW Ku LNB 10.70-12.75 GHz 1 Band
• Auto Switch between External reference or Internal reference
• Alarm, Monitoring & Control as option
• Available bands / LO Frequency / Output Frequency:
10.7–11.8 GHz / 9.75 GHz / 950–2050 MHz
10.95–12.1 GHz / 10.0 GHz / 950–2100 MHz
11.2–11.7 GHz / 10.25 GHz / 950–1450 MHz
11.45–12.2 GHz / 10.5 GHz / 950–1700 MHz
11.65–12.75 GHz / 10.7 GHz / 950–2050 MHz
11.7–12.75 GHz / 10.6 GHz / 1100–2150 MHz
11.7–12.75 GHz / 10.75 GHz / 950–2000 MHz
12.2–12.75 GHz / 11.2 GHz / 1000–1550 MHz
12.2–12.75 GHz / 11.25 GHz / 950–1500 MHz
12.25–12.75 GHz / 11.3 GHz / 950–1450 MHz
Security policy
Delivery policy
Return policy

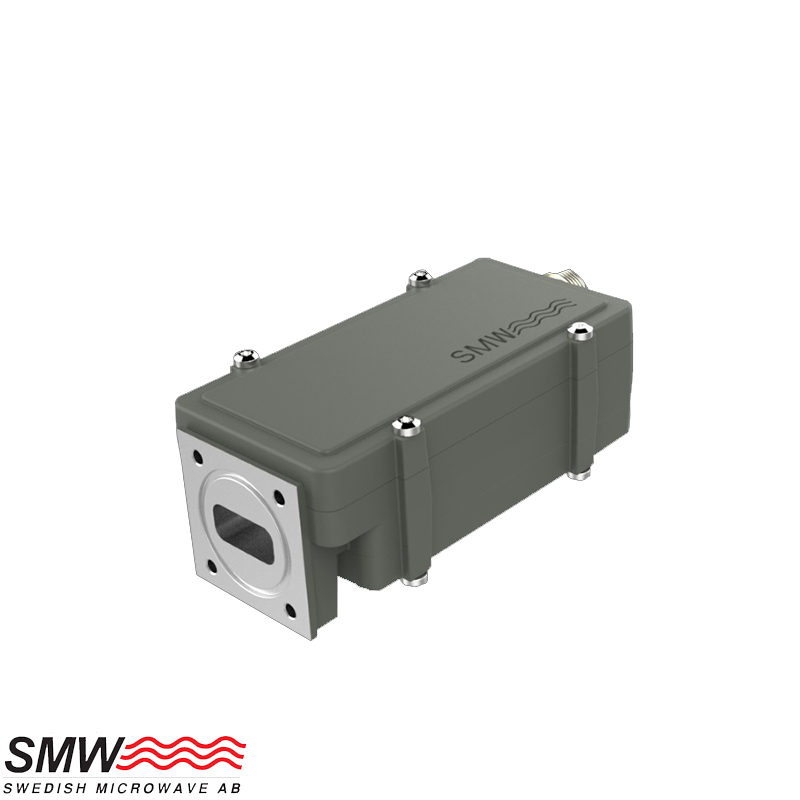

SMW Ku LNB 10.70–12.75 GHz 1 Band Single-Band PLL LNB
The SMW Ku LNB 10.70–12.75 GHz 1 Band is a premium single-band PLL LNB engineered for high-performance satellite communications. Featuring excellent phase noise, auto external 10 MHz reference with internal fallback, and optional alarm and M&C functions via Modbus RS485, it ensures outstanding stability and reliability for broadcast and data applications.
Input Frequency: 10.70 – 12.75 GHz
Output Frequency: 950 – 2150 MHz
Local Oscillator (LO): Selectable (9.75 / 10.00 / 10.25 / 10.50 / 10.60 / 10.70 / 10.75 / 11.20 / 11.25 / 11.30 GHz)
LO Stability: ±2.5 ppm (–40 to +80 °C) auto-switching ext 10 MHz / internal ref
External Reference: –10 to +10 dBm via output or optional SMA port
Noise Figure: typ. 0.8 dB (59 K), max. 1.0 dB (75 K)
Gain: typ. 60 dB (min. 55 dB); flatness ±1.5 dB
Output P1dB: +15 dBm min. Output IP3: +25 dBm min.
Phase Noise: –65 dBc/Hz @ 100 Hz, –82 @ 1 kHz, –86 @ 10 kHz, –95 @ 100 kHz, –120 @ 1 MHz
Input VSWR: 1.9:1 typ. (3.0:1 max.); Output VSWR: 1.7:1 (N/SMA), 2.3:1 (F)
Power Supply: +12 to +24 V DC (11 min / 26 max), 5 W max
Input Connector: WR75 / R120 (PBR120 flange), pressurizable 0.1 bar max
Output Connector: N-female 50 Ω (standard), optional F or SMA female
Alarm & M&C (Option): RS485 Modbus interface for LO lock, supply status & signal monitoring
Dimensions: 128 × 56 × 47 mm (with N connector)
Weight: 370 g
Operating Temperature: –40 to +80 °C
MTBF: > 690,000 hours (Ground Fixed per MIL-HDBK-217F)
Includes: O-ring and mounting screws
Country of Origin: Sweden
SMW Ku LNB 10.70-12.75 GHz 1 Band
- Type
- Single LNBs
- Frequency Band
- Ku-Band
- Frequency Range
- 10.70 – 12.75 GHz
- Number of Bands
- Single-Band
- Input Band
- 11.7–12.75 GHz
- Input Band
- 10.7–11.8 GHz
- Input Band
- 11.2–11.7 GHz
- Input Band
- 12.2–12.75 GHz
- Input Band
- 11.45–12.2 GHz
- Input Band
- 11.65–12.75 GHz
- Input Band
- 10.95–12.1 GHz
- Input Band
- 12.25–12.75 GHz
- LO Frequency
- 10.25 GHz
- LO Frequency
- 11.20 GHz
- LO Frequency
- 10.70 GHz
- LO Frequency
- 10.50 GHz
- LO Frequency
- 10.60 GHz
- LO Frequency
- 11.25 GHz
- LO Frequency
- 9.75 GHz
- LO Frequency
- 10.00 GHz
- LO Frequency
- 11.30 GHz
- LO Frequency
- 10.75 GHz
- Noise Figure
- 0.8 dB
- Typical Gain
- 60 dB
- Input Interface
- WR-75 waveguide grooved
- Output Connector
- F Type 75 Ohm
- Output Connector
- N Type 50 Ohm
- Output Connector
- SMA Type 50 Ohm
Specific References
• Auto Switch between External reference or Internal reference
• Alarm, Monitoring & Control as option
• Available bands / LO Frequency / Output Frequency:
10.7–11.8 GHz / 9.75 GHz / 950–2050 MHz
10.95–12.1 GHz / 10.0 GHz / 950–2100 MHz
11.2–11.7 GHz / 10.25 GHz / 950–1450 MHz
11.45–12.2 GHz / 10.5 GHz / 950–1700 MHz
11.65–12.75 GHz / 10.7 GHz / 950–2050 MHz
11.7–12.75 GHz / 10.6 GHz / 1100–2150 MHz
11.7–12.75 GHz / 10.75 GHz / 950–2000 MHz
12.2–12.75 GHz / 11.2 GHz / 1000–1550 MHz
12.2–12.75 GHz / 11.25 GHz / 950–1500 MHz
12.25–12.75 GHz / 11.3 GHz / 950–1450 MHz
