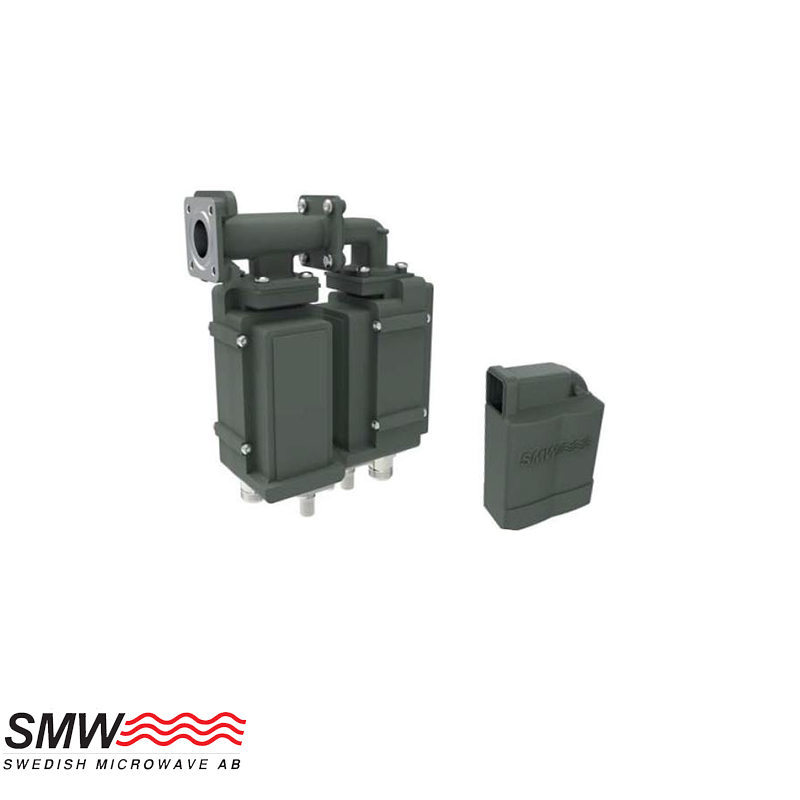

SMW Ku LNB 10.75-12.75 GHz WDL Quattro

SMW Ku-Band WDL Quattro LNB | 10.70–12.75 GHz Dual-Band, Dual-Pol with ULP

The SMW Ku-Band WDL Quattro LNB supports simultaneous Low and High Ku-Band reception (10.70–12.75 GHz) with Ultra Low Phase Noise (ULP) for optimal DVB-S2/S2X and NS3/NS4 performance. Available in Dual or Quattro configurations with vertical and horizontal polarization support via an integrated OMT, it features rugged outdoor housing and internal or external 10 MHz reference options.

Key Features

• Full Ku-Band reception: 10.70–12.75 GHz (Model E), 10.95–12.75 GHz (Model B)

• Dual-band output for Low and High bands

• Ultra Low Phase Noise (ULP) for advanced modulation compatibility

• Quattro version supports H/V polarization with integrated OMT

• External 10 MHz or internal ±1 ppm reference

• Weather-sealed housing for outdoor durability
