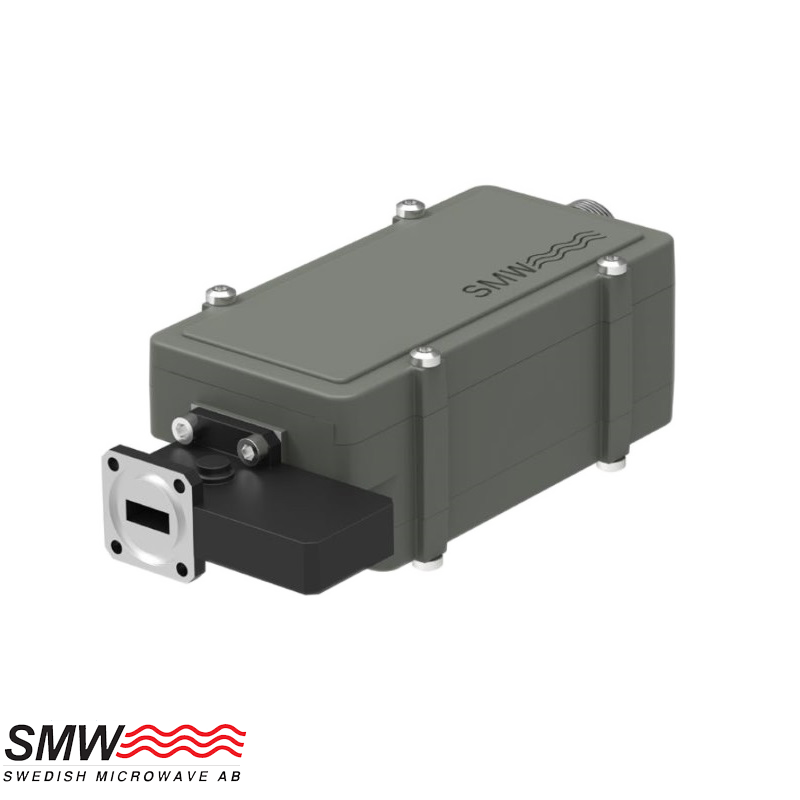

SMW Ka LNB 17.30-22.30 GHz 3-8 Band
• Auto Switch between External or Internal reference
• High P1dB and IP3
• Excellent Phase noise meets all profiles of DVB-S2X.
• 3-8 bands, switching via V/T or optional M&C
• Wide operating temperature range
• Alarm and Monitoring & Control as option
Security policy
Delivery policy
Return policy
SMW Ka LNB 17.30 – 22.30 GHz 3–8 Band PLL LNB
The SMW Ka LNB 17.30 – 22.30 GHz 3–8 Band PLL LNB is a professional multiband receiver covering 17.2 – 22.3 GHz with up to eight selectable sub-bands. It features auto-switching between internal and external 10 MHz references, low phase noise compliant with DVB-S2X profiles, and optional RS-485 M&C for network monitoring and alarm integration. Ideal for teleport, gateway, and Ka uplink applications.
Input Frequency: 17.20 – 22.30 GHz (3 to 8 custom sub-bands, overlap possible)
LO Frequencies: Custom 16.25 – 20.75 GHz (3–8 programmable LOs)
Output Frequency: 950 – 1950 MHz (950–2250 MHz optional)
Noise Figure: typ. 1.3 – 1.7 dB (increases with frequency)
Gain: typ. 60 dB (min. 55 dB); flatness ±0.4 dB within 30 MHz / ±2 dB per band
Phase Noise: –35 @10 Hz • –65 @100 Hz • –80 @1 kHz • –85 @10 kHz • –95 @100 kHz • –112 @1 MHz
LO Reference: Auto External 10 MHz (–10 to +10 dBm) / Internal ±2.5 ppm (–40 to +80 °C)
Switching: Legacy 13/15/18/24 V & 22 kHz tone or RS-485 (Modbus RTU)
Input VSWR: 1.35 : 1 max with included low-loss isolator
Output P1dB: +15 dBm min Output IP3: +25 dBm min
Output Connector: N-female (50 Ω), SMA (50 Ω), or F-female (75 Ω)
Power Supply: +11 – +26 V DC (5 W max) via output or separate SMA port
Alarm / M&C (option): RS-485 (Modbus RTU) with sum alarm for LNA fail, LO lock, supply low, etc.
Dimensions: 153 × 68 × 45 mm Weight: ≈ 375 g (with isolator)
Operating Temperature: –40 to +80 °C MTBF: > 690 000 h (Ground Fixed)
Country of Origin: Sweden
SMW Ka LNB 17.30-22.30 GHz 3-8 Band
- Type
- Single LNBs
- Frequency Band
- Ka-Band
- Frequency Range
- 17.30 – 22.30 GHz
- Number of Bands
- 8-Band
- Number of Bands
- 6-Band
- Number of Bands
- 5-Band
- Number of Bands
- 4-Band
- Number of Bands
- 3-Band
- Sub-Band
- Band 2: 19.2–20.2 GHz
- Sub-Band
- Band 2: 20.2–21.2 GHz
- Sub-Band
- Band 2: 18.7–19.7 GHz
- Sub-Band
- Band 2: 18.45–19.45 GHz
- Sub-Band
- Band 2: 18.4–19.4 GHz
- Sub-Band
- Band 2: 18.3–19.3 GHz
- Sub-Band
- Band 2: 18.2–19.2 GHz
- Sub-Band
- Band 2: 18.0–19.0 GHz
- Sub-Band
- Band 1: 19.2–20.2 GHz
- Sub-Band
- Band 1: 18.2–19.2 GHz
- Sub-Band
- Band 1: 17.7–18.7 GHz
- Sub-Band
- Band 1: 17.5–18.5 GHz
- Sub-Band
- Band 1: 17.2–18.2 GHz
- Sub-Band
- Band 1: 17.3–18.3 GHz
- Sub-Band
- Band 5: 21.1–22.1 GHz
- Sub-Band
- Band 8: 21.7–22.3 GHz
- Sub-Band
- Band 7: 21.1–22.1 GHz
- Sub-Band
- Band 6: 20.45–21.45 GHz
- Sub-Band
- Band 5: 19.8–20.8 GHz
- Sub-Band
- Band 4: 19.15–20.15 GHz
- Sub-Band
- Band 3: 18.5–19.5 GHz
- Sub-Band
- Band 2: 17.85–18.85 GHz
- Sub-Band
- Band 6: 20.8–21.3 GHz
- Sub-Band
- Band 5: 20.1–21.1 GHz
- Sub-Band
- Band 4: 20.7–21.7 GHz
- Sub-Band
- Band 5: 21.2–22.2 GHz
- Sub-Band
- Band 4: 21.2–22.2 GHz
- Sub-Band
- Band 4: 20.2–21.2 GHz
- Sub-Band
- Band 4: 19.4–20.4 GHz
- Sub-Band
- Band 3: 21.2–22.2 GHz
- Sub-Band
- Band 3: 20.2–21.2 GHz
- Sub-Band
- Band 3: 19.7–20.7 GHz
- Sub-Band
- Band 3: 19.3–20.3 GHz
- Sub-Band
- Band 3: 19.2–20.2 GHz
- Sub-Band
- Band 3: 18.7–19.7 GHz
- LO Frequency
- 17.25 GHz
- LO Frequency
- 18.35 GHz
- LO Frequency
- 17.50 GHz
- LO Frequency
- 16.55 GHz
- LO Frequency
- 18.85 GHz
- LO Frequency
- 17.55 GHz
- LO Frequency
- 19.15 GHz
- LO Frequency
- 17.45 GHz
- LO Frequency
- 18.75 GHz
- LO Frequency
- 18.20 GHz
- LO Frequency
- 17.75 GHz
- LO Frequency
- 17.35 GHz
- LO Frequency
- 16.75 GHz
- LO Frequency
- 16.35 GHz
- LO Frequency
- 16.25 GHz
- LO Frequency
- 20.25 GHz
- LO Frequency
- 18.25 GHz
- LO Frequency
- 19.25 GHz
- LO Frequency
- 17.05 GHz
- LO Frequency
- 18.45 GHz
- LO Frequency
- Multiple LO
- LO Frequency
- 20.15 GHz
- LO Frequency
- 19.75 GHz
- LO Frequency
- 19.85 GHz
- LO Frequency
- 16.9 GHz
- LO Frequency
- 19.5 GHz
- LO Frequency
- 20.75 GHz
- LO Stability
- ±25 kHz (Auto-reference)
- Noise Figure
- 1.3 dB
- Typical Gain
- 60 dB
- Input Interface
- WR-42 Waveguide Grooved
- Output Connector
- SMA Type 50 Ohm
- Output Connector
- F Type 75 Ohm
- Output Connector
- N Type 50 Ohm
