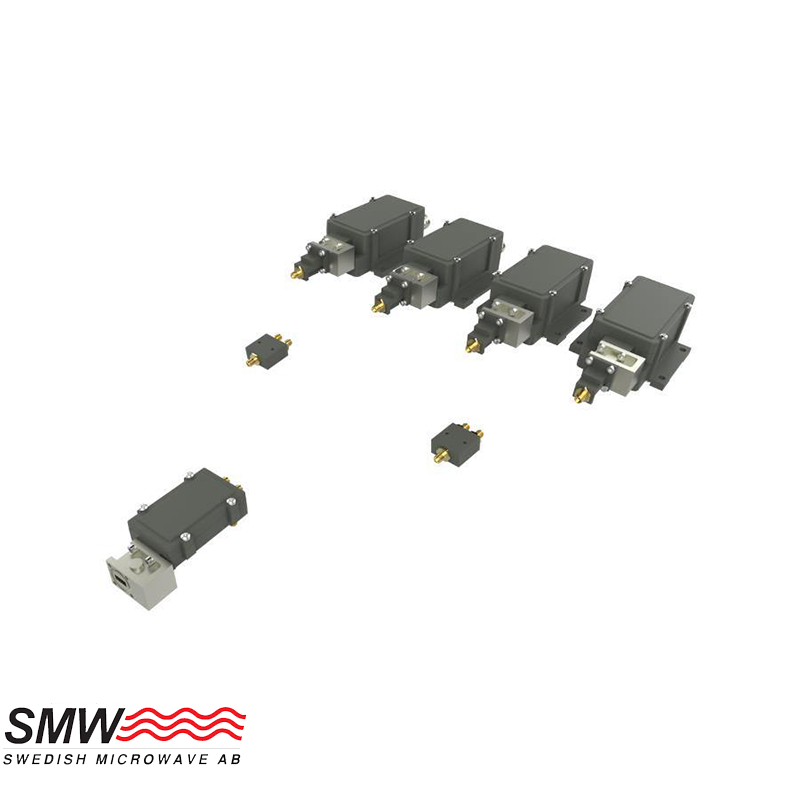

SMW Ka-Band Quad System | 17.30–22.30 GHz Full Receive Coverage
The SMW Ka-Band Quad System offers complete 17.30–22.30 GHz reception with four wideband LNAs and BDCs, each featuring integrated waveguide isolators. Designed for advanced SATCOM applications, it delivers outstanding phase noise, high linearity, and optional RS485 M&C with daisy-chain control and alarms.
Key Features
-
Full Ka-Band receive range: 17.30–22.30 GHz
-
4x LNAs + 4x BDCs with waveguide isolators
-
Excellent phase noise for DVB-S2X compliance
-
High P1dB and IP3 for signal integrity
-
Matched HF cables for low-loss connections
-
Auto 10 MHz reference switching (ext/int)
-
Optional RS485 Modbus M&C and custom LO/gain settings
SMW Ka System 17.30–22.30 GHz Quad
- Input Band
- 17.30 - 18.55 GHz
- Input Band
- 18.55 - 19.80 GHz
- Input Band
- 19.80 - 21.05 GHz
- Input Band
- 21.05 - 22.30 GHz
Specific References
