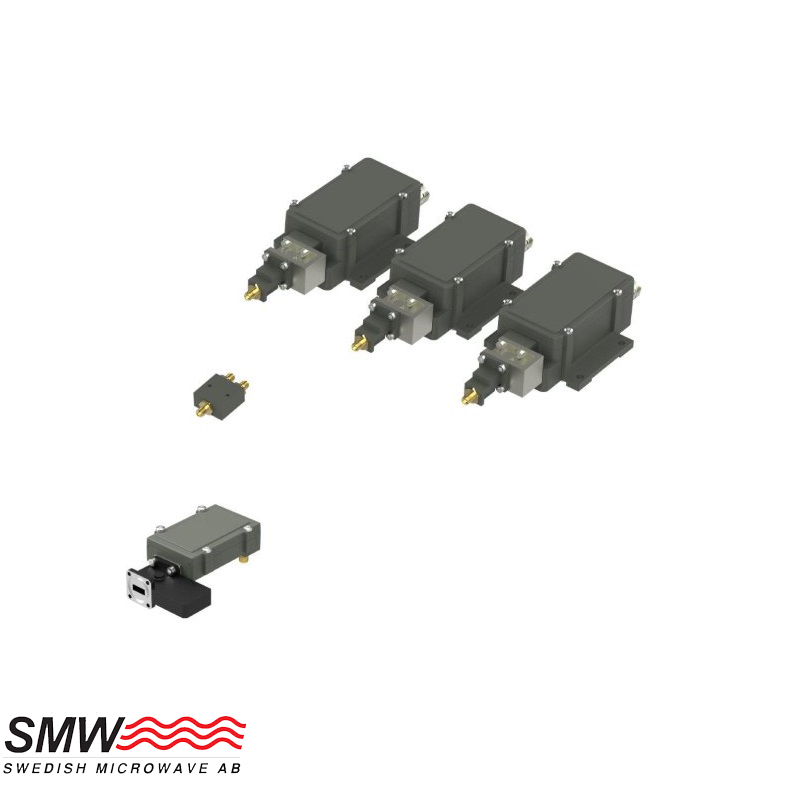

SMW Ka-Band Triple System | 17.30–22.30 GHz | LNA + BDC for Full Receive Coverage
The SMW Ka-Band Triple System delivers complete 17.30–22.30 GHz coverage with three LNAs and three BDCs, each featuring integrated waveguide isolators and matched high-frequency cables. Designed for critical SATCOM ground stations, it offers low phase noise, high linearity, and optional Modbus RS485 monitoring.
Key Features:
-
Full Ka-band coverage: 17.30–22.30 GHz
-
3x wideband LNAs + 3x BDCs with isolators
-
Excellent DVB-S2X phase noise performance
-
Auto LO reference switching (10 MHz ext/int)
-
Optional RS485 M&C, alarms, and custom LO/gain
-
Outdoor-rated, mission-ready system design
SMW Ka System 17.30-22.30 GHz Triple
- Input Band
- 17.70 - 18.90 GHz
- Input Band
- 18.90 - 20.10 GHz
- Input Band
- 20.10 - 21.30 GHz
