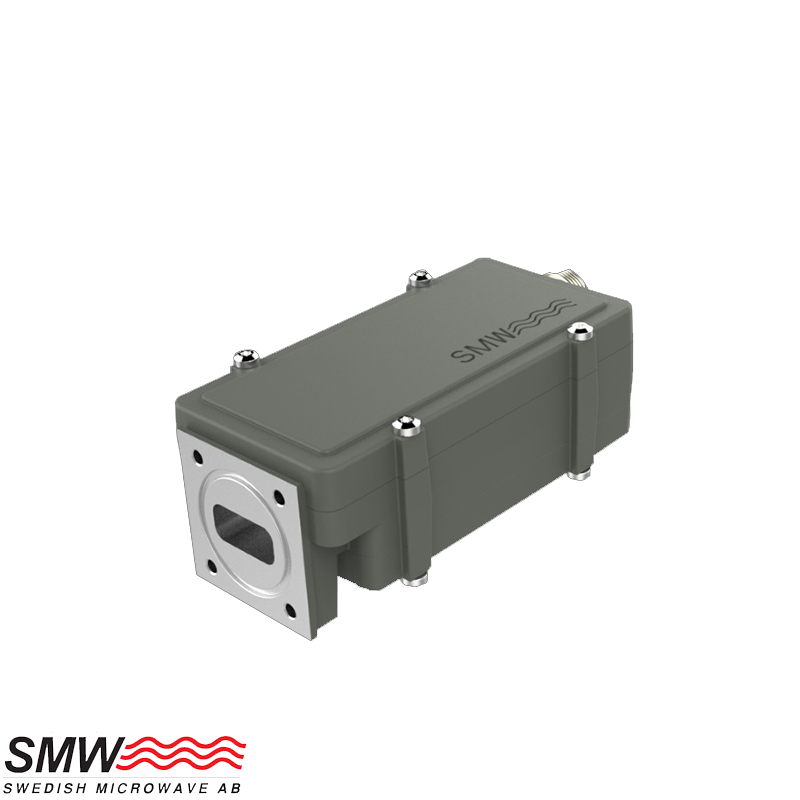

SMW Ku LNB 12.70–15.50 GHz 1-4 Band
• Auto-switch external 10 MHz reference with fallback to Internal reference
• Single Band or Multiband
• Input frequency range 12.70–15.50 GHz
• Excellent Phase Noise
• Alarm and Monitoring & Control
• Available band / LO Frequency:
12.7–14.2 GHz / 11.75 GHz
12.75–14.25 GHz / 11.8 GHz
13.0–14.5 GHz / 12.0 GHz
13.45–14.95 GHz / 12.5 GHz
13.5–15.0 GHz / 12.55 GHz
13.75–15.25 GHz / 12.8 GHz
13.95–15.45 GHz / 13.0 GHz
14.0–15.5 GHz / 13.05 GHz
14.05–15.5 GHz / 13.1 GHz
14.9–15.5 GHz / 13.2 GHz
14.5–15.5 GHz / 13.5 GHz
• Any combination of above LOs or customized, max 8 Bands
Security policy
Delivery policy
Return policy
SMW Ku LNB 12.70–15.50 GHz 1–4 Band Uplink Monitoring PLL LNB
The SMW Ku LNB 12.70–15.50 GHz 1–4 Band Uplink Monitoring is a professional multiband PLL LNB designed for uplink system monitoring, test, and RF network supervision. It supports up to 8 programmable sub-bands with autoswitch 10 MHz reference, advanced alarm & M&C functions, and excellent phase-noise performance.
Input Frequency: 12.70 – 15.50 GHz
LO Frequencies: 11.75 – 13.50 GHz (1–4 band configurable, up to 8 bands custom)
Output Frequency: 950 – 2450 MHz
Noise Figure: typ. 1.3 dB (92 K max @ 40–55 dB gain)
Gain: 0–55 dB programmable (in 5 dB steps); flatness ±1.5 dB typ.
Phase Noise: –35 @ 10 Hz • –63 @ 100 Hz • –83 @ 1 kHz • –85 @ 10 kHz • –118 @ 1 MHz
LO Reference: Auto external 10 MHz (–10 to +10 dBm) with internal ±2.5 ppm fallback
Alarm / M&C: RS-485 (Modbus RTU) interface with LO lock, LNA fail, and supply monitoring
Output P1dB: +15 dBm min Output IP3: +25 dBm min
Input Connector: WR75 / R120 (PBR120 flange), pressurizable to 0.1 bar
Output Connector: N-female (50 Ω), optional SMA (50 Ω) or F-female (75 Ω)
Power Supply: +11 to +26 V DC (6 W max) via output or separate SMA connector
Dimensions: 128 × 56 × 47 mm Weight: 360 g
Operating Temperature: –40 to +80 °C MTBF: > 690 000 h (ground fixed)
Country of Origin: Sweden
SMW LNB 12.70–15.50 GHz 1-4 Band
- Type
- Single LNBs
- Frequency Band
- Ku-Band
- Frequency Range
- 12.70 – 15.50 GHz
- Number of Bands
- 6-Band
- Number of Bands
- 5-Band
- Number of Bands
- 4-Band
- Number of Bands
- 3-Band
- Number of Bands
- 2-Band
- Number of Bands
- 7-Band
- Number of Bands
- 8-Band
- Number of Bands
- Single-Band
- Sub-Band
- Band 1: 12.7–14.2 GHz
- Sub-Band
- Band 1: 12.75–14.25 GHz
- Sub-Band
- Band 1: 13.0–14.5 GHz
- Sub-Band
- Band 1: 13.45–14.95 GHz
- Sub-Band
- Band 1: 13.5–15.0 GHz
- Sub-Band
- Band 1: 13.75–15.25 GHz
- Sub-Band
- Band 1: 13.95–15.45 GHz
- Sub-Band
- Band 1: 14.0–15.5 GHz
- Sub-Band
- Band 1: 14.05–15.5 GHz
- Sub-Band
- Band 1: 14.9–15.5 GHz
- Sub-Band
- Band 1: 14.5–15.5 GHz
- LO Frequency
- 13.20 GHz
- LO Frequency
- 13.05 GHz
- LO Frequency
- 12.80 GHz
- LO Frequency
- 11.80 GHz
- LO Frequency
- 11.75 GHz
- LO Frequency
- 12.00 GHz
- LO Frequency
- 12.50 GHz
- LO Frequency
- 12.55 GHz
- LO Frequency
- 13.00 GHz
- LO Frequency
- 13.10 GHz
- LO Frequency
- 13.50 GHz
- LO Frequency
- Multiple LO
- LO Stability
- ±25 kHz (Auto-reference)
- Noise Figure
- 1.3 dB
- Typical Gain
- 55 dB
- Input Interface
- WR-75 waveguide grooved
- Output Connector
- SMA Type 50 Ohm
- Output Connector
- N Type 50 Ohm
- Output Connector
- F Type 75 Ohm
Specific References
• Auto-switch external 10 MHz reference with fallback to Internal reference
• Single Band or Multiband
• Input frequency range 12.70–15.50 GHz
• Excellent Phase Noise
• Alarm and Monitoring & Control
• Available band / LO Frequency:
12.7–14.2 GHz / 11.75 GHz
12.75–14.25 GHz / 11.8 GHz
13.0–14.5 GHz / 12.0 GHz
13.45–14.95 GHz / 12.5 GHz
13.5–15.0 GHz / 12.55 GHz
13.75–15.25 GHz / 12.8 GHz
13.95–15.45 GHz / 13.0 GHz
14.0–15.5 GHz / 13.05 GHz
14.05–15.5 GHz / 13.1 GHz
14.9–15.5 GHz / 13.2 GHz
14.5–15.5 GHz / 13.5 GHz
• Any combination of above LOs or customized, max 8 Bands
