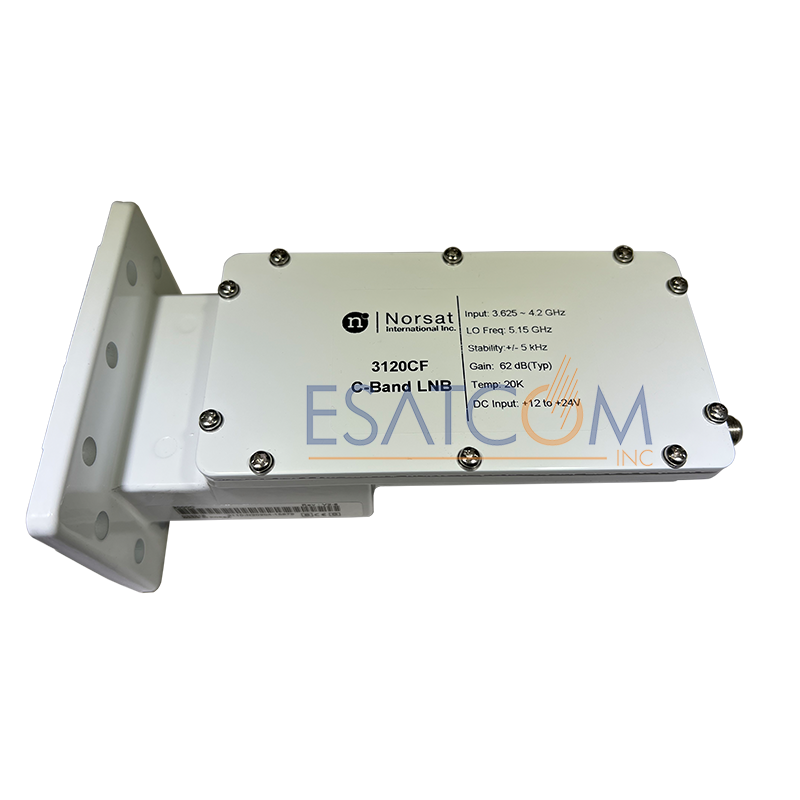

Norsat 3120CF – C-Band Single-Band PLL LNB, F-Type (75Ω)
$372.00
• Input Band: 3.625–4.20 GHz
• LO Stability: ±5 kHz
• Noise Temperature: 20K
• Output Connector: F-type, 75 Ω
Security policy
Delivery policy
Return policy
Norsat 3120CF Single-Band C-Band PLL LNB
The Norsat 3120CF is a single-band C-Band PLL LNB with ±5 kHz LO stability and a typ. 20K noise temperature, designed for stable downlinking from 3.625 to 4.20 GHz. It features a 75 Ohm F-type output, CPR229G waveguide input, and IP67-rated protection for reliable SATCOM performance in challenging environments.
Frequency Band: 3.625–4.20 GHz
Output Frequency: 950–1525 MHz
Local Oscillator: 5.15 GHz
LO Stability: ±5 kHz
Noise Temperature: typ. 20K, max. 25K
Gain: typ. 62 dB (60–70 dB range), ≤4 dB p-p flatness
Output Connector: F-Type, 75 Ohm
Input: CPR229G waveguide grooved
Power: +12 to +24 VDC
Environmental: -40°C to +60°C, IP67
Dimensions: 180 x 100 x 70 mm; Weight: 0.575 kg
Made in Republic of Korea; ECCN: EAR99
3120CF
- Frequency Band
- C-Band
- Frequency Range
- 3.625 – 4.20 GHz
- Number of Bands
- Single-Band
- Output Band
- Band 1: 950 – 1525 MHz
- LO Frequency
- 5.15 GHz
- LO Stability
- ±5 kHz
- Noise Figure
- 0.29 dB
- Typical Gain
- 62 dB
- Input Interface
- CPR 229G Waveguide Grooved
- Output Connector
- F Type 75 Ohm
