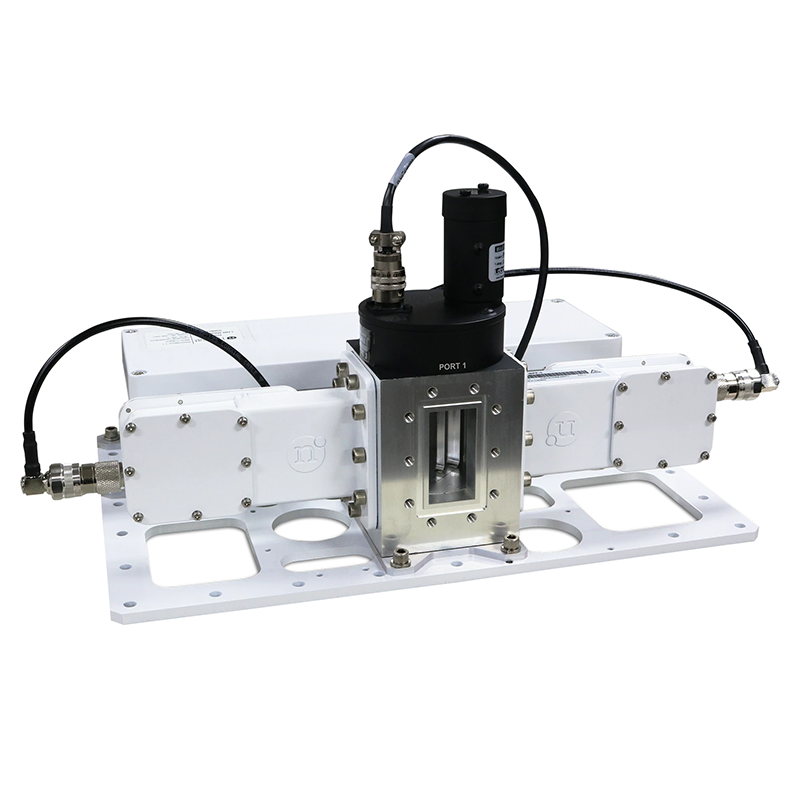

Norsat RSLNBX11NP – 1:1 X-Band LNB Redundant Switch System

Norsat RSLNBX11NP X-Band 1:1 LNB Redundant Switch System

The Norsat RSLNBX11NP is an X-Band 1:1 LNB redundant switch system with N-type output and redundant power supply option. Designed for dependable SATCOM links, it offers fast switchover, rugged WR-112 interface, and IP66-rated outdoor protection.

Band: X-Band
Input Frequency: 950–2150 MHz
Redundancy: 1:1
Switchover Time: ≤420 ms
Options: Redundant power supply connector (mating connector available)
Supported LNBs: N-connector X-Band LNBs up to quad-band, non-simultaneous (sold separately)
Input Connector: WR-112 waveguide
RF Output Connector: N-Type
Insertion Loss: Waveguide to LNB ≤0.5 dB; LNB to cable ≤2.8 dB
Power: 100–240 VAC, 50/60 Hz
Environmental: -40°C to +60°C operating; -50°C to +80°C storage; 8–100% humidity; IP66 rated
Dimensions (L × W × H): 412.75 × 304.80 × 140.97 mm
Weight: 5.4 kg
Logistics: 501.65 × 393.70 × 311.15 mm; 8.16 kg
Made in Canada; ECCN: EAR99; HS Code: 8517690000
