Norsat RSLNBX11NIMP – 1:1 X-Band LNB Redundant Switch System

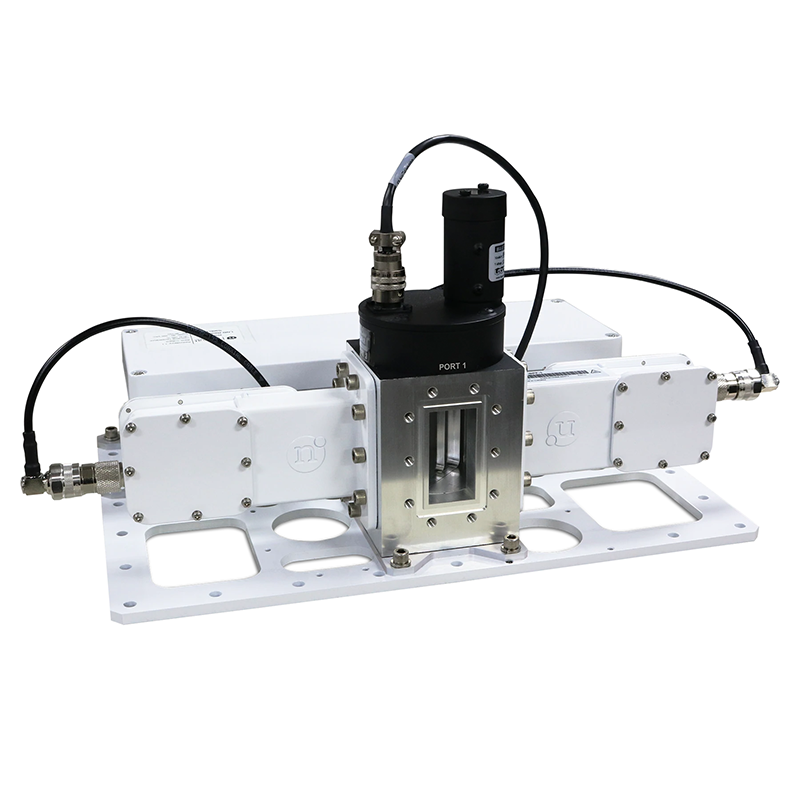

Norsat RSLNBX11NIMP X-Band 1:1 LNB Redundant Switch System

The Norsat RSLNBX11NIMP is an X-Band 1:1 LNB redundant switch system with N-type output, built for mission-critical SATCOM links. It supports N-connector LNBs (up to quad-band, non-simultaneous) and includes options for 10 MHz injection, boom mount, and redundant power connector. Rugged and reliable, it offers fast switchover and IP66 weather protection.

Band: X-Band
Input Frequency: 950–2150 MHz
Redundancy: 1:1
Switchover Time: ≤420 ms
Options: 10 MHz injection via SMA, boom mount, redundant power supply connector
Supported LNBs: N-connector types up to quad-band, non-simultaneous (sold separately)
Input Connector: WR-112
RF Output Connector: N-Connector
Insertion Loss: Waveguide–LNB ≤0.5 dB; LNB–cable ≤2.8 dB
Power: 100–240 VAC, 50–60 Hz
Environmental: -40°C to +60°C operating; -50°C to +80°C storage; 8–100% humidity; IP66 rating
Controller Box: 411.73 × 163.83 × 66.80 mm; 3.4 kg
RF Switch: 209.04 × 65.63 × 132.08 mm; 1.43 kg
Logistics: Packaged 501.65 × 393.70 × 311.15 mm; 8.16 kg
Country of Origin: Canada
ECCN: EAR99; HS Code: 8517690000
