iDirect Universal Ku-Band PLL LNB
⚠️ End of Life Notice
• Auto 22 kHz Switch (P/N: E0001110-0001)
• Manual Switch (P/N: E0001106-0001)
The models are end-of-life (EOL) and have been replaced by the NJR2842A1 and NJR2841A1.
Security policy
Delivery policy
Return policy

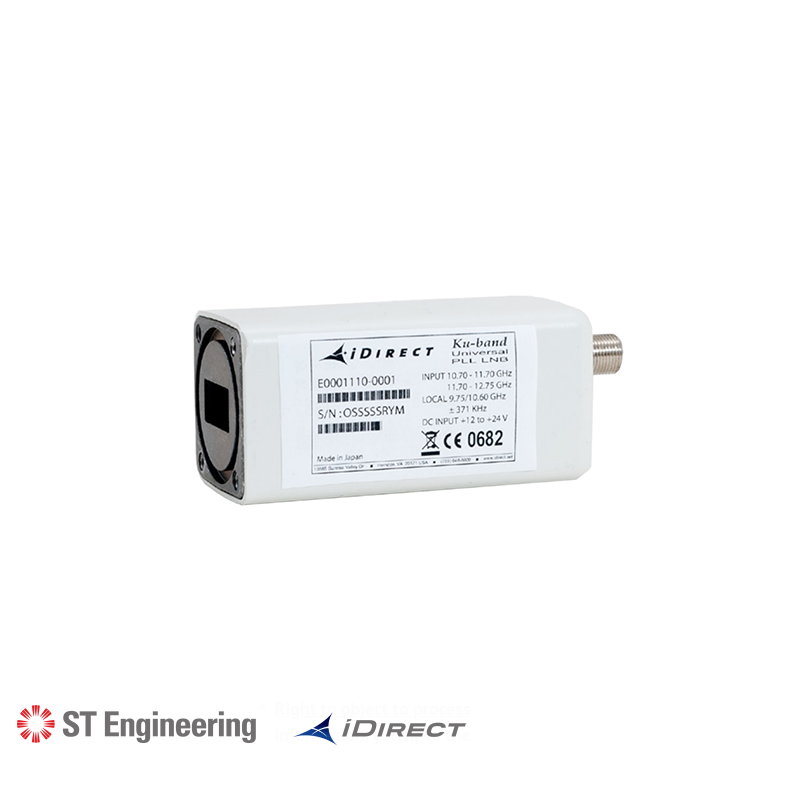

iDirect Universal Ku-Band PLL LNB
The iDirect Universal Ku-Band PLL LNB is a high-stability, low-noise downconverter designed for VSAT receive applications across enterprise and broadband satellite networks.
Covering the full Ku-band spectrum, it supports both automatic 22 kHz tone switching (DiSEqC) and manual band selection, making it a flexible and reliable solution for iDirect Evolution and Velocity platforms.
Key Features
Full Ku-band coverage (10.7 – 12.75 GHz)
Low noise figure (0.8 dB typical) for improved signal quality
PLL technology for high frequency stability
Automatic 22 kHz tone switching (DiSEqC) or manual switch option
Compatible with iDirect Evolution & Velocity systems
Compact and lightweight outdoor design
Wide operating temperature range
Key Specifications
Input Frequency: 10.7 – 12.75 GHz
Output Frequency: 950 – 2150 MHz
Local Oscillator: 9.75 / 10.6 GHz
Gain: Up to 62 dB
Noise Figure: 0.8 dB typical
Power Supply: +12 to +24 VDC (via IF)
Operating Temp: -40°C to +60°C
Interface: WR75 waveguide input, F-type output
Applications
VSAT receive systems
Enterprise satellite networks
Broadband and internet access
Government and defense communications
Mobility and remote deployments
iDirect LNB
- Type
- Single LNBs
- Frequency Band
- Ku-Band
- Frequency Range
- 10.70 – 12.75 GHz
- Number of Bands
- 2-Band
- Sub-Band
- Band 1: 10.7–11.7 GHz
- Sub-Band
- Band 2: 11.7–12.75 GHz
- Noise Figure
- 0.8 dB
- Output Connector
- F Type 75 Ohm
Specific References
⚠️ End of Life Notice
• Auto 22 kHz Switch (P/N: E0001110-0001)
• Manual Switch (P/N: E0001106-0001)
The models are end-of-life (EOL) and have been replaced by the NJR2842A1 and NJR2841A1.
