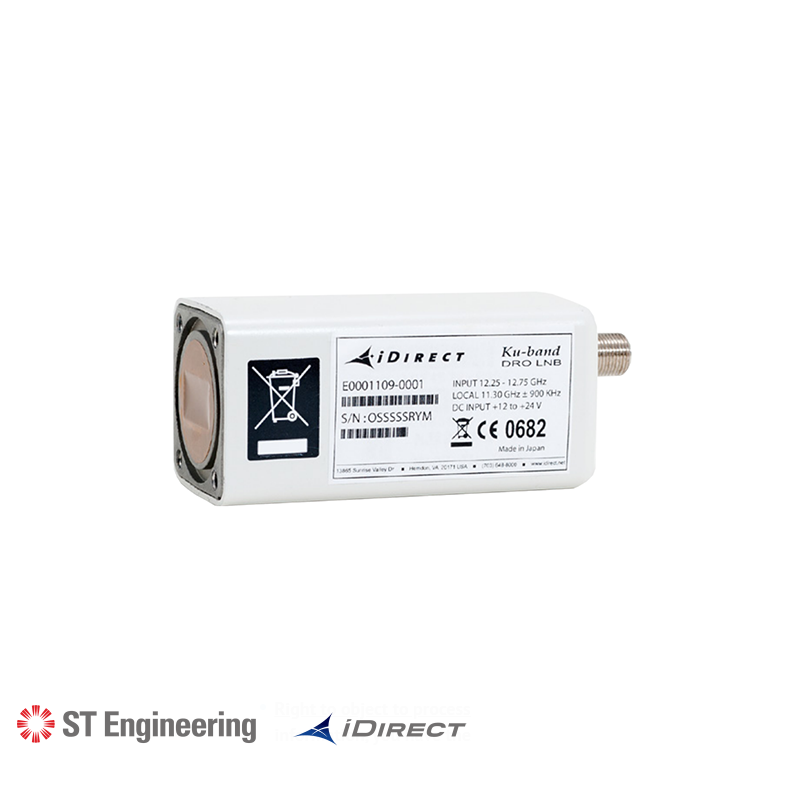

iDirect Ku-Band DRO LNB
Security policy
Delivery policy
Return policy
iDirect’s European Low, Americas, and European High Ku Band DRO LNBs down converters are satisfactory for Evolution networks with outbound carriers larger than 10 Msps.
- Input Frequency
- 12.25 - 12.75 GHz
- Input Frequency
- 10.95 - 11.70 GHz
- Input Frequency
- 11.70 - 12.20 GHz
- LO Frequency
- 10.75 GHz
- LO Frequency
- 11.30 GHz
- LO Frequency
- 10.00 GHz
- Noise Temperature
- 0.7 dB
- Input Interface
- Waveguide, WR75 (with Groove)
- Output Interface
- F-type, female (75 ohm)
- Output Frequency
- 950 - 1450 MHz
- Output Frequency
- 950 - 1700 MHz
- Input VSWR
- 2.5:1
- Output VSWR
- 2.0:1
- Image Rejection
- 40 dBc min.
- Gain
- 63 dB max. across temperature range
- Gain
- 50 dB min.
- Gain
- 55 dB typical
- Power
- 12 - 24V DC supplied through center conductor of IF cable
- Current Drain
- 110 mA typ., 150 mA max.
- Operating Temperature
- -40°C to +60°C
- Storage Temperature
- -40°C to +80°C
- Humidity
- 0 to 100%
- Altitude
- 15,000 feet [4572m]
- Dimensions
- 82.2 (L) x 40 (W) x 40 (H) mm 3.24” (L) x 1.57” (W) x 1.57” (H)
- Weight
- 220 g [0.48 lbs]
- Compliance
- CE, FCC, RoHS
