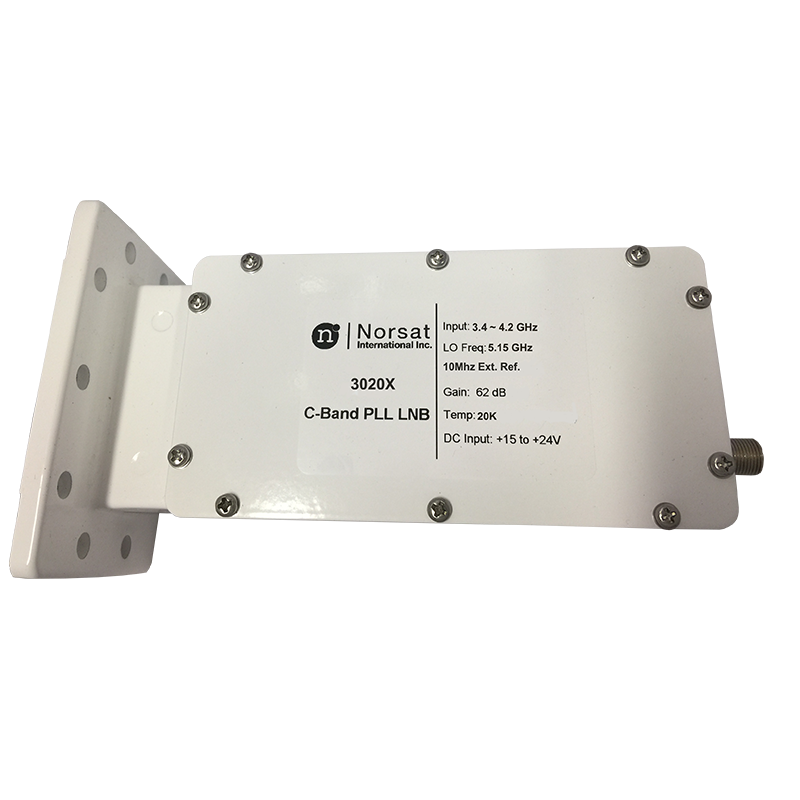

Norsat 3020XF – C-Band Single-Band External Reference PLL LNB, F-Type (75Ω)
$553.00
• Input Band: 3.40–4.20 GHz
• LO Reference: External 10 MHz
• Noise Temperature: 20K
• Output Connector: F-type, 75 Ω
Security policy
Delivery policy
Return policy
Norsat 3020XF Single-Band C-Band External Reference PLL LNB
The Norsat 3020XF is a single-band C-Band PLL LNB with external 10 MHz reference input, offering high frequency stability and a typ. 20K noise temperature for precise satellite downlinking from 3.40 to 4.20 GHz. It features a 75 Ohm F-type output, CPR229G waveguide input, and IP66-rated protection for reliable SATCOM operation in demanding environments.
Frequency Band: 3.40–4.20 GHz
Output Frequency: 950–1750 MHz
Local Oscillator: 5.15 GHz
LO Stability: External Reference (10 MHz, -10 to 0 dBm)
Noise Temperature: typ. 20K, max. 25K
Gain: typ. 65 dB (55–70 dB range), ≤6 dB p-p flatness
Output Connector: F-Type, 75 Ohm
Input: CPR229G waveguide grooved
Power: +12 to +24 VDC, 250 mA max
Environmental: -40°C to +60°C, IP66
Dimensions: 160 x 100 x 72 mm; Weight: 0.5 kg
Made in Canada; ECCN: EAR99
3020XF
- Frequency Band
- C-Band
- Frequency Range
- 3.40 – 4.20 GHz
- Number of Bands
- Single-Band
- Output Band
- Band 1: 950 – 1750 MHz
- LO Frequency
- 5.15 GHz
- LO Stability
- External Reference
- Noise Figure
- 0.29 dB
- Typical Gain
- 65 dB
- Input Interface
- CPR 229G Waveguide Grooved
- Output Connector
- F Type 75 Ohm
Specific References
• Input Band: 3.40–4.20 GHz
• LO Reference: External 10 MHz
• Noise Temperature: 20K
• Output Connector: F-type, 75 Ω
