Norsat 9000XIABN
$1,893.00
Ka-Band Dual-Band Ext. Ref. LNB
9000XA Series
Band 1: 18.2–19.2 GHz
Band 2: 19.2–20.2 GHz
LO Reference: External 10 MHz
Output Connector: N Female, 50 Ohm
Integrated Waveguide Isolator: Yes
Security policy
Delivery policy
Return policy

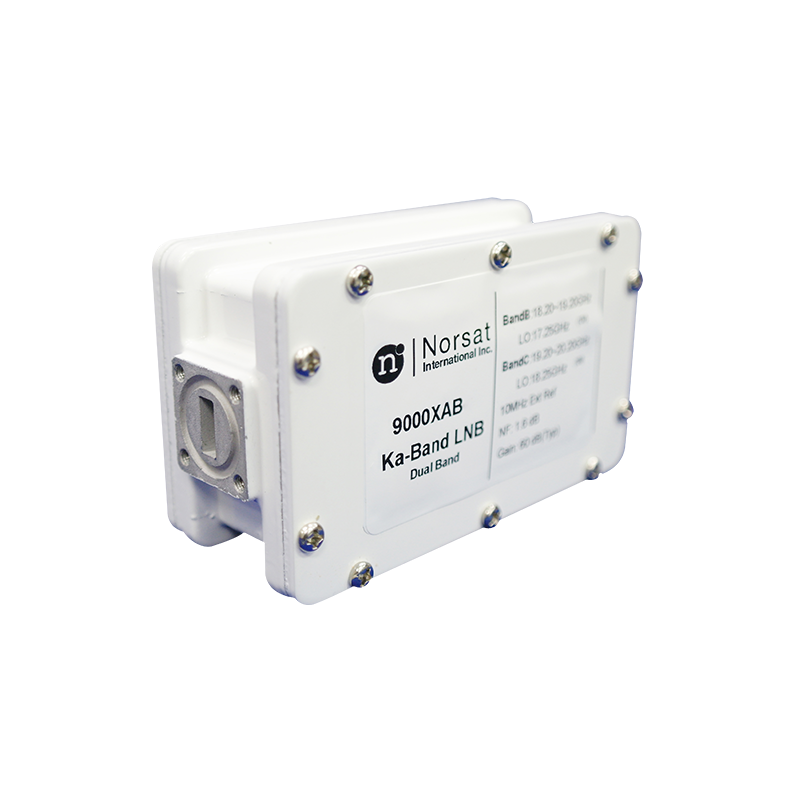

Norsat 9000XIABN Ka-Band Dual-Band PLL EXT LNB
The Norsat 9000XIABN is a Ka-Band LNB supporting dual-band reception from 18.2 to 20.2 GHz. It features an external 10 MHz PLL reference, WR-42 waveguide input, N-type 50 Ohm output, and integrated isolator—designed for reliable Ka-AB band performance in professional SATCOM systems.
Input Frequency Ranges:
Band 1: 18.2 – 19.2 GHz
Band 2: 19.2 – 20.2 GHz
Output Frequency (Both Bands): 950 – 1950 MHz
LO Frequencies: 17.25 / 18.25 GHz
LO Stability: External 10 MHz reference
Noise Figure: typ. 1.6 dB (max. 1.3 dB)
Conversion Gain: typ. 60 dB (min. 55 dB, max. 65 dB)
Control Signals: 13V / No Tone (Band 1), 18V / No Tone (Band 2)
Gain Flatness: ≤ 5 dB p-p
Image Rejection: ≥ 40 dBc
Output P1dB: ≥ +5 dBm
VSWR (Input / Output): max. 2.5:1
Phase Noise: Depends on external reference
RF Input Connector: WR-42
IF Output Connector: N-Type 50 Ohm
Integrated Isolator: Yes
Power Supply: +12 to +24 VDC
9000XIABN
- Frequency Band
- Ka-Band
- Number of Bands
- 2-Band
- Input Band
- 18.2–19.2 GHz
- Input Band
- 19.2–20.2 GHz
- Output Band
- 950-1950 MHz
- LO Frequency
- 17.25 GHz
- LO Frequency
- 18.25 GHz
- LO Stability
- External Reference
- Noise Figure
- 1.6 dB
- Typical Gain
- 60 dB
- Output Connector
- N Type 50 Ohm
