Norsat 9000XIDF-4 – Ka-Band Single-Band External Reference PLL LNB

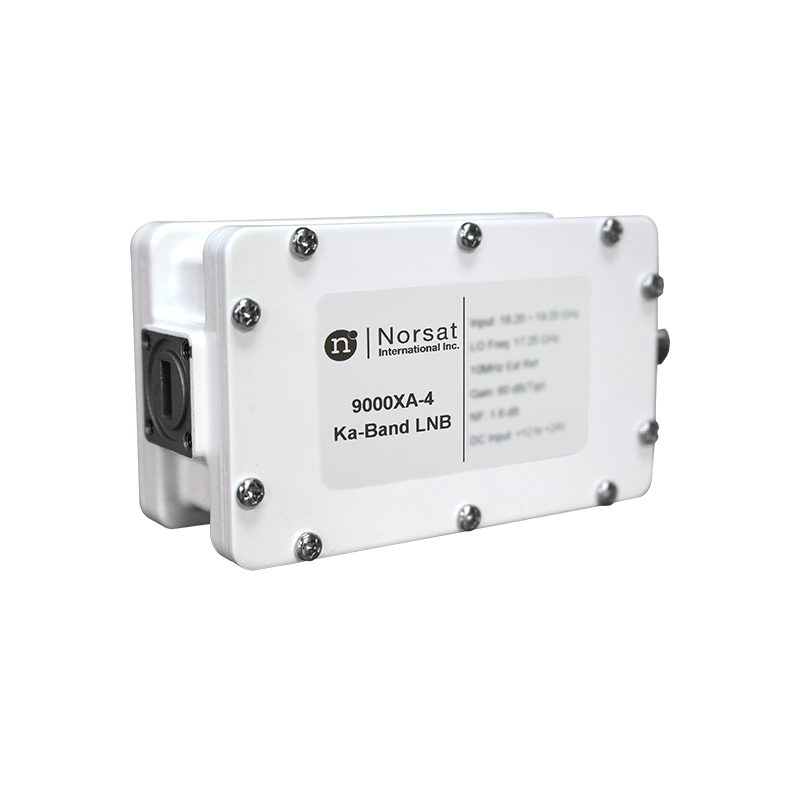

Norsat 9000XIDF-4 Ka-Band Single-Band PLL EXT LNB

The Norsat 9000XIDF-4 is a Ka-Band LNB designed for 21.2 to 22.2 GHz reception. It features an external 10 MHz PLL reference, WR-42 waveguide input, F-type 75 Ohm output, and integrated isolator—optimized for low phase noise and high performance in Ka-D band SATCOM systems.

Input Frequency: 21.2 – 22.2 GHz
Output Frequency: 950 – 1950 MHz
LO Frequency: 20.25 GHz
LO Stability: External 10 MHz reference
Noise Figure: typ. 1.5 dB (max. 1.8 dB)
Conversion Gain: typ. 60 dB (min. 55 dB, max. 65 dB)
Gain Flatness: ≤ 4 dB p-p
Image Rejection: ≥ 40 dBc
Phase Noise: Depends on external reference
Output P1dB: ≥ +5 dBm
VSWR (Input / Output): max. 1.5:1 / 2.5:1
RF Input Connector: WR-42
IF Output Connector: F-Type 75 Ohm
Integrated Isolator: Yes
Power Supply: +12 to +24 VDC
Current Consumption: max. 400 mA
IP Rating: IP67
Operating Temp: –40°C to +60°C
Dimensions: 103.6 × 60 × 45 mm
Weight: 0.42 kg
