Norsat 9000LICN
$679.00
Ka-Band DRO LNB
9000L Series
Input Frequency: 20.2–21.2 GHz
LO Stability: ±2 MHz
Output Connector: N Female, 50 Ohm
Integrated Waveguide Isolator: Yes
Security policy
Delivery policy
Return policy

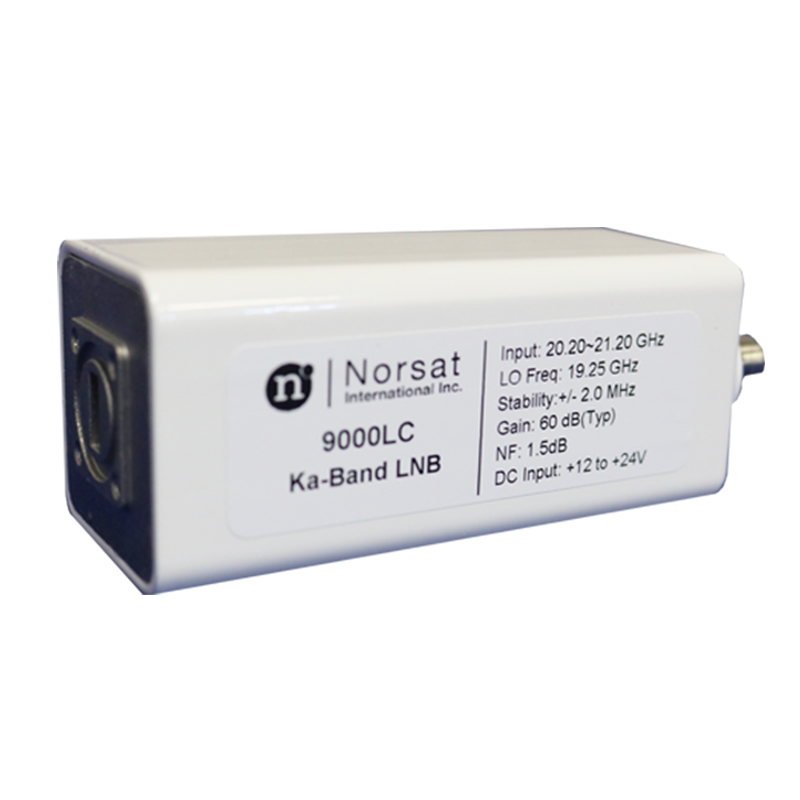

Norsat 9000LICN Ka-Band Single-Band DRO LNB
The Norsat 9000LICN is a Ka-Band single-band LNB designed for 20.2 to 21.2 GHz reception. Featuring a ±2 MHz DRO local oscillator, WR-42 input, N-type 50 Ohm output, and integrated waveguide isolator, it provides robust performance for Ka-C band SATCOM systems.
Input Frequency: 20.2 – 21.2 GHz
Output Frequency: 950 – 1950 MHz
LO Frequency: 19.25 GHz
LO Stability: ±2 MHz (DRO)
Noise Figure: typ. 1.5 dB (max. 1.2 dB)
Conversion Gain: typ. 60 dB (min. 55 dB, max. 65 dB)
Gain Flatness: ≤ 5 dB p-p
Phase Noise @ 100 kHz: max. –95 dBc/Hz
Output P1dB: ≥ +3 dBm
VSWR (Input / Output): max. 1.5:1 / 2.5:1
RF Input Connector: WR-42
IF Output Connector: N-Type 50 Ohm
Integrated Isolator: Yes
Power Supply: +12 to +24 VDC
Operating Temp: –30°C to +60°C
Dimensions: 111 × 42 × 42 mm
Weight: 0.3 kg
9000LICN
- Frequency Band
- Ka-Band
- Number of Bands
- 1-Band
- Input Band
- 20.2–21.2 GHz
- Output Band
- 950-1950 MHz
- LO Frequency
- 19.25 GHz
- LO Stability
- ±2 MHz
- Noise Figure
- 1.5 dB
- Typical Gain
- 60 dB
- Output Connector
- N Type 50 Ohm
