Norsat 9000SHTBS – Ka-Band Simultaneous Triple-Band PLL LNB
$6,253.59
Covers 18.2–21.2 GHz input range
Supports 3 sub-bands simultaneously:
• Band 1: 18.2–19.2 GHz
• Band 2: 19.2–20.2 GHz
• Band 3: 20.2–21.2 GHz
• LO Stability: ±10 kHz
• Output Connector: SMA-type, 50 Ω
• Integrated Waveguide Isolator: No
Security policy
Delivery policy
Return policy

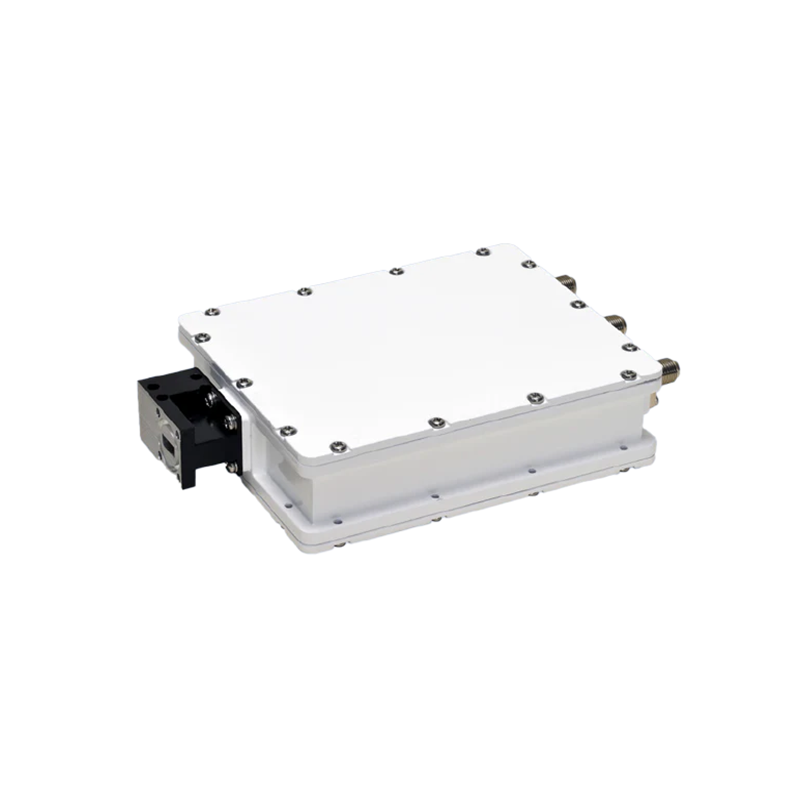

Norsat 9000SHTBS Ka-Band Simultaneous Triple-Band PLL LNB
The Norsat 9000SHTBS supports simultaneous triple-band reception from 18.2 to 21.2 GHz in the Ka-Band. Designed with internal ±10 kHz PLL reference, WR-42 waveguide input, and SMA output, it offers high performance in a compact IP67-rated housing without an isolator.
Input Frequency Ranges:
Band 1: 18.2–19.2 GHz
Band 2: 19.2–20.2 GHz
Band 3: 20.2–21.2 GHz
Output Frequency (All Bands): 950 – 1950 MHz
LO Frequencies: 17.25 / 18.25 / 19.25 GHz
LO Stability: ±10 kHz (internal reference)
Noise Figure: typ. 1.9 dB
Conversion Gain: typ. 60 dB (min. 55 dB, max. 65 dB)
RF Input Connector: WR-42
IF Output Connector: SMA 50 Ohm
Integrated Isolator: No
Power Supply: +12 to +24 VDC (per band)
9000SHTBS
- Frequency Band
- Ka-Band
- Frequency Range
- 18.20 – 21.20 GHz
- Number of Bands
- 3-Band
- Sub-Band
- Band 1: 18.20 – 19.20 GHz
- Sub-Band
- Band 2: 19.20 – 20.20 GHz
- Sub-Band
- Band 3: 20.20 – 21.20 GHz
- Output Band
- Band 1: 950 – 1950 MHz
- Output Band
- Band 2: 950 – 1950 MHz
- Output Band
- Band 3: 950 – 1950 MHz
- LO Frequency
- Multiple LO
- LO Stability
- ±10 kHz
- Noise Figure
- 1.9 dB
- Typical Gain
- 60 dB
- Input Interface
- WR-42 Waveguide Grooved
- Output Connector
- SMA Type 50 Ohm
Specific References
Covers 18.2–21.2 GHz input range
Supports 3 sub-bands simultaneously:
• Band 1: 18.2–19.2 GHz
• Band 2: 19.2–20.2 GHz
• Band 3: 20.2–21.2 GHz
• LO Stability: ±10 kHz
• Output Connector: SMA-type, 50 Ω
• Integrated Waveguide Isolator: No
