Norsat 9000SHTBIF – Ka-Band Simultaneous Triple-Band PLL LNB
$6,661.44
Covers 18.2–21.2 GHz input range
Supports 3 sub-bands simultaneously:
• Band 1: 18.2–19.2 GHz
• Band 2: 19.2–20.2 GHz
• Band 3: 20.2–21.2 GHz
• LO Stability: ±10 kHz
• Output Connector: F-type, 75 Ω
• Integrated Waveguide Isolator: Yes
Security policy
Delivery policy
Return policy

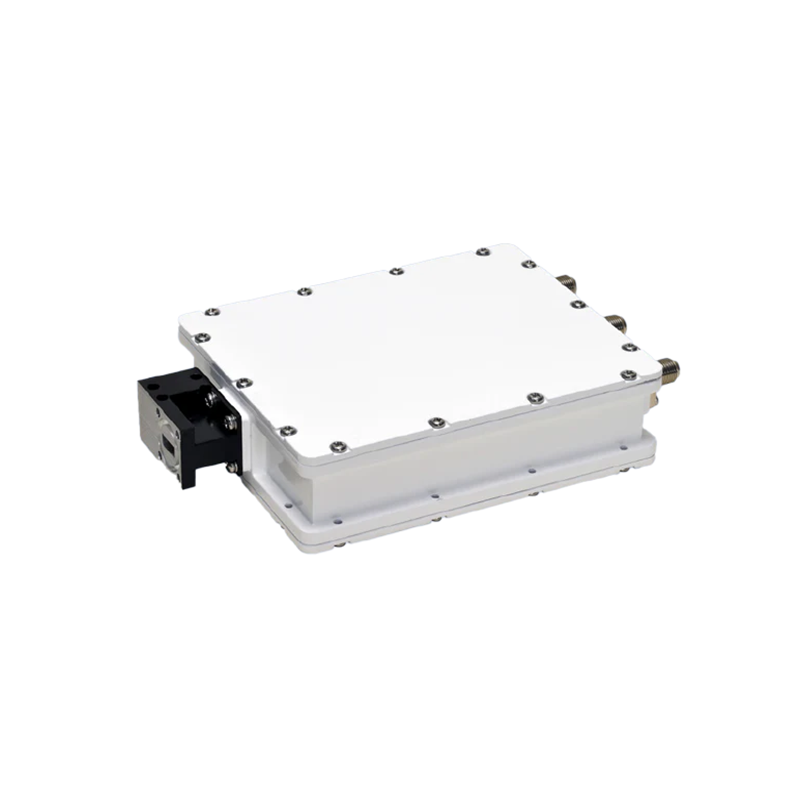

Norsat 9000SHTBIF Ka-Band Simultaneous Triple-Band PLL LNB
The Norsat 9000SHTBIF supports simultaneous triple-band Ka-Band reception across 18.2 to 21.2 GHz. Featuring internal ±10 kHz PLL reference, WR-42 input, F output, and an integrated isolator, it is built for high-performance SATCOM deployments requiring low noise and stable gain.
Input Frequency Ranges:
Band 1: 18.2–19.2 GHz
Band 2: 19.2–20.2 GHz
Band 3: 20.2–21.2 GHz
Output Frequency (All Bands): 950 – 1950 MHz
LO Frequencies: 17.25 / 18.25 / 19.25 GHz
LO Stability: ±10 kHz (internal reference)
Noise Figure: typ. 1.8 dB
Conversion Gain: typ. 60 dB (min. 55 dB, max. 65 dB)
RF Input Connector: WR-42
IF Output Connector: F 75 Ohm
Integrated Isolator: Yes
Power Supply: +12 to +24 VDC (per band)
9000SHTBIF
- Frequency Band
- Ka-Band
- Frequency Range
- 18.20 – 21.20 GHz
- Number of Bands
- 3-Band
- Sub-Band
- Band 1: 18.20 – 19.20 GHz
- Sub-Band
- Band 2: 19.20 – 20.20 GHz
- Sub-Band
- Band 3: 20.20 – 21.20 GHz
- Output Band
- Band 1: 950 – 1950 MHz
- Output Band
- Band 2: 950 – 1950 MHz
- Output Band
- Band 3: 950 – 1950 MHz
- LO Frequency
- Multiple LO
- LO Stability
- ±10 kHz
- Noise Figure
- 1.8 dB
- Typical Gain
- 60 dB
- Input Interface
- WR-42 Waveguide Grooved
- Output Connector
- F Type 75 Ohm
Specific References
Covers 18.2–21.2 GHz input range
Supports 3 sub-bands simultaneously:
• Band 1: 18.2–19.2 GHz
• Band 2: 19.2–20.2 GHz
• Band 3: 20.2–21.2 GHz
• LO Stability: ±10 kHz
• Output Connector: F-type, 75 Ω
• Integrated Waveguide Isolator: Yes
