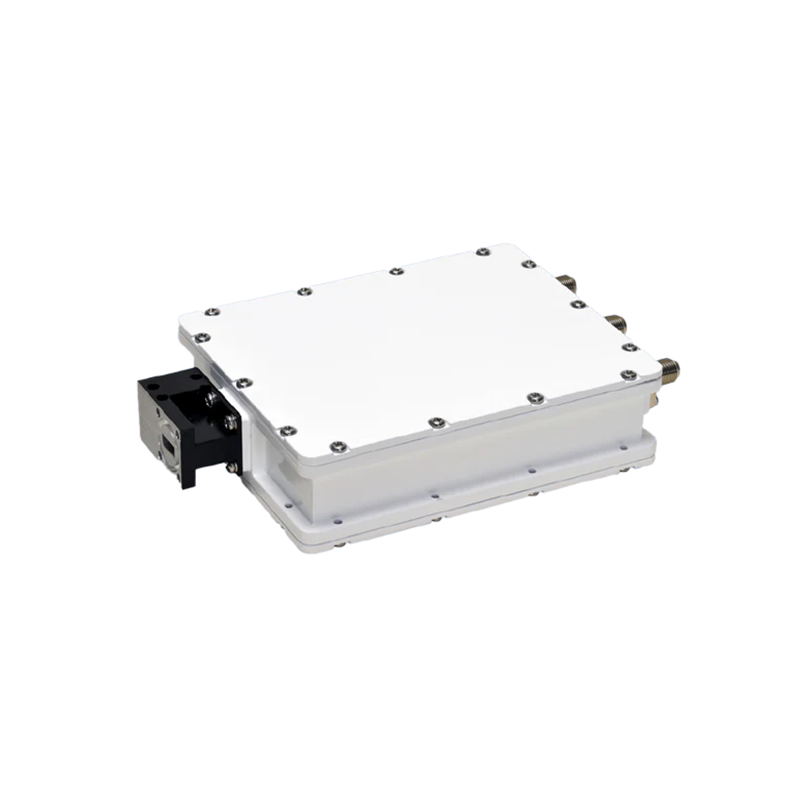

Norsat 9000SXTCF – Ka-Band Simultaneous Triple-Band External Reference PLL LNB
$6,307.97
Covers 19.2–22.2 GHz input range
Supports 3 sub-bands simultaneously:
• Band 1: 19.2–20.2 GHz
• Band 2: 20.2–21.2 GHz
• Band 3: 21.2–22.2 GHz
• LO Reference: External 10 MHz
• Output Connector: F-type, 75 Ω
• Integrated Waveguide Isolator: No
Security policy
Delivery policy
Return policy
Norsat 9000SXTCF Ka-Band Simultaneous Triple-Band PLL EXT LNB
The Norsat 9000SXTCF delivers simultaneous triple-band Ka-Band reception from 19.2 to 22.2 GHz. Designed with external 10 MHz PLL reference, WR-42 input, and F output, it offers high gain and low noise without an isolator—ideal for flexible SATCOM deployments.
Input Frequency Ranges:
Band 1: 19.2–20.2 GHz
Band 2: 20.2–21.2 GHz
Band 3: 21.2–22.2 GHz
Output Frequency (All Bands): 950 – 1950 MHz
LO Frequencies: 18.25 / 19.25 / 20.25 GHz
LO Stability: External 10 MHz reference
Noise Figure: typ. 1.9 dB
Conversion Gain: typ. 60 dB (min. 55 dB, max. 65 dB)
RF Input Connector: WR-42
IF Output Connector: F 75 Ohm
Integrated Isolator: No
Power Supply: +12 to +24 VDC (per band)
9000SXTCF
- Frequency Band
- Ka-Band
- Frequency Range
- 19.20 – 22.20 GHz
- Number of Bands
- 3-Band
- Sub-Band
- Band 1: 19.20 – 20.20 GHz
- Sub-Band
- Band 2: 20.20 – 21.20 GHz
- Sub-Band
- Band 3: 21.20 – 22.20 GHz
- Output Band
- Band 1: 950 – 1950 MHz
- Output Band
- Band 2: 950 – 1950 MHz
- Output Band
- Band 3: 950 – 1950 MHz
- LO Frequency
- Multiple LO
- LO Stability
- External Reference
- Noise Figure
- 1.9 dB
- Typical Gain
- 60 dB
- Input Interface
- WR-42 Waveguide Grooved
- Output Connector
- F Type 75 Ohm
Specific References
Covers 19.2–22.2 GHz input range
Supports 3 sub-bands simultaneously:
• Band 1: 19.2–20.2 GHz
• Band 2: 20.2–21.2 GHz
• Band 3: 21.2–22.2 GHz
• LO Reference: External 10 MHz
• Output Connector: F-type, 75 Ω
• Integrated Waveguide Isolator: No
