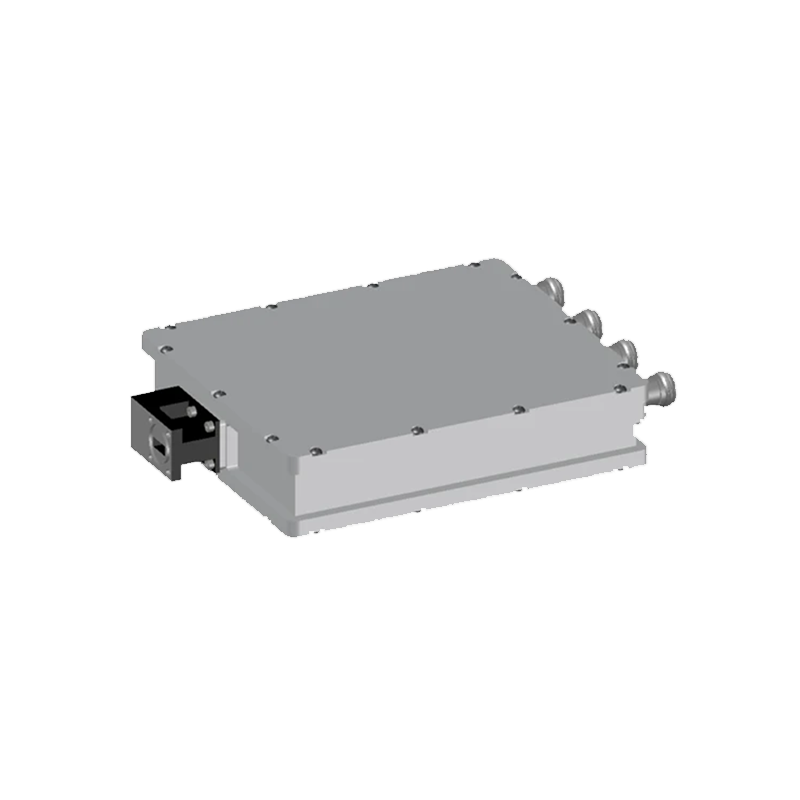

Norsat 9000SHUAIN – Ka-Band Simultaneous Quad-Band PLL LNB
$7,749.02
Covers 17.2–21.2 GHz input range
Supports 4 sub-bands simultaneously:
• Band 1: 17.2–18.2 GHz
• Band 2: 18.2–19.2 GHz
• Band 3: 19.2–20.2 GHz
• Band 4: 20.2–21.2 GHz
• LO Stability: ±10 kHz
• Output Connector: N-type, 50 Ω
• Integrated Waveguide Isolator: Yes
Security policy
Delivery policy
Return policy
Norsat 9000SHUAIN Ka-Band Simultaneous Quad-Band PLL LNB
The Norsat 9000SHUAIN is a quad-band Ka-Band LNB with internal PLL and ±10 kHz stability. Supporting 17.2 to 21.2 GHz Ka-A band input, it includes a WR-42 waveguide interface, integrated isolator, and N output for reliable SATCOM performance in harsh environments.
Input Frequency Ranges:
Band 1: 17.2–18.2 GHz
Band 2: 18.2–19.2 GHz
Band 3: 19.2–20.2 GHz
Band 4: 20.2–21.2 GHz
Output Frequency (All Bands): 950 – 1950 MHz
LO Frequencies: 16.25 / 17.25 / 18.25 / 19.25 GHz
LO Stability: ±10 kHz (internal reference)
Noise Figure: typ. 2.0 dB
Conversion Gain: typ. 60 dB (min. 55 dB, max. 65 dB)
RF Input Connector: WR-42
IF Output Connector: N 50 Ohm
Integrated Isolator: Yes
Power Supply: +12 to +24 VDC (per band)
9000SHUAIN
- Frequency Band
- Ka-Band
- Frequency Range
- 17.20 – 21.20 GHz
- Number of Bands
- 4-Band
- Sub-Band
- Band 4: 20.20 – 21.20 GHz
- Sub-Band
- Band 3: 19.20 – 20.20 GHz
- Sub-Band
- Band 2: 18.20 – 19.20 GHz
- Sub-Band
- Band 1: 17.20 – 18.20 GHz
- Output Band
- Band 1: 950 – 1950 MHz
- Output Band
- Band 2: 950 – 1950 MHz
- Output Band
- Band 3: 950 – 1950 MHz
- Output Band
- Band 4: 950 – 1950 MHz
- LO Frequency
- Multiple LO
- LO Stability
- ±10 kHz
- Noise Figure
- 2.0 dB
- Typical Gain
- 60 dB
- Input Interface
- WR-42 Waveguide Grooved
- Output Connector
- N Type 50 Ohm
Specific References
Covers 17.2–21.2 GHz input range
Supports 4 sub-bands simultaneously:
• Band 1: 17.2–18.2 GHz
• Band 2: 18.2–19.2 GHz
• Band 3: 19.2–20.2 GHz
• Band 4: 20.2–21.2 GHz
• LO Stability: ±10 kHz
• Output Connector: N-type, 50 Ω
• Integrated Waveguide Isolator: Yes
