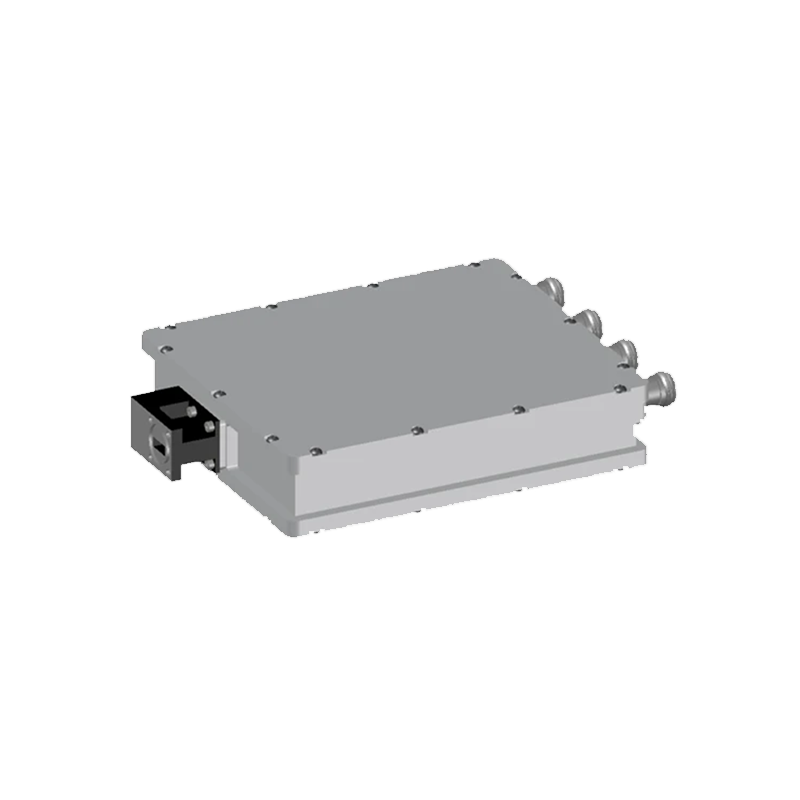

Norsat 9000SXUAIN – Ka-Band Simultaneous Quad-Band PLL External Reference LNB
$7,884.97
Covers 17.2–21.2 GHz input range
Supports 4 sub-bands simultaneously:
• Band 1: 17.2–18.2 GHz
• Band 2: 18.2–19.2 GHz
• Band 3: 19.2–20.2 GHz
• Band 4: 20.2–21.2 GHz
• LO Reference: External 10 MHz
• Output Connector: N-type, 50 Ω
• Integrated Waveguide Isolator: Yes
Security policy
Delivery policy
Return policy
Norsat 9000SXUAIN Ka-Band Simultaneous Quad-Band PLL EXT LNB
The Norsat 9000SXUAIN delivers simultaneous quad-band Ka-A coverage from 17.2 to 21.2 GHz with an external 10 MHz PLL reference and N-type IF output. Built for robust SATCOM applications, it features WR-42 input, integrated isolator, and IP67-rated housing.Input Frequency Ranges:
Band 1: 17.2–18.2 GHz
Band 2: 18.2–19.2 GHz
Band 3: 19.2–20.2 GHz
Band 4: 20.2–21.2 GHz
Output Frequency (All Bands): 950 – 1950 MHz
LO Frequencies: 16.25 / 17.25 / 18.25 / 19.25 GHz
LO Stability: External 10 MHz reference
Noise Figure: typ. 2.0 dB
Conversion Gain: typ. 60 dB (min. 55 dB, max. 65 dB)
RF Input Connector: WR-42
IF Output Connector: N-Type 50 Ohm
Integrated Isolator: Yes
Power Supply: +12 to +24 VDC (per band)
9000SXUAIN
- Frequency Band
- Ka-Band
- Frequency Range
- 17.20 – 21.20 GHz
- Number of Bands
- 4-Band
- Sub-Band
- Band 4: 20.20 – 21.20 GHz
- Sub-Band
- Band 3: 19.20 – 20.20 GHz
- Sub-Band
- Band 2: 18.20 – 19.20 GHz
- Sub-Band
- Band 1: 17.20 – 18.20 GHz
- Output Band
- Band 1: 950 – 1950 MHz
- Output Band
- Band 2: 950 – 1950 MHz
- Output Band
- Band 3: 950 – 1950 MHz
- Output Band
- Band 4: 950 – 1950 MHz
- LO Frequency
- Multiple LO
- LO Stability
- External Reference
- Noise Figure
- 2.0 dB
- Typical Gain
- 60 dB
- Input Interface
- WR-42 Waveguide Grooved
- Output Connector
- N Type 50 Ohm
Specific References
Covers 17.2–21.2 GHz input range
Supports 4 sub-bands simultaneously:
• Band 1: 17.2–18.2 GHz
• Band 2: 18.2–19.2 GHz
• Band 3: 19.2–20.2 GHz
• Band 4: 20.2–21.2 GHz
• LO Reference: External 10 MHz
• Output Connector: N-type, 50 Ω
• Integrated Waveguide Isolator: Yes
