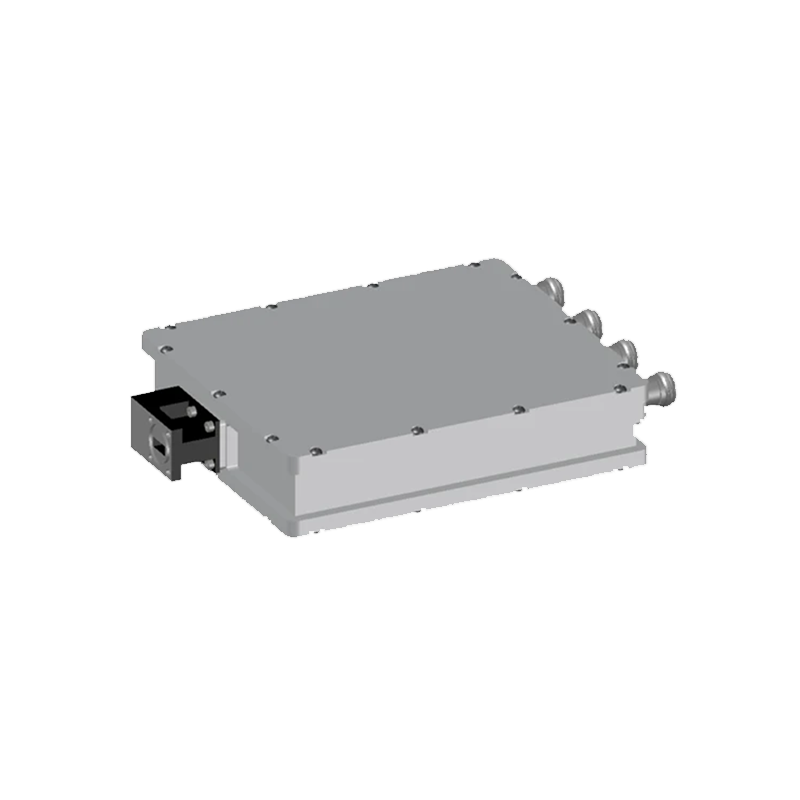

Norsat 9000SXUBIS – Ka-Band Simultaneous Quad-Band PLL External Reference LNB
$7,884.97
Covers 18.2–22.2 GHz input range.
Supports 4 sub-bands simultaneously:
• Band 1: 18.2–19.2 GHz
• Band 2: 19.2–20.2 GHz
• Band 3: 20.2–21.2 GHz
• Band 4: 21.2–22.2 GHz
• LO Reference: External 10 MHz
• Output Connector: SMA-type, 50 Ω
• Integrated Waveguide Isolator: Yes
Security policy
Delivery policy
Return policy
Norsat 9000SXUBIS Ka-Band Simultaneous Quad-Band PLL EXT LNB
The Norsat 9000SXUBIS is a premium Ka-Band LNB supporting simultaneous reception across four distinct sub-bands from 18.2 to 22.2 GHz. With external 10 MHz PLL reference, high gain, and integrated waveguide isolator, it's ideal for high-capacity satellite links requiring multi-band coverage in a compact, rugged IP67-rated design.
Input Frequency Ranges:
Band 1: 18.2 – 19.2 GHz
Band 2: 19.2 – 20.2 GHz
Band 3: 20.2 – 21.2 GHz
Band 4: 21.2 – 22.2 GHz
Output Frequency (All Bands): 950 – 1950 MHz
LO Frequencies: 17.25 / 18.25 / 19.25 / 20.25 GHz
LO Stability: External 10 MHz reference
Noise Figure: typ. 2.0 dB
Conversion Gain: typ. 60 dB (min. 55 dB, max. 65 dB)
RF Input Connector: WR-42
IF Output Connector: SMA 50 Ohm
Integrated Isolator: Yes
Power Supply: +12 to +24 VDC (per band)
9000SXUBIS
- Frequency Band
- Ka-Band
- Frequency Range
- 18.20 – 22.20 GHz
- Number of Bands
- 4-Band
- Sub-Band
- Band 4: 21.20 – 22.20 GHz
- Sub-Band
- Band 3: 20.20 – 21.20 GHz
- Sub-Band
- Band 2: 19.20 – 20.20 GHz
- Sub-Band
- Band 1: 18.20 – 19.20 GHz
- Output Band
- Band 1: 950 – 1950 MHz
- Output Band
- Band 2: 950 – 1950 MHz
- Output Band
- Band 3: 950 – 1950 MHz
- Output Band
- Band 4: 950 – 1950 MHz
- LO Frequency
- Multiple LO
- LO Stability
- External Reference
- Noise Figure
- 2.0 dB
- Typical Gain
- 60 dB
- Input Interface
- WR-42 Waveguide Grooved
- Output Connector
- SMA Type 50 Ohm
Specific References
Covers 18.2–22.2 GHz input range.
Supports 4 sub-bands simultaneously:
• Band 1: 18.2–19.2 GHz
• Band 2: 19.2–20.2 GHz
• Band 3: 20.2–21.2 GHz
• Band 4: 21.2–22.2 GHz
• LO Reference: External 10 MHz
• Output Connector: SMA-type, 50 Ω
• Integrated Waveguide Isolator: Yes
