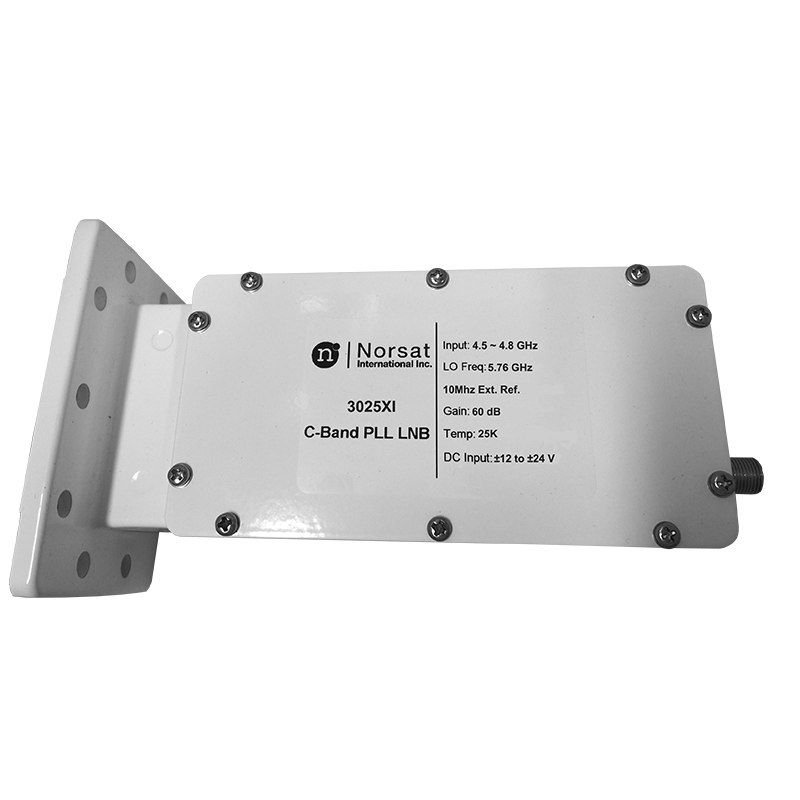

Norsat 3025XIF – C-Band Single-Band External Reference PLL LNB, F-Type (75Ω)
$495.00
• Input Band: 4.50–4.80 GHz
• LO Reference: External 10 MHz
• Noise Temperature: 25K
• Output Connector: F-type, 75 Ω
Security policy
Delivery policy
Return policy
Norsat 3025XIF Single-Band C-Band External Reference PLL LNB
The Norsat 3025XIF is a single-band C-Band PLL LNB with an external 10 MHz reference input, delivering high frequency stability and a typ. 25K noise temperature for reliable downlinking from 4.50 to 4.80 GHz. It features a 75 Ohm F-type output, CPR229G waveguide input, and IP67-rated housing for dependable SATCOM operation.
Frequency Band: 4.50–4.80 GHz
Output Frequency: 960–1260 MHz
Local Oscillator: 5.0 GHz
LO Stability: External Reference (10 MHz, -10 to 0 dBm)
Noise Temperature: typ. 25K, max. 30K
Gain: typ. 65 dB (55–70 dB range), ≤4 dB p-p flatness
Output Connector: F-Type, 75 Ohm
Input: CPR229G waveguide grooved
Power: +15 to +24 VDC
Environmental: -40°C to +60°C, IP67
Dimensions: 180 x 100 x 70 mm; Weight: 0.575 kg
Made in Republic of Korea; ECCN: EAR99
3025XIF
- Frequency Band
- C-Band
- Frequency Range
- 4.50 – 4.80 GHz
- Number of Bands
- Single-Band
- Output Band
- Band 1: 960 – 1260 MHz
- LO Frequency
- 5.0 GHz
- LO Stability
- External Reference
- Noise Figure
- 0.37 dB
- Typical Gain
- 65 dB
- Input Interface
- CPR 229G Waveguide Grooved
- Output Connector
- F Type 75 Ohm
Specific References
• Input Band: 4.50–4.80 GHz
• LO Reference: External 10 MHz
• Noise Temperature: 25K
• Output Connector: F-type, 75 Ω
