Norsat 3525IF – C-Band Single-Band PLL LNB, F-Type (75Ω)
$304.00
• Input Band: 4.50–4.80 GHz
• LO Stability: ±25 kHz
• Noise Temperature: 25K
• Output Connector: F-type, 75 Ω
Security policy
Delivery policy
Return policy

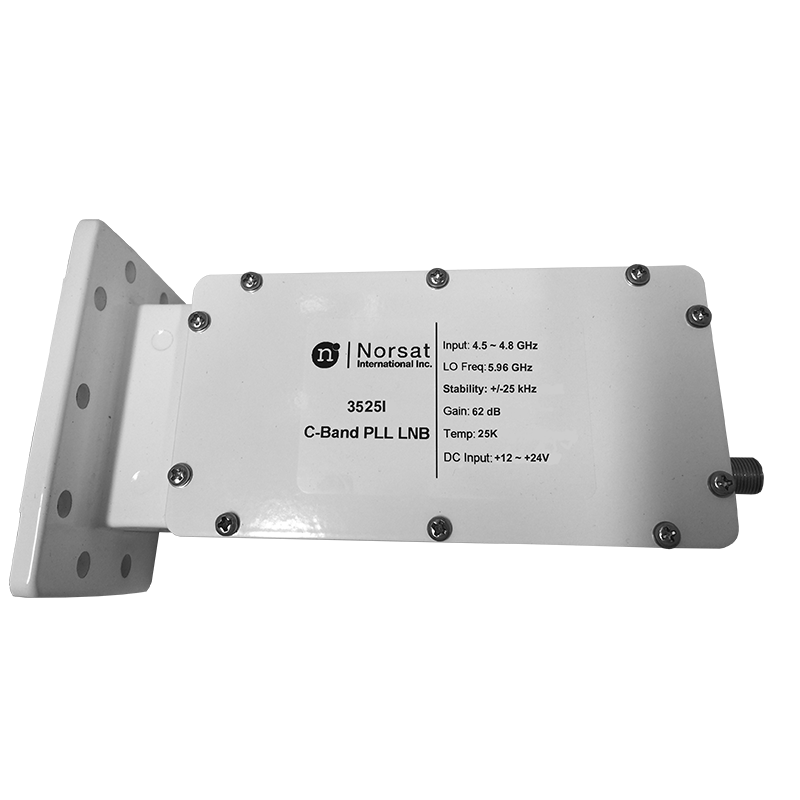

Norsat 3525IF Single-Band C-Band PLL LNB
The Norsat 3525IF is a single-band C-Band PLL LNB with ±25 kHz LO stability and a typ. 25K noise temperature, designed for precision downlinking from 4.50 to 4.80 GHz. Featuring a 75 Ohm F-type output and CPR229G waveguide input, it offers IP67-rated protection for dependable SATCOM operation in challenging conditions.
Frequency Band: 4.50–4.80 GHz
Output Frequency: 1150–1450 MHz
Local Oscillator: 5.95 GHz
LO Stability: ±25 kHz
Noise Temperature: typ. 25K, max. 30K
Gain: typ. 65 dB (55–70 dB range), ≤4 dB p-p flatness
Output Connector: F-Type, 75 Ohm
Input: CPR229G waveguide grooved
Power: +12 to +24 VDC
Environmental: -40°C to +60°C, IP67
Dimensions: 180 x 100 x 70 mm; Weight: 0.575 kg
Made in Republic of Korea; ECCN: EAR99
3525IF
- Frequency Band
- C-Band
- Frequency Range
- 4.50 – 4.80 GHz
- Number of Bands
- Single-Band
- Output Band
- Band 1: 1150 – 1450 MHz
- LO Frequency
- 5.95 GHz
- LO Stability
- ±25 kHz
- Noise Figure
- 0.37 dB
- Typical Gain
- 65 dB
- Input Interface
- CPR 229G Waveguide Grooved
- Output Connector
- F Type 75 Ohm
