CPI BRC-1100 1:1 C-Band Redundant LNB System

CPI BRC-1100 1:1 C-Band Redundant LNB System

The CPI BRC-1000 1:1 C-band redundant LNB system minimizes receiver downtime by automatically switching from the primary LNB to a dedicated standby LNB when a failure is detected. Covering 3.40–4.20 GHz with a 950–1750 MHz L-band output, the system includes an outdoor antenna-hub plate assembly, indoor redundancy controller and interconnecting control cable. Compatible Norsat C-band LNBs are selected and ordered separately.

System Configuration: 1:1 redundancy
LNB Configuration: One primary LNB and one standby LNB
Input Frequency Range: 3.40–4.20 GHz
Output Frequency Range: 950–1750 MHz
Local Oscillator Frequency: 5.15 GHz typ.
External Reference: 10 MHz, -5 to +5 dBm
Standard System Noise Contribution: 7 K, excluding LNB
Gain: 59 dB min., 61 dB typ. with standard LNB
Gain Flatness: ±0.5 dB per 27 MHz
Gain Stability: ±0.2 dB max. per day at constant temperature; -0.05 dB/°C
Frequency Stability: ±10 kHz from -40°C to +60°C
Output P1dB: +2 dBm min., +5 dBm typ.
Output OIP3: +12 dBm min., +15 dBm typ.
Input VSWR: 2.20:1 typ. without isolator
Input VSWR with Isolator: 1.25:1 typ., 1.30:1 max.
Input VSWR with Isolator and Tx Filter: 1.30:1 typ., 1.35:1 max.
Output VSWR: 1.50:1 typ., 2.00:1 max.
Maximum Input Power: 0 dBm without damage
RF Input Connector: CPR229G waveguide flange
RF Output Connector: Type F female, 75 ohms, or Type N female, 50 ohms
Automatic Switchover Time: 100 ms max.
LNB Power Output: +14.3 to +15.0 VDC, 700 mA max.
Network Interface: 10/100Base-T Ethernet
Remote M&C: SNMP v1, v2c and v3; RS-232, RS-422, RS-485 and parallel I/O
Controller Power: 100–135 or 180–240 VAC, 47–63 Hz
Plate Operating Temperature: -40°C to +60°C
Compliance: CE certified, RoHS compliant and EAR99

Key Features:

• Dedicated standby LNB protects one primary receiving path

• Automatic transfer to the standby LNB following a detected failure

• 3.40–4.20 GHz C-band input frequency coverage

• 950–1750 MHz L-band output

• Compatible with Norsat C-band PLL or externally referenced LNBs

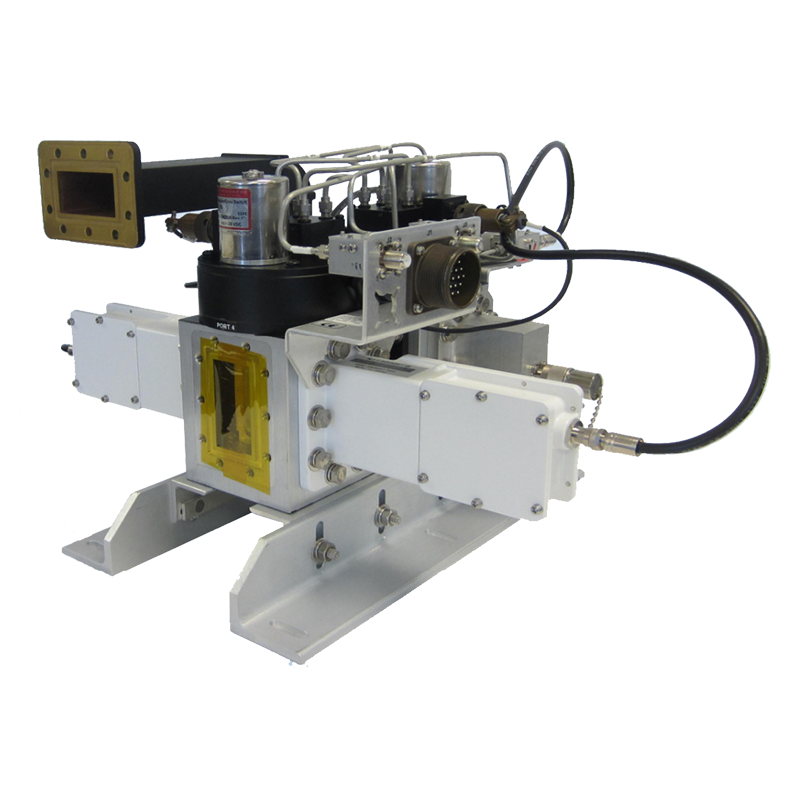

• Outdoor antenna-hub plate assembly

• High-quality waveguide and coaxial RF switches

• Manual or automatic operating modes

• Manual RF-switch override

• LNB current monitoring, external alarm monitoring or both

• User-selectable current tolerance window

• Dual redundant controller power supplies

• Front-panel switch-position and system-status display

• Optional transmit-reject filter

• Optional waveguide input isolator

• Optional -40 dB input crossguide coupler

• Optional offline LNB input and output ports

• Ethernet, serial and parallel remote control

• Audible fault alarm

• Control cables available up to 500 ft.

• Optional remote control panel for operation up to 4,000 ft. away
