Nisshinbo NJS8497EN
C-band PLL LNB (3.625–4.2 GHz, 15K, External Reference)
• Input Band: 3.625–4.2 GHz
• LO Stability: Depends on External Reference
• Noise Temperature: 15K typ.
• Output Connector: N-type, 50 Ω
Security policy
Delivery policy
Return policy

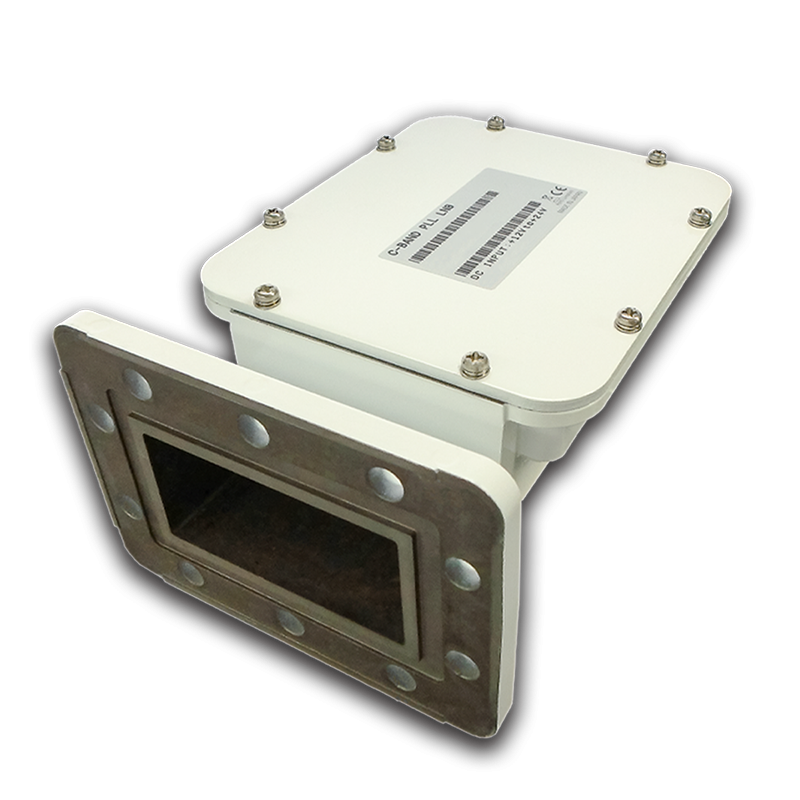

Nisshinbo NJS8497EN C-band PLL LNB
The NJS8497EN is a high-performance C-band PLL LNB covering 3.625–4.2 GHz with a 5.15 GHz local oscillator, 15K noise temperature, and external 10 MHz reference, designed for reliable satellite communication and ground station applications. Suitable for VSAT systems, C-band ground stations, and satellite RF front-end applications.
Key Features
3.625–4.2 GHz C-band operation (Standard C band)
Local oscillator: 5.15 GHz
950–1525 MHz IF output
Low noise temperature: 15K typ.
High conversion gain: 59–67 dB typ.
LO stability: Depends on External Reference
N-type connector, 50Ω
IP67 weatherproof outdoor design
Applications
VSAT satellite communication systems
C-band ground stations
Broadcast and telecom networks
RF front-end systems
NJS8497EN
- Type
- Single LNBs
- Frequency Band
- C-Band
- Frequency Range
- 3.625 – 4.2 GHz
- Number of Bands
- Single-Band
- Output Band
- 950–1525 MHz
- LO Stability
- External Reference
- Noise Figure
- 0.22 dB
- Input Interface
- CPR 229G Waveguide Grooved
- Output Connector
- N Type 50 Ohm
Specific References
C-band PLL LNB (3.625–4.2 GHz, 15K, External Reference)
• Input Band: 3.625–4.2 GHz
• LO Stability: Depends on External Reference
• Noise Temperature: 15K typ.
• Output Connector: N-type, 50 Ω
