Nisshinbo NJS8498SF
C-band PLL LNB (4.5–4.8 GHz, 15K, ±3 ppm Stability)
• Input Band: 4.5–4.8 GHz
• LO Stability: ±3 ppm (±15 kHz)
• Noise Temperature: 15K typ.
• Output Connector: F-type, 75 Ω
Security policy
Delivery policy
Return policy

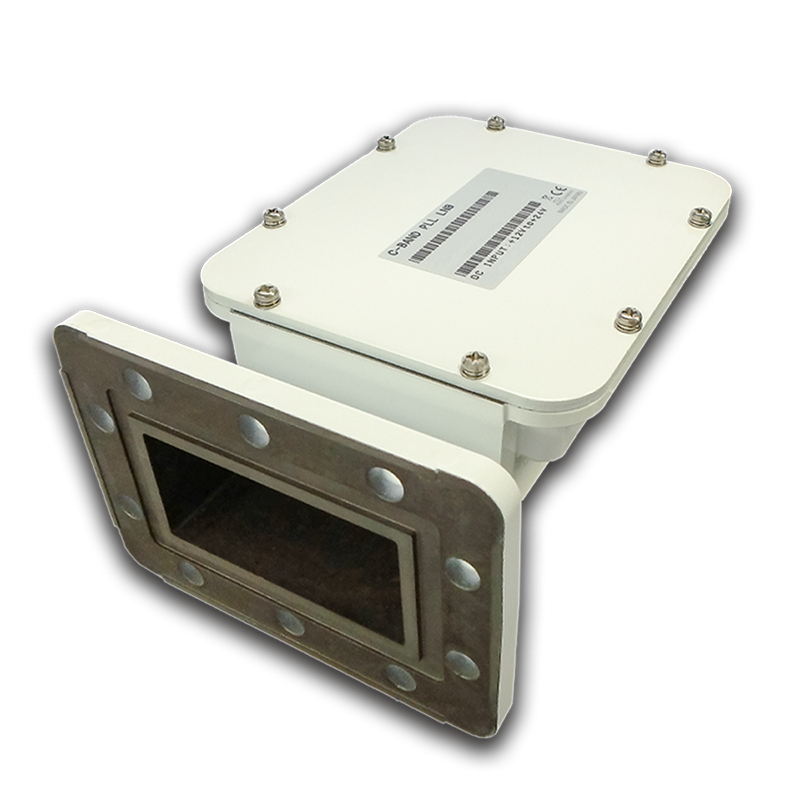

Nisshinbo NJS8498SF C-band PLL LNB
The NJS8498SF is a high-performance C-band PLL LNB covering 4.5–4.8 GHz with a 5.76 GHz local oscillator, 15K noise temperature, and ±3 ppm stability, designed for reliable satellite communication and ground station applications. Suitable for VSAT systems, C-band ground stations, and satellite RF front-end applications.
Key Features
4.5–4.8 GHz C-band operation (INSAT band)
Local oscillator: 5.76 GHz
960–1260 MHz IF output
Low noise temperature: 15K typ.
High conversion gain: 59–67 dB typ.
High stability: ±3 ppm
F-type connector, 75Ω
IP67 weatherproof outdoor design
Applications
VSAT satellite communication systems
C-band ground stations
Broadcast and telecom networks
RF front-end systems
NJS8498SF
- Type
- Single LNBs
- Frequency Band
- C-Band
- Frequency Range
- 4.5 – 4.8 GHz
- Number of Bands
- Single-Band
- Output Band
- 960–1260 MHz
- LO Stability
- ±15 kHz
- Noise Figure
- 0.22 dB
- Input Interface
- CPR 229G Waveguide Grooved
- Output Connector
- F Type 75 Ohm
Specific References
C-band PLL LNB (4.5–4.8 GHz, 15K, ±3 ppm Stability)
• Input Band: 4.5–4.8 GHz
• LO Stability: ±3 ppm (±15 kHz)
• Noise Temperature: 15K typ.
• Output Connector: F-type, 75 Ω
