Nisshinbo NJR2845ASF
Ku-band PLL LNB - Int. Ref.
• Input Band: 10.95–11.7 GHz
• LO Stability: ±3 ppm (±30 kHz)
• Noise Figure: 0.8 dB
• Output Connector: F-type, 75 Ω
Security policy
Delivery policy
Return policy

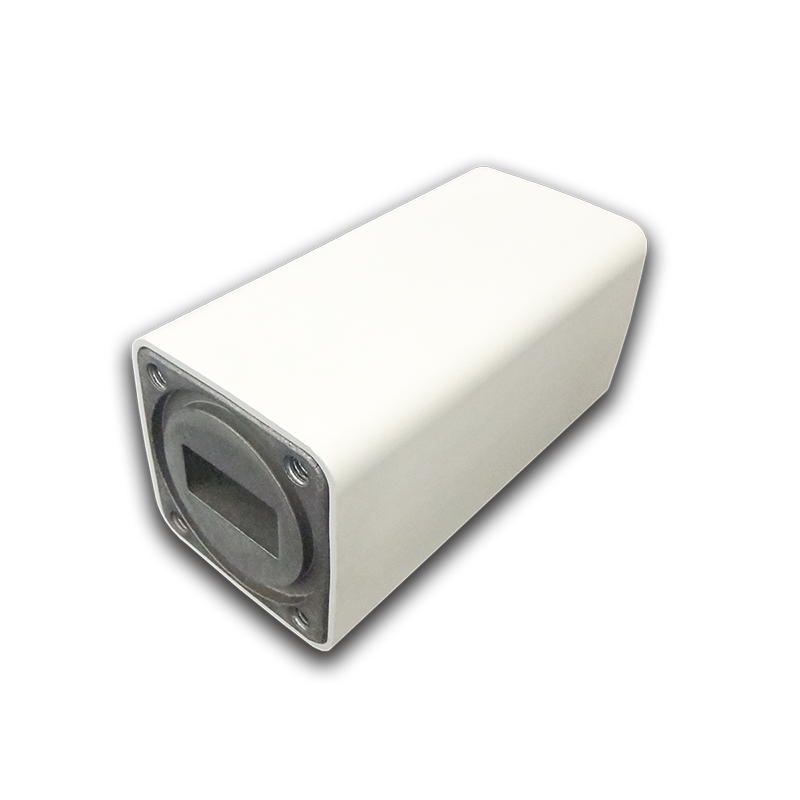

NJR2845ASF Ku-band PLL LNB
The NJR2845ASF is a high-performance Ku-band PLL LNB covering 10.95–11.7 GHz, featuring low noise (0.8 dB), high gain (57 dB), and excellent frequency stability (±3 ppm). It converts RF signals to L-band (950–1700 MHz) for reliable satellite communication in VSAT, broadcast, and ground station applications.
Key Features
• 10.95–11.7 GHz Ku-band operation
• 0.8 dB low noise figure
• 57 dB high conversion gain
• ±3 ppm frequency stability
• 950–1700 MHz IF output
• IP67 weatherproof housing
NJR2845ASF
- Type
- Single LNBs
- Frequency Band
- Ku-Band
- Frequency Range
- 10.95 – 11.70 GHz
- Output Band
- 950–1700 MHz
- LO Frequency
- 10.00 GHz
- LO Stability
- ±30 kHz
- Noise Figure
- 0.8 dB
- Typical Gain
- 57 dB
- Input Interface
- WR-75 waveguide grooved
- Output Connector
- F Type 75 Ohm
Specific References
Ku-band PLL LNB - Int. Ref.
• Input Band: 10.95–11.7 GHz
• LO Stability: ±3 ppm (±30 kHz)
• Noise Figure: 0.8 dB
• Output Connector: F-type, 75 Ω
