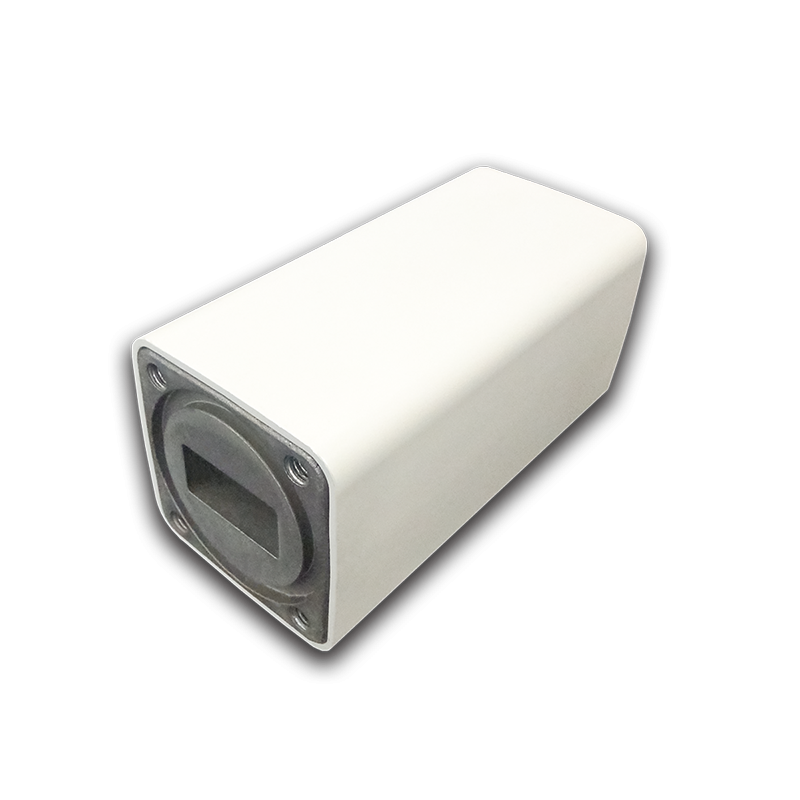

Nisshinbo NJR2845DVF
Ku-band PLL LNB - Int. Ref.
• Input Band: 11.2–11.7 GHz
• LO Stability: ±0.5 ppm (±5 kHz)
• Noise Figure: 0.8 dB
• Output Connector: F-type, 75 Ω
Security policy
Delivery policy
Return policy
NJR2845D is a low noise block downconverter for use on Ku-band of RF Frequency 11.2 to 11.7GHz, with PLL oscillator synchronized to a highly stable internal reference signal.
Frequency Organization
- RF Frequency: 11.2 to 11.7 GHz
- IF Frequency: 950 to 1,450 MHz
- LO Frequency: 10.25 GHz
Low Noise Performance
- Noise Figure (NF): 0.8 dB typ., 1.0 dB max.
LO Frequency Stability Line-up
- H-type: +/- 10 ppm (+/- 100 kHz typ.)
- S-type: +/- 3 ppm (+/- 30 kHz typ.)
- U-type: +/- 1 ppm (+/- 10 kHz typ.)
- V-type: +/- 0.5 ppm (+/- 5 kHz typ.)
Small Size & Light Weight
- Weight: F-type 210 g / N-type 240 g
Others
- RoHS Compliance
NJR2845DVF
- Type
- Single LNBs
- Frequency Band
- Ku-Band
- Frequency Range
- 11.20 – 11.70 GHz
- Output Band
- 950–1450 MHz
- LO Frequency
- 10.25 GHz
- LO Stability
- ±5 kHz
- Noise Figure
- 0.8 dB
- Typical Gain
- 57 dB
- Input Interface
- WR-75 waveguide grooved
- Output Connector
- F Type 75 Ohm
Specific References
Ku-band PLL LNB - Int. Ref.
• Input Band: 11.2–11.7 GHz
• LO Stability: ±0.5 ppm (±5 kHz)
• Noise Figure: 0.8 dB
• Output Connector: F-type, 75 Ω
